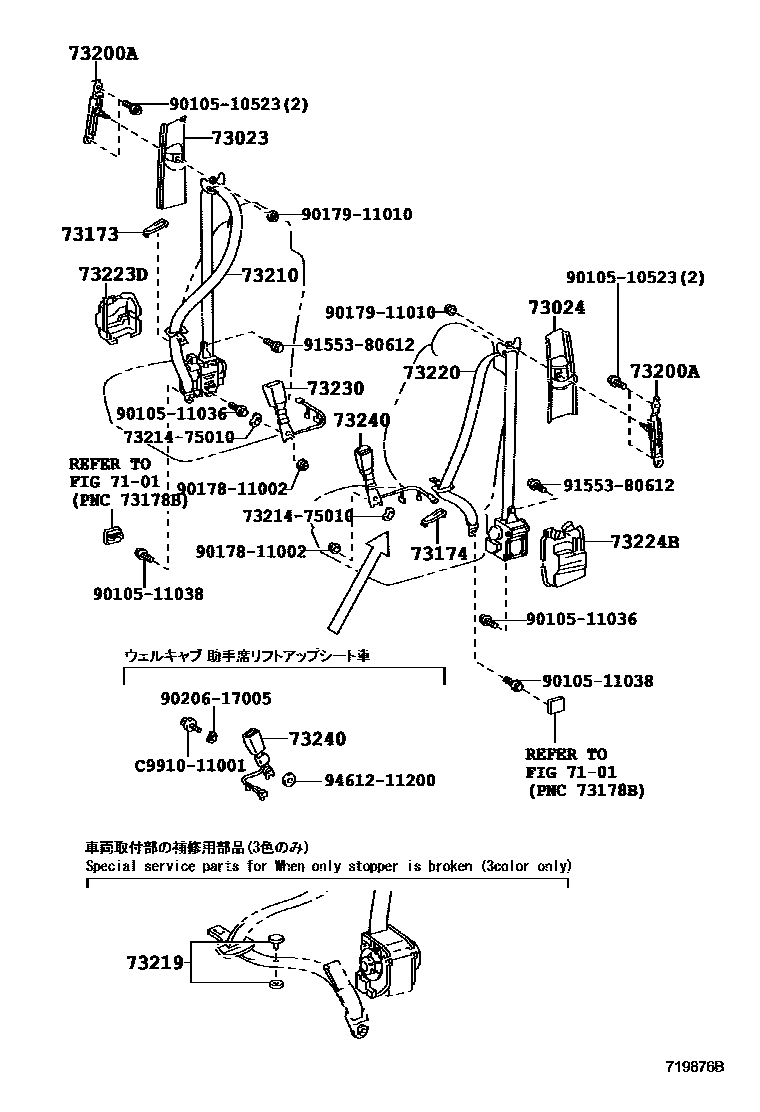

SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� ������� 0002 1�� �������

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53010-A2iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU200802-201212

SHELL,TRIM0#

main73023-53010-B1iGRS200,201,204,GWS204..ATH,HBD200802-201212

GRAY,TRIM1#

main73023-53010-B1iGRS200,201,204,GWS204..ATH,HBD200802-201212

GRAY,TRIM1#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53010-A2iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU200802-201212

SHELL,TRIM0#

main73024-53010-B1iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201212

GRAY,TRIM1#,4#

main73024-53010-B1iGRS200,201,204,GWS204..ATH,HBD200802-201212

GRAY,TRIM1#

73173COVER, FRONT SEAT BELT HOLE, RH

main73173-30070-A1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU200802-201212

SHELL,TRIM0#

main73173-30070-B0iGRS20#,GWS204..CBU200802-201212

GRAY,TRIM1#

main73173-30070-E0iGWS204201002-201212

main73173-30070-E0iGRS200,201,204,GWS204..ATH,HBD200802-201212

DK. BROWN,TRIM4#

main73173-30070-E0iGRS200,201,204..ATH201002-201212

main73173-30070-E0iGRS200,201,204..ATH201002-201212

main73173-30070-E0iGRS200,201,204..ATH201002-201212

73174COVER, FRONT SEAT BELT HOLE, LH

main73174-30070-A1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU200802-201212

SHELL,TRIM0#

main73174-30070-B0iGRS20#,GWS204..CBU200802-201212

GRAY,TRIM1#

main73174-30070-E0iGRS200,201,204..ATH201002-201212

main73174-30070-E0iGRS200,201,204..ATH201002-201212

main73174-30070-E0iGRS200,201,204..ATH201002-201212

main73174-30070-E0iGWS204200802-201212

DK. BROWN,TRIM4#

main73174-30070-E0iGWS204201002-201212

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-53010iGRS20#,GWS204..CBU200802-201212

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-30C50-A1iGWS204200805-201002

IVORY/SHELL/SHELL,TRIM0#

main73210-30C50-B2iGWS204200805-201002

GRAY/GRAY/GRAY,TRIM1#

main73210-30C50-B3iGWS204200805-201002

BLACK/DK.BROWN/GRAY,TRIM4#

main73210-30C60-A1iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201212

IVORY/SHELL/SHELL,TRIM0#

main73210-30C60-B2iGRS20#..CBU200802-201212

GRAY/GRAY/GRAY,TRIM1#

main73210-30C60-B3iGRS200,201,204..ATH200802-201002

BLACK/DK.BROWN/GRAY,TRIM4#

main73210-30C60-B4iGWS204201002-201212

BLACK/DK.BROWN/GRAY,TRIM4#

main73210-30C60-B4iGRS200,201,204..ATH201002-201212

73219STOPPER, TONGUE PLATE

main73219-33010iGRS20#,GWS204..CBU201002-201212

main73219-33020iGRS20#,GWS204..CBU201002-201212

main73219-33030iGRS20#,GWS204..CBU201002-201212

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-30C10-A1iGWS204200805-201002

IVORY/SHELL/SHELL,TRIM0#

main73220-30C10-B2iGWS204200805-201002

GRAY/GRAY/GRAY,TRIM1#

main73220-30C10-B3iGWS204200805-201002

BLACK/DK.BROWN/GRAY,TRIM4#

main73220-30C20-A1iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201212

IVORY/SHELL/SHELL,TRIM0#

main73220-30C20-B2iGRS20#,GWS204..CBU200802-201212

GRAY/GRAY/GRAY,TRIM1#

main73220-30C20-B3iGRS200,201,204..ATH200802-201002

BLACK/DK.BROWN/GRAY,TRIM4#

main73220-30C20-B4iGWS204201002-201212

BLACK/BK.BROWN/GRAY,TRIM4#

main73220-30C20-B4iGWS204201002-201212

73223COVER, SEAT BELT RETRACTOR

main73223-30140iGRS20#,GWS204..CBU200802-201212

73223DCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-30130iGRS20#,GWS204..CBU200802-201212

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-30100iGRS20#,GWS204..CBU200802-201212

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-30890-A1iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

main73230-30890-B1iGRS200,201,GWS204..CBU201002-201212

GRAY,TRIM1#

main73230-30890-E0iGRS200,201..ATH201002-201212

DK. BROWN,TRIM4#

main73230-30A40-A0iGRS200..ROY..CBU201002-201212

main73230-30A40-A0iGRS200..ROY..CBU201002-201212

main73230-30A40-A0iGRS200..ROY..CBU201002-201212

main73230-30A40-A0iGRS200..ROY..CBU201002-201212

main73230-30A40-A0iGRS200..ROY..CBU201002-201212

main73230-30A40-A0iGRS200..ROY..CBU201002-201212

main73230-30A40-A0iGRS200..ROY..CBU201002-201212

main73230-30A40-A0iGRS200,201..ROY..CBU200802-201212

SHELL,TRIM0#

main73230-30A40-A0iGRS200,201..ROY..CBU201002-201212

main73230-30A40-B0iGWS204201002-201212

main73230-30A40-B0iGRS20#,GWS204..CBU200802-201212

GRAY,TRIM1#

main73230-30A40-B0iGRS202,203,204..CBU201002-201212

main73230-30A40-B0iGRS202,203,204..CBU201002-201212

main73230-30A40-B0iGRS202,203,204..CBU201002-201212

main73230-30A40-B0iGRS202,203,204..CBU201002-201212

main73230-30A40-B0iGRS202,203,204..CBU201002-201212

main73230-30A40-B0iGRS202,203,204..CBU201002-201212

main73230-30A40-E0iGWS204201002-201212

main73230-30A40-E0iGWS204201002-201212

main73230-30A40-E0iGWS204201002-201212

main73230-30A40-E0iGWS204200802-201212

DK. BROWN,TRIM4#

main73230-30A40-E0iGWS204201002-201212

main73230-30A40-E0iGWS204201002-201212

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-30A00-A1iGRS200,201,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

main73230-30A00-B1iGRS200,201,GWS204..CBU201002-201212

GRAY,TRIM1#

main73230-30A00-E0iGRS200,201..ATH201002-201212

DK. BROWN,TRIM4#

main73230-30A60-A0iGWS204201002-201212

main73230-30A60-A0iGWS204201002-201212

main73230-30A60-A0iGWS204201002-201212

main73230-30A60-A0iGWS204201002-201212

main73230-30A60-A0iGWS204201002-201212

main73230-30A60-A0iGWS204200802-201212

SHELL,TRIM0#

main73230-30A60-A0iGWS204201002-201212

main73230-30A60-B0iGRS202,203,204..CBU201002-201212

main73230-30A60-B0iGRS20#,GWS204..CBU200802-201212

GRAY,TRIM1#

main73230-30A60-B0iGRS202,203,204..CBU201002-201212

main73230-30A60-B0iGRS202,203,204..CBU201002-201212

main73230-30A60-B0iGRS202,203,204..CBU201002-201212

main73230-30A60-B0iGRS202,203,204..CBU201002-201212

main73230-30A60-B0iGRS202,203,204..CBU201002-201212

main73230-30A60-B0iGRS202,203,204..CBU201002-201212

main73230-30A60-E0iGWS204201002-201212

main73230-30A60-E0iGWS204201002-201212

main73230-30A60-E0iGWS204201002-201212

main73230-30A60-E0iGWS204200802-201212

DK. BROWN,TRIM4#

main73230-30A60-E0iGWS204201002-201212

main73230-30A60-E0iGWS204201002-201212

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511036

main90105-11036

9010511038

main90105-11038

9017811002

main90178-11002

9017911010

main90179-11010

9020617005

main90206-17005

9155380612

main91553-80612

9461211200

main94612-11200

C991011001

mainC9910-11001

24 parts on this diagram · 2 diagrams in section
