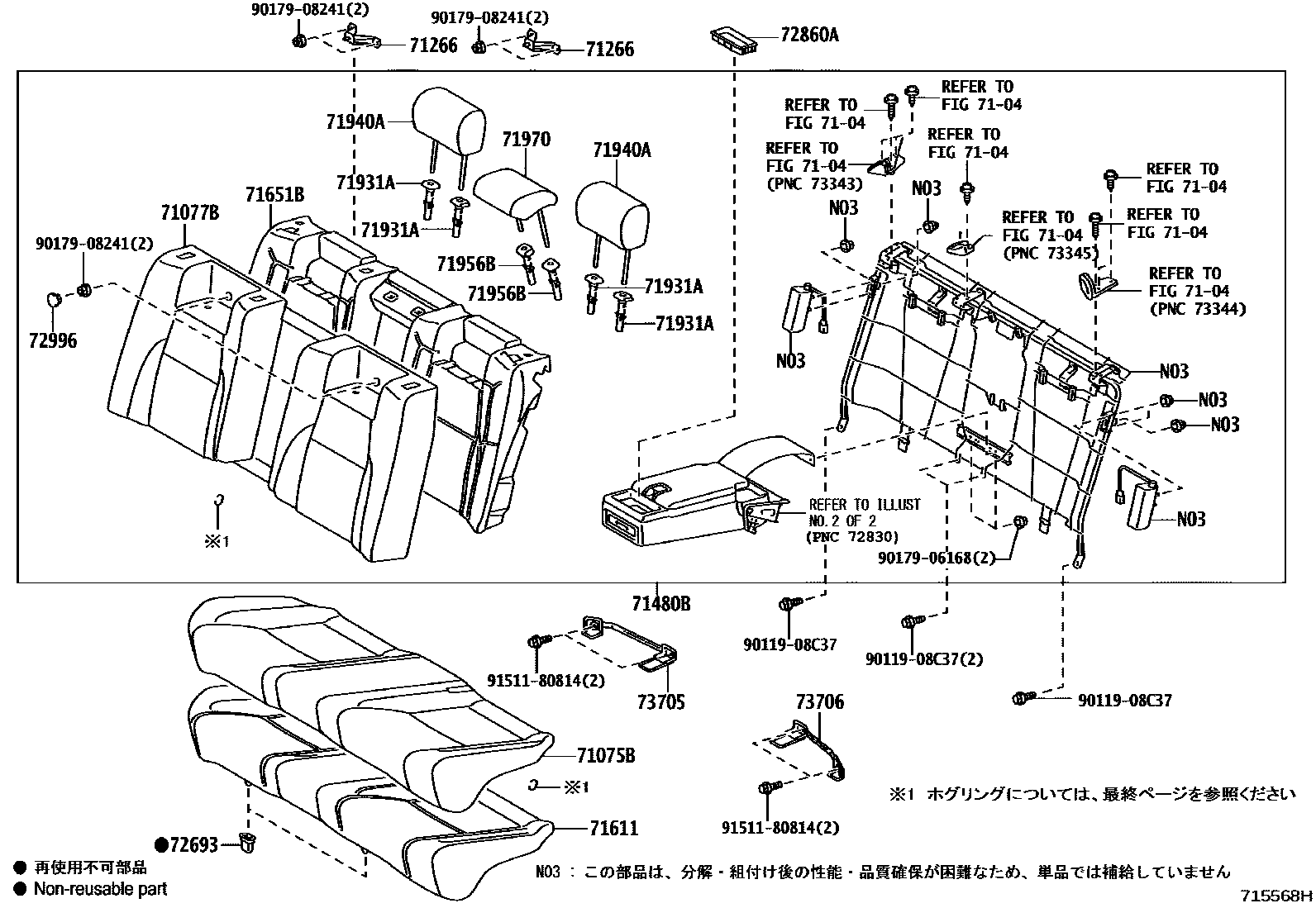

REAR SEAT & SEAT TRACK

0001 1����� ��� 0003 1������� 0004 1�������(�������� ��) 0005 1������ 0006 1�������

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-30B90-A0iGRS200,201,202,203..(ROY,ROYG)..CBU200802-200904

SHELL,TRIM0#

main71075-30B90-B0iGRS200,201,202,203..(ROY,ROYG)..CBU200802-200904

GRAY,TRIM1#

main71075-30C00-B0iGRS200,201,204..ATH200802-200904

GRAY,TRIM1#

main71075-30C00-E0iGRS200,201,204..ATH200802-200904

DK.BROWN,TRIM4#

main71075-30C10-E1iGWS204200805-200904

DK.BROWN,TRIM4#

main71075-30D50-A0iGRS200,201,202,203..(ROY,ROYG)..CBU200904-201002

SHELL,TRIM0#

main71075-30D50-B0iGRS200,201,202,203..(ROY,ROYG)..CBU200904-201002

GRAY,TRIM1#

main71075-30D60-B0iGRS200,201,204..ATH; GWS204200904-201002

main71075-30D60-E0iGRS200,201,204..ATH200904-201002

DK.BROWN,TRIM4#

main71075-30D70-E0iGRS204; GWS204200904-201002

main71075-30E10-A0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

SHELL,TRIM0#

main71075-30E10-B0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

GRAY,TRIM1#

main71075-30E20-B0iGRS200,201,204..ATH201002-201212

GRAY,TRIM1#

main71075-30E20-E0iGRS200,201,204..ATH201002-201212

DK. BROWN,TRIM4#

main71075-30C00-A0iGWS204200805-200904

main71075-30C10-A2iGRS202,203..ROY..CBU; GRS202..ROY..CBU; GRS202..ROYG200802-200904

main71075-30C80-E1iGRS200,201..ATH200802-200904

main71075-30C90-A0iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU201203-201212

main71075-30D60-A0iGWS204200904-201002

main71075-30D70-A0iGRS202,203..ROY..CBU; GRS202..ROYG; GWS204201002-201012

main71075-30D70-A2iGRS202,203..ROY..CBU; GRS202..ROYG; GWS204201012-201212

main71075-30D70-E1iGRS204; GWS204201012-201212

main71075-30D80-A0iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU201111-201203

main71075-30D80-A2iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU201111-201203

main71075-30D80-E0iGRS200,201..ATH; GRS204200904-201002

main71075-30D80-E1iGRS200,201..ATH; GRS204201012-201212

main71075-30D80-E2iGRS200,201..ATH201203-201212

main71075-30D80-E4iGRS200,201..ATH201111-201203

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-30C40-A2iGRS200,201,202,203..ROY..CBU200802-201002

SHELL,TRIM0#

main71077-30C40-B1iGRS200,201,202,203..ROY..CBU200802-201002

GRAY,TRIM1#

main71077-30C50-B1iGRS200,201,204..ATH200802-201002

GRAY,TRIM1#

main71077-30C50-E1iGRS200,201,204..ATH200802-201002

DK.BROWN,TRIM4#

main71077-30E30-A0iGRS200,201,202,203,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

main71077-30E30-B0iGRS200,201,202,203,GWS204..(HBD,ROY)..CBU201002-201212

GRAY,TRIM1#

main71077-30E40-B0iGRS200,201,204..ATH201002-201212

GRAY,TRIM1#

main71077-30E40-E0iGRS200,201,204..ATH201002-201212

DK. BROWN,TRIM4#

main71077-30C50-A0iGWS204200907-201002

main71077-30D20-E1iGRS200,201..ATH; GRS204200904-201002

main71077-30J40-A0iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU201111-201203

main71077-30J40-A2iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU201111-201203

main71077-30J40-E0iGRS200,201..ATH201203-201212

main71077-30J40-E3iGRS200,201..ATH201111-201203

main71077-30K50-A0iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU201203-201212

71266GUSSET, REAR SEATBACK FRAME

main71266-30130iGRS20#..ATH,ROY; GRS200,201,202,203..ROY; GRS202,GWS204..HBD,ROYG200802-201002

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-30C50-A5iGRS200,201,202,203..ROY..CBU200802-201002

SHELL,TRIM0#

main71480-30C50-B3iGRS200,201,202,203..ROY..CBU200802-201002

GRAY,TRIM1#

main71480-30C60-B3iGRS200,201,204..ATH200802-201002

GRAY,TRIM1#

main71480-30C60-E4iGRS200,201,204..ATH200802-201002

DK.BROWN,TRIM4#

main71480-30F80-A0iGRS200,201,202,203..ROY..CBU201002-201212

SHELL,TRIM0#

main71480-30F80-B0iGRS200,201,202,203..ROY..CBU201002-201212

GRAY,TRIM1#

main71480-30F90-B1iGRS200,201,204..ATH201002-201212

GRAY,TRIM1#

main71480-30F90-E1iGRS200,201,204..ATH201002-201212

DK.BROWN,TRIM4#

main71480-30E30-E1iGRS200,201..ATH; GRS204200904-201002

main71480-30G00-E1iGRS200,201..ATH; GRS204201002-201012

main71480-30G00-E3iGRS200,201..ATH; GRS204201012-201212

main71480-30G40-A0supersedes 71480-30G10-A0iGWS204200907-201002

main71480-30G40-B0supersedes 71480-30G10-B0iGWS204200907-201002

main71480-30G60-A0iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU200904-201002

main71480-30G60-B0iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU200904-201002

main71480-30G70-B0iGRS200,201..ATH; GRS204200904-201002

main71480-30G70-E0iGRS200,201..ATH; GRS204200904-201002

main71480-30G80-E0iGRS200,201..ATH; GRS204200904-201002

main71480-30M70-A0iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU201111-201203

main71480-30M70-A2iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU201111-201203

main71480-30M70-E0iGRS200,201..ATH201012-201111

main71480-30M70-E3iGRS200,201..ATH201111-201203

main71480-30P50-A0iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU201203-201212

71611PAD, REAR SEAT CUSHION

main71503-30200iGRS20#,GWS204..CBU200802-200904

main71503-30250iGRS20#,GWS204..CBU201002-201212

main71503-30230iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU201203-201212

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-30A40iGRS20#..(ATH,ROY)..CBU200802-200811

main71651-30A41iGRS20#..(ATH,ROY)..CBU200811-201002

71931ASUPPORT, REAR SEAT HEADREST

main71930-44020-A2×2iGRS200,201,202,203..ROY..CBU; GRS200..ROY..CBU; GRS202,203..ROY..CBU; GRS202..ROY..CBU; GRS202..ROYG200802-201002

main71930-44020-B2×3iGRS20#,GWS204..(ATH,HBD,ROY)..CBU; GRS200,201..ROY..CBU; GRS200..ROY..CBU; GRS202,203..ROY..CBU; GRS202..ROYG; GWS204201002-201212

main71930-44020-E3×3supersedes 71931-47010-E7iGRS200,201,204..ATH; GRS204; GWS204201002-201212

main71931-47010-A7×2iGRS200,201,202,203..ROY..CBU; GRS200..ROY..CBU; GRS202,203..ROY..CBU; GRS202..ROY..CBU; GRS202..ROYG200802-201002

main71931-47010-E7×3iGRS200,201,204..ATH; GRS204; GWS204201002-201212

main71931-47010-P4×2iGRS20#..(ATH,ROY)..CBU; GRS200..ROY..CBU; GRS202,203..ROY..CBU; GRS202..ROYG200802-201002

71940AHEADREST ASSY, REAR SEAT

main71940-30B10-A2×2iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

SHELL,TRIM0#

main71940-30B10-B1×2iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

GRAY,TRIM1#

main71940-30B30-B1×2iGRS200,201,204..ATH200802-201002

GRAY,TRIM1#

main71940-30B30-E1×2iGRS200,201,204..ATH200802-201002

DK.BROWN,TRIM4#

main71940-30C40-A0×2iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

SHELL,TRIM0#

main71940-30C40-B0×2iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

GRAY,TRIM1#

main71940-30C50-B1×2iGRS200,201,204..ATH201002-201212

GRAY,TRIM1#

main71940-30C50-E1×2iGRS200,201,204..ATH201002-201212

DK. BROWN,TRIM4#

main71940-30B20-A0×2iGRS202,203..ROY..CBU; GRS202..ROYG; GWS204201002-201012

main71940-30B20-A3×2iGRS202,203..ROY..CBU; GRS202..ROYG; GWS204201012-201212

main71940-30B20-C2iGRS200,201..ATH201111-201203

main71940-30B20-E0×2iGRS200,201..ATH; GRS204200904-201002

main71940-30B20-E2×2iGRS200,201..ATH; GRS204; GWS204201012-201212

main71940-30B20-E3iGRS200,201..ATH201203-201212

main71940-30B30-A1×2iGWS204200805-201002

main71940-30B50-A0iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU201203-201212

71956BSUPPORT, REAR SEAT HEADREST

main71955-30010-A0iGRS200..ROY; GRS202,203..ROY; GRS202..ROY; GRS202..ROYG200802-201002

main71955-30010-B0iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GRS202,203..ROY..CBU; GRS202..ROYG; GWS204201002-201212

main71956-30030-A0iGRS200..ROY; GRS202,203..ROY; GRS202..ROY; GRS202..ROYG200802-201002

main71956-30030-B0iGRS200..ROY; GRS202,203..ROY; GRS202..ROYG200802-201002

main71955-30010-E0iGRS204200904-201002

main71956-30030-E0iGRS204200904-201002

71970HEADREST ASSY, REAR SEAT

main71960-30310-A0iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

SHELL,TRIM0#

main71960-30310-B0iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

GRAY,TRIM1#

main71960-30310-B1iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GRS202,203..ROY..CBU; GRS202..ROYG; GWS204201002-201212

main71960-30320-B1iGRS200,201,204..ATH200802-201002

GRAY,TRIM1#

main71960-30320-B2iGRS200,201,204..ATH201002-201212

GRAY,TRIM1#

main71960-30320-E1iGRS200,201,204..ATH200802-201002

DK.BROWN,TRIM4#

main71960-30320-E3iGRS200,201,204..ATH201002-201212

DK.BROWN,TRIM4#

main71960-30490-A0iGRS200,201,202,203,GWS204..(HBD,ROY)..CBU201002-201212

SHELL,TRIM0#

main71960-30490-B0iGRS200,201,202,203,GWS204..(HBD,ROY)..CBU201002-201212

GRAY,TRIM1#

main71960-30310-A2iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GRS202,203..ROY..CBU; GRS202..ROYG; GWS204201002-201212

main71960-30320-A1iGWS204200805-201002

main71960-30330-A0supersedes 71960-30310-A2iGRS202,203..ROY..CBU; GRS202..ROY..CBU; GRS202..ROYG200802-201002

main71960-30330-A4iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU201111-201203

main71960-30330-C2iGRS200,201..ATH201203-201212

main71960-30330-E0iGRS200,201..ATH; GRS204200904-201002

main71960-30330-E2iGRS200,201..ATH; GRS204201012-201212

main71960-30330-E3iGRS200,201..ATH201111-201203

main71960-30350-A1iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU201203-201212

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iGRS20#,GWS204..CBU201002-201212

72860BOX ASSY, REAR SEAT CENTER ARMREST

main72860-30450-A0iGRS200,201,202,203..ROY..CBU200802-201002

SHELL,TRIM0#

main72860-30450-B0iGRS200,201,202,203..ROY..CBU200802-201002

GRAY,TRIM1#

main72860-30460-B0iGRS200,201,204..ATH200802-201002

GRAY,TRIM1#

main72860-30460-E0iGRS200,201,204..ATH200802-201002

DK. BROWN,TRIM4#

main72860-30480-B1iGRS200..ROY..CBU; GRS202,203..ROY..CBU; GRS202..ROYG200802-201002

main72860-30610-A0iGRS200,201,202,203..ROY..CBU201002-201212

SHELL,TRIM0#

main72860-30610-B0iGRS200,201,202,203..ROY..CBU201002-201212

GRAY,TRIM1#

main72860-30620-B0iGRS200,201,204..ATH201002-201212

GRAY,TRIM1#

main72860-30620-E0iGRS200,201,204..ATH201002-201212

DK.BROWN,TRIM4#

main72860-30680-B0iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GRS202,203..ROY..CBU; GRS202..ROYG201002-201212

main72860-30480-A1iGRS200..ROY..CBU; GRS202,203..ROY..CBU; GRS202..ROYG200802-201002

main72860-30490-A1supersedes 72860-30680-A0iGRS202,203..ROY..CBU; GRS202..ROY..CBU; GRS202..ROYG200802-201002

main72860-30490-E0iGRS204200904-201002

main72860-30510-E0iGRS200,201..ATH; GRS204200904-201002

main72860-30520-A0supersedes 72860-30640-A0iGWS204200805-201002

main72860-30520-B0supersedes 72860-30640-B0iGWS204200805-201002

main72860-30590-A0iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU200904-201002

main72860-30590-B0iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU200904-201002

main72860-30600-A0iGRS202,203..ROY..CBU200904-201002

main72860-30600-E0iGRS204200904-201002

main72860-30630-A1iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU201111-201203

main72860-30630-E0iGRS200,201..ATH; GRS204201002-201012

main72860-30630-E1iGRS200,201..ATH; GRS204201012-201212

main72860-30630-E2iGRS200,201..ATH201203-201212

main72860-30630-E4iGRS200,201..ATH201111-201203

main72860-30650-A0supersedes 72860-30680-A0iGRS202,203..ROY..CBU; GRS202..ROYG; GWS204201002-201212

main72860-30650-E0iGRS204201002-201212

main72860-30650-E1supersedes 72860-30530-E0iGWS204201002-201212

main72860-30660-A0supersedes 72860-30640-A0iGWS204201002-201212

main72860-30660-B0supersedes 72860-30640-B0iGWS204201002-201212

main72860-30670-A0supersedes 72860-30640-A0iGWS204201002-201212

main72860-30670-E0supersedes 72860-30530-E0iGWS204201002-201212

main72860-30680-A0iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GRS202,203..ROY..CBU; GRS202..ROYG201002-201212

main72860-30690-A0supersedes 72860-30640-A0iGWS204200907-201002

main72860-30690-B0supersedes 72860-30640-B0iGWS204200907-201002

main72860-30700-A0iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU200904-201002

main72860-30700-B0iGRS200,201..ROY..CBU; GRS202,203..ROY..CBU200904-201002

main72860-30710-B0iGRS200,201..ATH; GRS204200904-201002

main72860-30710-E0iGRS200,201..ATH; GRS204200904-201002

main72860-30720-E0iGRS200,201..ATH; GRS204200904-201002

main72860-30850-A0iGRS200,201..ROY..CBU201203-201204

72860ABOX ASSY, REAR SEAT CENTER ARMREST, NO.2

main72860-30500iGRS20#..ATH,ROY200802-201002

72996COVER, REAR SEATBACK, RH

main72996-50100-A3×5iGRS200,201,202,203..ROY; GRS202,GWS204..HBD,ROYG200802-201002

main72996-50100-B1×2iGRS20#,GWS204..(ATH,HBD,ROY)..CBU; GRS200,201,202,203,GWS204..(HBD,ROY)..CBU; GRS202..ROYG201002-201212

main72996-50100-E1×2iGRS200,201,204,GWS204..ATH,HBD; GRS204; GWS204201002-201212

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-30030iGRS20#,GWS204..CBU201002-201212

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-30030iGRS20#,GWS204200802-201002

9011908C37

main90119-08C37

9017906168

main90179-06168

9017908241

main90179-08241

9151180814

main91511-80814

21 parts on this diagram · 5 diagrams in section
