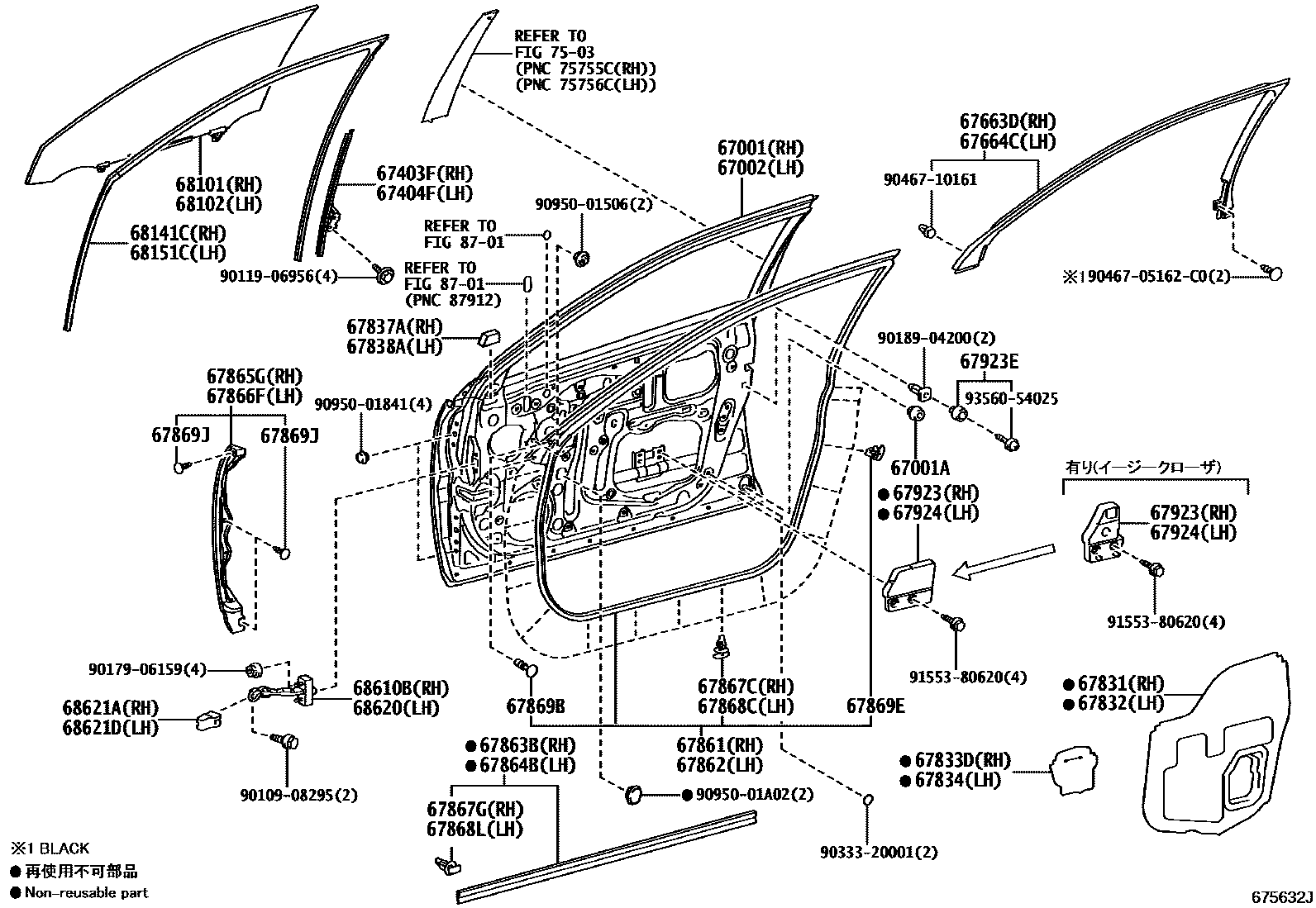

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-30890iGRS20#,GWS204200802-201002

main67001-30891iGRS20#,GWS204..CBU201011-201109

main67001-30892iGRS20#,GWS204..CBU201110-201212

67001ACUSHION, FRONT DOOR PANEL

main90541-09069×2iGRS20#,GWS204..CBU201002-201212

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-30A50iGRS20#,GWS204200802-201002

main67002-30A51iGRS20#,GWS204..CBU201011-201109

main67002-30A52iGRS20#,GWS204..CBU201110-201212

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-30190iGRS20#,GWS204..CBU201002-201212

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-30190iGRS20#,GWS204200802-201002

67663DGARNISH, DOOR FRAME, RH

main67663-30070iGRS20#,GWS204200802-201002

67664CGARNISH, DOOR FRAME, LH

main67664-30070iGRS20#,GWS204..CBU201002-201212

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-30430iGRS20#,GWS204200802-201002

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-30280iGRS20#,GWS204200802-201002

67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67833-30090iGRS20#,GWS204200802-201002

67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67834-30030iGRS20#,GWS204200802-201002

67837ASEAL, FRONT DOOR VENT, RH

main67837-51010iGRS20#,GWS204200802-201002

67838ASEAL, FRONT DOOR VENT, LH

main67837-51010iGRS20#,GWS204200802-201002

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-30300iGRS20#,GWS204200802-201002

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-30300iGRS20#,GWS204200802-201002

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-30150iGRS20#,GWS204200802-201002

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-30130iGRS20#,GWS204200802-201002

67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-30050iGRS20#,GWS204200802-201002

67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-30050iGRS20#,GWS204200802-201002

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×15iGRS20#,GWS204200802-201002

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52010×8iGRS20#,GWS204200802-201002

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×15iGRS20#,GWS204200802-201002

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52030×8iGRS20#,GWS204200802-201002

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-22010×4iGRS20#,GWS204200802-201002

67869ECLIP, FRONT DOOR WEATHERSTRIP

main90467-04034×2iGRS20#,GWS204200802-201002

67869JCLIP, FRONT DOOR WEATHERSTRIP

main90467-06195×6iGRS20#,GWS204200802-201002

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-30160iGRS202..ROY; GRS203;GRS202,204,GWS204..ATH,HBD,ROYG200802-201002

main67923-30161iGRS202..ROYG; GRS203..CBU; GRS204; GWS204201011-201212

main67923-30170iGRS20#,GWS204..(ATH,HBD,ROY)..CBU201002-201011

main67923-30171iGRS20#,GWS204..(ATH,HBD,ROY)..CBU201011-201212

67923ECUSHION, FRONT DOOR STIFFENER, NO.1

main67923-24030×2iGRS20#,GWS204200802-201002

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-30090iGRS202..ROYG; GRS203..CBU; GRS204; GWS204201002-201011

main67924-30091iGRS202..ROYG; GRS203..CBU; GRS204; GWS204201011-201212

main67924-30100iGRS20#,GWS204..(ATH,HBD,ROY)..CBU201002-201011

main67924-30101iGRS20#,GWS204..(ATH,HBD,ROY)..CBU201011-201212

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-30790iGRS20#,GWS204200802-200910

main68101-30791iGRS20#,GWS204..CBU201002-201212

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-30790iGRS20#,GWS204200802-200910

main68102-30791iGRS20#,GWS204..CBU201002-201212

68141CRUN, FRONT DOOR GLASS, RH

main68141-30360iGRS20#,GWS204..CBU201002-201212

68151CRUN, FRONT DOOR GLASS, LH

main68151-30200iGRS20#,GWS204200802-201002

68610BCHECK ASSY, FRONT DOOR, RH

main68610-30190iGRS20#,GWS204..CBU201002-201003

main68610-30191iGRS20#,GWS204..CBU201003-201212

68620CHECK ASSY, FRONT DOOR, LH

main68620-30110iGRS20#,GWS204..CBU201002-201003

main68620-30111iGRS20#,GWS204..CBU201003-201212

68621ACOVER, FRONT DOOR CHECK, RH

main68621-53010iGRS20#,GWS204200802-201002

68621DCOVER, FRONT DOOR CHECK, LH

main68622-53010iGRS20#,GWS204200802-201002

7503SIDE MOULDING

→ Go to FIG 75-03

8701MIRROR

→ Go to FIG 87-01

9010908295

main90109-08295

9011906956

main90119-06956

9017906159

main90179-06159

9018904200

main90189-04200

9033320001

main90333-20001

9046705162C0

main90467-05162C0

9046710161

main90467-10161

9095001506

main90950-01506

9095001841

main90950-01841

9095001A02

main90950-01A02

9155380620

main91553-80620

9356054025

main93560-54025

51 parts on this diagram · 2 diagrams in section
