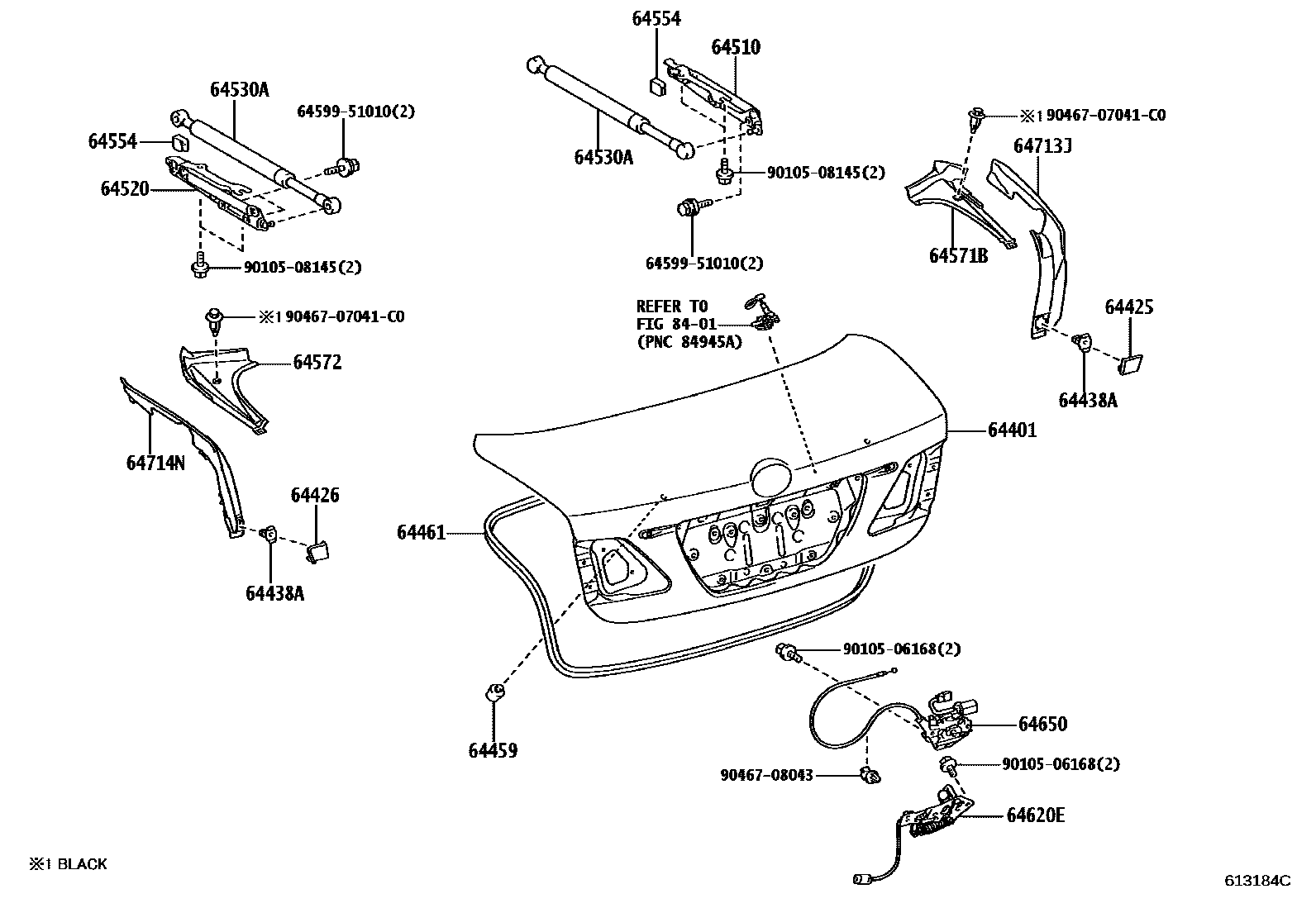

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64425PLUG, LUGGAGE COMPARTMENT DOOR, RH
64426PLUG, LUGGAGE COMPARTMENT DOOR, LH
64438ACLAMP, LUGGAGE ROOM CARPET
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR
64554STOPPER, LUGGAGE DOOR BALANCER
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64650CLOSER ASSY, LUGGAGE DOOR
64713JCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH
64714NCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH
8401SWITCH & RELAY & COMPUTER
6459951010BOLT, LUGGAGE DOOR HINGE
main64599-51010
9010506168
main90105-06168
9010508145
main90105-08145
9046707041C0
main90467-07041C0
9046708043
main90467-08043
22 parts on this diagram · 1 diagram in section
