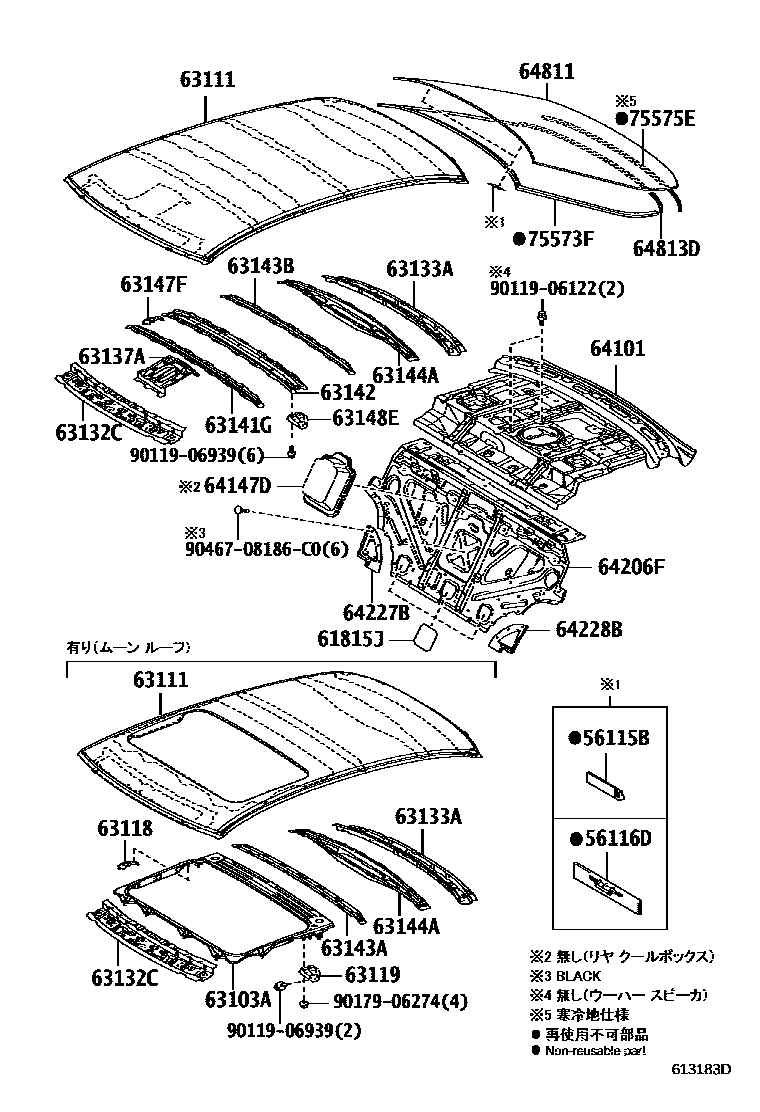

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1��(������)

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30110iGRS20#,GWS204200802-201002

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iGRS20#,GWS204..CBU201002-201212

61815JCOVER, ROOF SIDE, INNER UPPER

main61815-30120×3iGRS20#,GWS204..CBU201002-201212

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63142-30902iGRS200,201; GRS202,203,204..ATH,ROY200802-200904

63111PANEL, ROOF

main63111-30690iGRS200,201..CBU; GRS200..ROY..CBU201002-201212

main63111-30700iGRS20#..ATH,ROY200802-200904

main63111-30710supersedes 63111-30690iGRS200,201; GRS202,GWS204..HBD,ROYG200802-201002

main63111-30720supersedes 63111-30710iGRS200,201; GRS202,GWS204..HBD,ROYG200802-201002

main63111-30770supersedes 63111-30690iGRS200,201..CBU; GRS202,203,204,GWS204..CBU201002-201212

main63111-30780iGRS200,201..ATH; GRS200,201..ROY..CBU; GRS202,203,204,GWS204..CBU201002-201212

63118SUPPORT, ROOF PANEL, RH

main63118-30130iGRS200,201; GRS202,203,204..ATH,ROY200802-200904

63119SUPPORT, ROOF PANEL, LH

main63118-30130iGRS200,201; GRS202,203,204,GWS204200802-201002

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-30310iGRS20#,GWS204..CBU201002-201212

63133AFRAME, BACK WINDOW, UPPER

main63133-30290iGRS20#,GWS204..CBU201002-201212

63137ABRACKET, DOME LAMP, NO.1

main63137-30250iGRS20#,GWS204..CBU201002-201212

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-30270iGRS20#,GWS204200802-201002

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-30220iGRS20#,GWS204200802-201002

63143AREINFORCEMENT, ROOF PANEL

main63148-30140iGRS200,201; GRS202,203,204,GWS204200802-201002

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-30200iGRS20#,GWS204..CBU201002-201212

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63128-30060iGRS20#,GWS204200802-201002

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63146-30120iGRS20#,GWS204..CBU201002-201212

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-30050iGRS20#,GWS204200802-201002

64101PANEL SUB-ASSY, UPPER BACK

main64101-30880iGRS20#,GWS204200802-201002

64147DPLATE, BACK PANEL CORNER, UPPER

main64147-30020iGRS204; GWS204201002-201212

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-30080iGRS20#..ATH,ROY200802-201002

main64206-30090iGRS200,201,202,203,GWS204..(HBD,ROY)..CBU; GRS202..ROYG; GRS204201002-201212

64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1

main64227-30140iGRS20#,GWS204200802-201002

64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2

main64228-30120iGRS20#,GWS204200802-201002

64811GLASS, BACK WINDOW

main64801-30914iGRS202,203,204,GWS204200802-200904

main64801-30913iGRS200,201,202,203..ROY,ROYG; GRS204,GWS204200802-200904

main64801-30915iGRS200,201200904-201002

main64801-30917iGRS200,201; GRS202,203,204,GWS204200904-201002

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-30220iGRS20#,GWS204200802-201002

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-30380iGRS20#,GWS204200802-200901

main75573-30381iGRS20#,GWS204200902-201002

75575EMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-30300iGRS200,201,202,203..ROY,ROYG; GRS204,GWS204200808-200904

9011906122

main90119-06122

9011906939

main90119-06939

9017906274

main90179-06274

9046708186C0

main90467-08186C0

30 parts on this diagram · 2 diagrams in section
