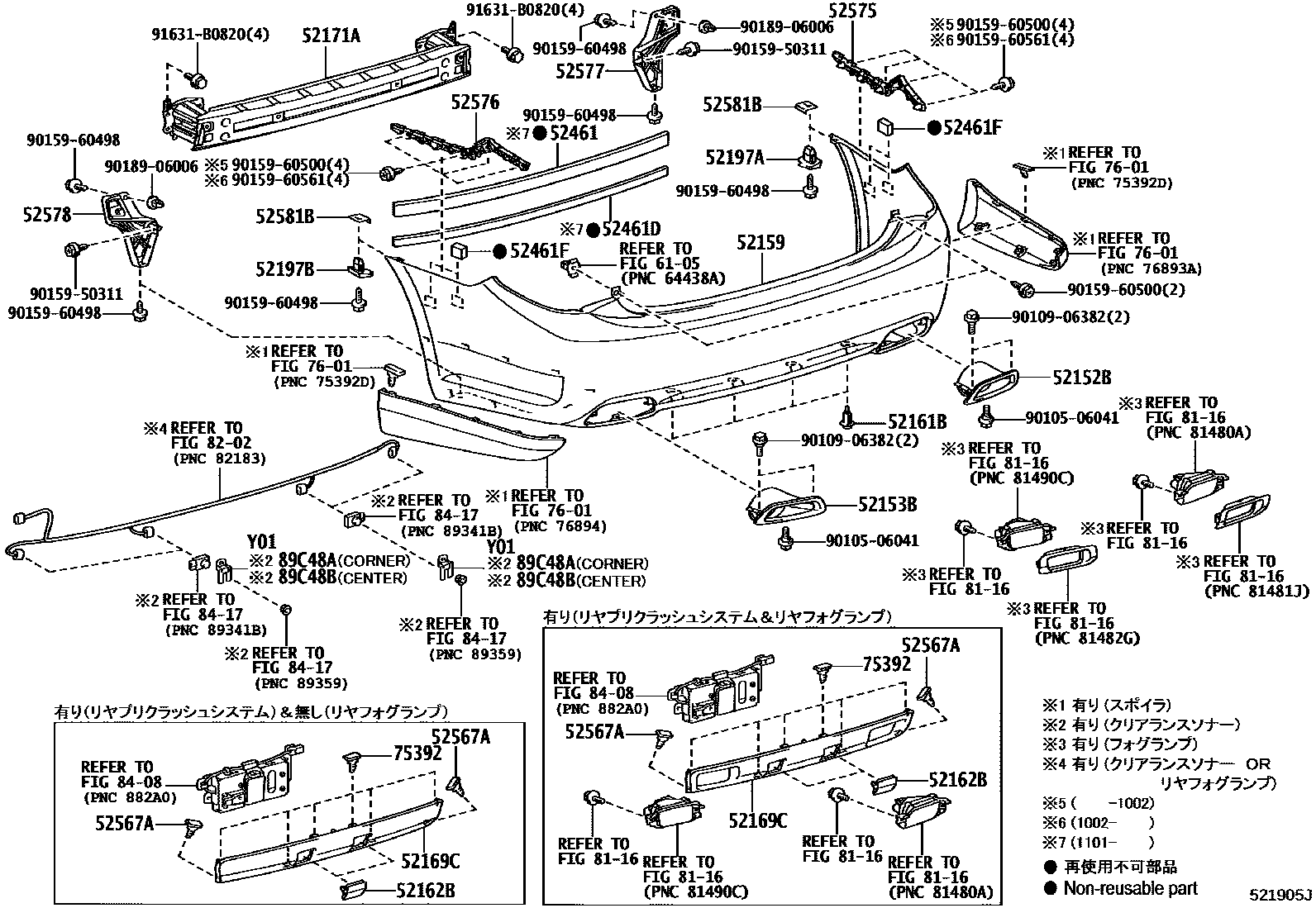

REAR BUMPER & BUMPER STAY

52152BEXTENSION, REAR BUMPER, RH

main52106-30100supersedes 52106-30130iGRS20#..CBU200802-201002

52153BEXTENSION, REAR BUMPER, LH

main52107-30120supersedes 52107-30150iGRS20#..CBU200802-201002

52159COVER, REAR BUMPER

main52159-30380-A1supersedes 52159-30450-A0iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

WHITE PEARL CS.,062

main52159-30380-B0supersedes 52159-30450-B0iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

SILVER ME.,1F7

main52159-30380-B1supersedes 52159-30450-B1iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

PREMIUM SILVER PEARL,1F3

main52159-30380-C0supersedes 52159-30450-C0iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

BLACK,202

main52159-30380-G0iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

DK.GREEN MC.,6V4

main52159-30380-J0supersedes 52159-30450-J0iGRS200,201,202,203..(ROY,ROYG)..CBU200802-201002

DK.BLUE MC.,8S6

main52159-30450-G0iGRS200,201,204..ATH200802-201002

DK.GREEN MC.,6V4

main52159-30380-D0iGWS204200805-200904

main52159-30380-J1iGWS204200904-201002

main52159-30390-A1iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GWS204200904-201002

main52159-30390-A2iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GRS202,203..ROY..CBU200904-201002

main52159-30390-B0iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GWS204200904-201002

main52159-30390-B1iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GWS204200904-201002

main52159-30390-C0iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GWS204200904-201002

main52159-30390-D0iGRS202,203..CBU200802-201002

main52159-30390-F0supersedes 52159-30381-F0iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201101

main52159-30390-G0iGRS200,201..ROY..CBU; GRS200..ROY..CBU200904-201002

main52159-30390-J0iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GWS204200904-201002

main52159-30390-J1supersedes 52159-30450-J1iGWS204201011-201101

main52159-30391-A1supersedes 52159-30381-A1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201101-201212

main52159-30391-B0supersedes 52159-30381-B0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201101-201212

main52159-30391-B1supersedes 52159-30381-B1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201101-201212

main52159-30391-C0supersedes 52159-30381-C0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201101-201212

main52159-30391-D0supersedes 52159-30381-D0iGRS200,201,202,203..(ROY,ROYG)..CBU201101-201212

main52159-30391-F0supersedes 52159-30381-F0iGRS200,201,202,203..(ROY,ROYG)..CBU201101-201212

main52159-30391-J0supersedes 52159-30381-J0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201101-201212

main52159-30391-J1supersedes 52159-30450-J1iGWS204201101-201212

main52159-30440-A1iGRS202,GWS204..HBD,ROYG201011-201101

main52159-30440-B0iGWS204200805-200904

main52159-30440-B1iGRS202..ROYG200802-201002

main52159-30440-C0iGWS204200904-201002

main52159-30440-D0iGRS202..ROYG201011-201101

main52159-30440-F0iGRS202..ROYG201002-201011

main52159-30440-G0iGWS204200805-200904

main52159-30440-J0iGRS202,GWS204..HBD,ROYG201011-201101

main52159-30440-J1supersedes 52159-30450-J1iGWS204201002-201011

main52159-30441-A1iGRS202,GWS204..HBD,ROYG201101-201212

main52159-30441-B0iGRS202,GWS204..HBD,ROYG201101-201212

main52159-30441-B1iGRS202,GWS204..HBD,ROYG201101-201212

main52159-30441-C0iGRS202,GWS204..HBD,ROYG201101-201212

main52159-30441-D0iGRS202..ROYG201101-201212

main52159-30441-F0iGRS202..ROYG201101-201212

main52159-30441-J0iGRS202,GWS204..HBD,ROYG201101-201212

main52159-30441-J1supersedes 52159-30450-J1iGWS204201101-201212

main52159-30460-A0iGRS200,201..ATH200904-201002

main52159-30460-B0supersedes 52159-30451-B0iGRS200,201,204..ATH201002-201101

main52159-30460-B1supersedes 52159-30450-B1iGWS204200805-201002

main52159-30460-B2iGRS200,201..ATH; GRS204200904-201002

main52159-30460-C0iGRS204200802-201002

main52159-30460-D0iGRS200,201..ATH200904-201002

main52159-30460-F0supersedes 52159-30451-F0iGRS200,201,204..ATH201002-201101

main52159-30460-G0iGRS200,201..ATH200904-201002

main52159-30460-J0supersedes 52159-30451-J0iGRS200,201,204..ATH201002-201101

main52159-30460-J1supersedes 52159-30450-J1iGWS204200805-201002

main52159-30461-A0supersedes 52159-30451-A0iGRS200,201,204..ATH201101-201212

main52159-30461-B0supersedes 52159-30451-B0iGRS200,201,204..ATH201101-201212

main52159-30461-B1supersedes 52159-30451-B1iGRS200,201,204..ATH201101-201212

main52159-30461-C0supersedes 52159-30451-C0iGRS200,201,204..ATH201101-201212

main52159-30461-D0supersedes 52159-30451-D0iGRS200,201,204..ATH201101-201212

main52159-30461-F0supersedes 52159-30451-F0iGRS200,201,204..ATH201101-201212

main52159-30461-J0supersedes 52159-30451-J0iGRS200,201,204..ATH201101-201212

main52159-30470-A0iGRS204201002-201011

main52159-30470-B0iGRS204200904-201002

main52159-30470-B1iGRS204200802-200904

main52159-30470-C0iGRS204201011-201101

main52159-30470-D0iGRS204201011-201101

main52159-30470-F0iGRS204201011-201101

main52159-30470-G0iGRS204200802-200904

main52159-30470-J0iGRS204201011-201101

main52159-30470-J1supersedes 52159-30450-J1iGWS204200805-201002

main52159-30471-A0iGRS204201101-201212

main52159-30471-B0iGRS204201101-201212

main52159-30471-B1iGRS204201101-201212

main52159-30471-C0iGRS204201101-201212

main52159-30471-D0iGRS204201101-201212

main52159-30471-F0iGRS204201101-201212

main52159-30471-J0iGRS204201101-201212

main52159-30520-A1supersedes 52159-30450-A0iGWS204200805-201002

main52159-30520-A2supersedes 52159-30380-A2iGRS200,201,202,203..ROY..CBU200904-201002

main52159-30520-B0iGRS200,201,202,203..(ROY,ROYG)..CBU; GWS204200904-201002

main52159-30520-B1supersedes 52159-30450-B1iGWS204200805-201002

main52159-30520-C0iGWS204200805-200904

main52159-30520-D0supersedes 52159-30381-D0iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201101

main52159-30520-F0supersedes 52159-30381-F0iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201101

main52159-30520-G0iGRS200,201,202,203..(ROY,ROYG)..CBU200802-200904

main52159-30520-J0supersedes 52159-30381-J0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201101

main52159-30520-J1supersedes 52159-30450-J1iGWS204200805-201002

main52159-30521-A1supersedes 52159-30381-A1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201101-201212

main52159-30521-B0supersedes 52159-30381-B0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201101-201212

main52159-30521-B1supersedes 52159-30381-B1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201101-201212

main52159-30521-C0supersedes 52159-30381-C0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201101-201212

main52159-30521-D0supersedes 52159-30381-D0iGRS200,201,202,203..(ROY,ROYG)..CBU201101-201212

main52159-30521-F0supersedes 52159-30381-F0iGRS200,201,202,203..(ROY,ROYG)..CBU201101-201212

main52159-30521-J0supersedes 52159-30381-J0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201101-201212

main52159-30521-J1supersedes 52159-30450-J1iGWS204201101-201212

main52159-30530-A1iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GRS202,203..CBU; GWS204200904-201002

main52159-30530-A2iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GRS202,203..ROY..CBU200904-201002

main52159-30530-B0iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GRS202,203..CBU; GWS204200904-201002

main52159-30530-B1iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GRS202,203..CBU; GWS204200904-201002

main52159-30530-C0iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GRS202,203..CBU; GWS204200904-201002

main52159-30530-D0supersedes 52159-30381-D0iGRS200,201,202,203..(ROY,ROYG)..CBU201011-201101

main52159-30530-F0supersedes 52159-30381-F0iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201101

main52159-30530-G0iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GRS202,203..CBU200904-201002

main52159-30530-J0iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GRS202,203..CBU; GWS204200904-201002

main52159-30530-J1iGWS204200805-200904

main52159-30531-A1supersedes 52159-30381-A1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201101-201212

main52159-30531-B0supersedes 52159-30381-B0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201101-201212

main52159-30531-B1supersedes 52159-30381-B1iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201101-201212

main52159-30531-C0supersedes 52159-30381-C0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201101-201212

main52159-30531-D0supersedes 52159-30381-D0iGRS200,201,202,203..(ROY,ROYG)..CBU201101-201212

main52159-30531-F0supersedes 52159-30381-F0iGRS200,201,202,203..(ROY,ROYG)..CBU201101-201212

main52159-30531-J0supersedes 52159-30381-J0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201101-201212

main52159-30531-J1supersedes 52159-30450-J1iGWS204201101-201212

main52159-30540-A1iGRS202..ROYG200802-200904

main52159-30540-B0iGRS202..ROYG200802-200904

main52159-30540-B1iGRS202..ROYG; GWS204200904-201002

main52159-30540-C0iGRS202..ROYG; GWS204200904-201002

main52159-30540-D0iGRS202..ROYG201011-201101

main52159-30540-F0iGRS202..ROYG201011-201101

main52159-30540-G0iGRS202..ROYG200904-201002

main52159-30540-J0iGRS202,GWS204..HBD,ROYG201002-201011

main52159-30540-J1supersedes 52159-30450-J1iGWS204201011-201101

main52159-30541-A1iGRS202,GWS204..HBD,ROYG201101-201212

main52159-30541-B0iGRS202,GWS204..HBD,ROYG201101-201212

main52159-30541-B1iGRS202,GWS204..HBD,ROYG201101-201212

main52159-30541-C0iGRS202,GWS204..HBD,ROYG201101-201212

main52159-30541-D0iGRS202..ROYG201101-201212

main52159-30541-F0iGRS202..ROYG201101-201212

main52159-30541-J0iGRS202,GWS204..HBD,ROYG201101-201212

main52159-30541-J1supersedes 52159-30450-J1iGWS204201101-201212

main52159-30550-A0iGRS200,201,204..ATH; GWS204200904-201002

main52159-30550-B0iGRS200,201,204..ATH; GWS204200904-201002

main52159-30550-B1iGRS200,201,204..ATH; GWS204200904-201002

main52159-30550-B2supersedes 52159-30450-B2iGRS200,201,204..ATH200904-201002

main52159-30550-C0supersedes 52159-30451-C0iGRS200,201,204..ATH201002-201101

main52159-30550-D0supersedes 52159-30451-D0iGRS200,201,204..ATH201002-201101

main52159-30550-F0supersedes 52159-30451-F0iGRS200,201,204..ATH201002-201101

main52159-30550-G0iGRS200,201,204..ATH200904-201002

main52159-30550-J0iGRS200,201,204..ATH; GWS204200904-201002

main52159-30550-J1iGWS204200805-200904

main52159-30551-A0supersedes 52159-30451-A0iGRS200,201,204..ATH201101-201212

main52159-30551-B0supersedes 52159-30451-B0iGRS200,201,204..ATH201101-201212

main52159-30551-B1supersedes 52159-30451-B1iGRS200,201,204..ATH201101-201212

main52159-30551-C0supersedes 52159-30451-C0iGRS200,201,204..ATH201101-201212

main52159-30551-D0supersedes 52159-30451-D0iGRS200,201,204..ATH201101-201212

main52159-30551-F0supersedes 52159-30451-F0iGRS200,201,204..ATH201101-201212

main52159-30551-J0supersedes 52159-30451-J0iGRS200,201,204..ATH201101-201212

main52159-30560-A0iGRS200,201,204,GWS204..ATH,HBD200802-200904

main52159-30560-B0iGRS200,201..ATH; GRS204; GWS204200904-201002

main52159-30560-B1iGRS200,201..ATH; GRS204; GWS204200904-201002

main52159-30560-B2iGRS200,201..ATH; GRS204200904-201002

main52159-30560-C0iGRS200,201..ATH; GRS204; GWS204200904-201002

main52159-30560-D0iGRS200,201,204,GWS204..ATH,HBD200802-200904

main52159-30560-F0supersedes 52159-30451-F0iGRS200,201,204..ATH201011-201101

main52159-30560-G0iGRS200,201..ATH; GRS204200904-201002

main52159-30560-J0iGRS200,201..ATH; GRS204; GWS204200904-201002

main52159-30560-J1iGWS204200904-201002

main52159-30561-A0supersedes 52159-30451-A0iGRS200,201,204..ATH201101-201212

main52159-30561-B0supersedes 52159-30451-B0iGRS200,201,204..ATH201101-201212

main52159-30561-B1supersedes 52159-30451-B1iGRS200,201,204..ATH201101-201212

main52159-30561-C0supersedes 52159-30451-C0iGRS200,201,204..ATH201101-201212

main52159-30561-D0supersedes 52159-30451-D0iGRS200,201,204..ATH201101-201212

main52159-30561-F0supersedes 52159-30451-F0iGRS200,201,204..ATH201101-201212

main52159-30561-J0supersedes 52159-30451-J0iGRS200,201,204..ATH201101-201212

main52159-30570-A0iGRS204; GWS204200904-201002

main52159-30570-B0iGRS204; GWS204200904-201002

main52159-30570-B1iGRS204; GWS204200904-201002

main52159-30570-C0iGRS204; GWS204200904-201002

main52159-30570-D0iGRS204201011-201101

main52159-30570-F0iGRS204201011-201101

main52159-30570-G0iGRS204200904-201002

main52159-30570-J0iGRS204; GWS204200904-201002

main52159-30570-J1iGWS204200904-201002

main52159-30571-A0iGRS204201101-201212

main52159-30571-B0iGRS204201101-201212

main52159-30571-B1iGRS204201101-201212

main52159-30571-C0iGRS204201101-201212

main52159-30571-D0iGRS204201101-201212

main52159-30571-F0iGRS204201101-201212

main52159-30571-J0iGRS204201101-201212

52161BPIECE, REAR BUMPER

main52161-16010×4iGRS20#,GWS204..CBU200802-201002

52162BPLATE, REAR BUMPER, NO.1

main52162-30120×2iGRS202,GWS204..HBD,ROYG; GRS204; GWS204200904-201002

main52162-30150-A0×2iGRS202,204,GWS204..ATH,HBD,ROYG201011-201212

main52162-30150-B0×2iGRS202,204,GWS204..ATH,HBD,ROYG201011-201212

main52162-30150-B1×2iGRS202,204,GWS204..ATH,HBD,ROYG201002-201011

main52162-30150-C0×2iGRS202,204,GWS204..ATH,HBD,ROYG201011-201212

main52162-30150-D0×2iGRS202,204..ATH,ROYG201002-201011

main52162-30150-F0×2iGRS202,204..ATH,ROYG201011-201212

main52162-30150-J0×2iGWS204201011-201212

main52162-30150-J1×2iGRS202,204,GWS204..ATH,HBD,ROYG201002-201011

52169CCOVER, REAR BUMPER, LOWER

main52169-30020iGRS204; GWS204200904-201002

main52169-30030iGRS202,GWS204..HBD,ROYG; GRS204; GWS204200904-201002

main52169-30050-A0iGRS202,204,GWS204..ATH,HBD,ROYG201011-201212

main52169-30050-B0iGRS202,204,GWS204..ATH,HBD,ROYG201002-201011

main52169-30050-B1iGRS202,204,GWS204..ATH,HBD,ROYG201002-201011

main52169-30050-C0iGRS202,204,GWS204..ATH,HBD,ROYG201011-201212

main52169-30050-D0iGRS202,204..ATH,ROYG201002-201011

main52169-30050-F0iGRS202,204..ATH,ROYG201011-201212

main52169-30050-J0iGWS204201002-201011

main52169-30050-J1iGRS202,204,GWS204..ATH,HBD,ROYG201011-201212

main52169-30060-A0iGRS202,204,GWS204..ATH,HBD,ROYG201011-201212

main52169-30060-B0iGRS202,204,GWS204..ATH,HBD,ROYG201011-201212

main52169-30060-B1iGRS202,204,GWS204..ATH,HBD,ROYG201002-201011

main52169-30060-C0iGRS202,204,GWS204..ATH,HBD,ROYG201011-201212

main52169-30060-D0iGRS202,204..ATH,ROYG201011-201212

main52169-30060-F0iGRS202,204..ATH,ROYG201002-201011

main52169-30060-J0iGWS204201011-201212

main52169-30060-J1iGRS202,204,GWS204..ATH,HBD,ROYG201011-201212

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-30340iGRS20#,GWS204..CBU201002-201101

main52023-30341iGRS20#,GWS204..CBU201101-201212

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-30040iGRS20#,GWS204..CBU200802-201002

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-30040iGRS20#,GWS204..CBU200802-201002

52461PAD, REAR BUMPER, CENTER

main52461-30100iGRS20#,GWS204..CBU201101-201212

52461DCUSHION, REAR BUMPER

main52461-30110iGRS20#,GWS204..CBU201101-201212

52461FPAD, REAR BUMPER

main52462-30060×4iGRS20#,GWS204..CBU201002-201212

52567ARETAINER, REAR BUMPER, LOWER SIDE

main52535-28020×2iGRS202,GWS204..HBD,ROYG; GRS204; GWS204200904-201002

52575RETAINER, REAR BUMPER SIDE, RH

main52575-30190iGRS20#,GWS204..CBU201002-201212

52576RETAINER, REAR BUMPER SIDE, LH

main52576-30150iGRS20#,GWS204..CBU200802-201002

52577RETAINER, REAR BUMPER SIDE, NO.2 RH

main52577-30090iGRS20#,GWS204..CBU201002-201212

52578RETAINER, REAR BUMPER SIDE, NO.2 LH

main52578-30090iGRS20#,GWS204..CBU200802-201002

52581BPROTECTOR, REAR BUMPER

main52581-30060×2iGRS20#,GWS204..CBU200802-201002

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

75392RETAINER, OUTSIDE MOULDING

main75392-35200×8iGWS204200805-200904

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8116REAR FOG LAMP

→ Go to FIG 81-16

8202WIRING & CLAMP

→ Go to FIG 82-02

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-33020×2iGRS20#,GWS204..CBU200802-201002

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-33020×2iGRS20#,GWS204..CBU200802-201002

9010506041

main90105-06041

9010906382

main90109-06382

9015950311

main90159-50311

9015960498

main90159-60498

9015960500

main90159-60500

9015960561

main90159-60561

9018906006

main90189-06006

91631B0820

main91631-B0820

35 parts on this diagram · 1 diagram in section
