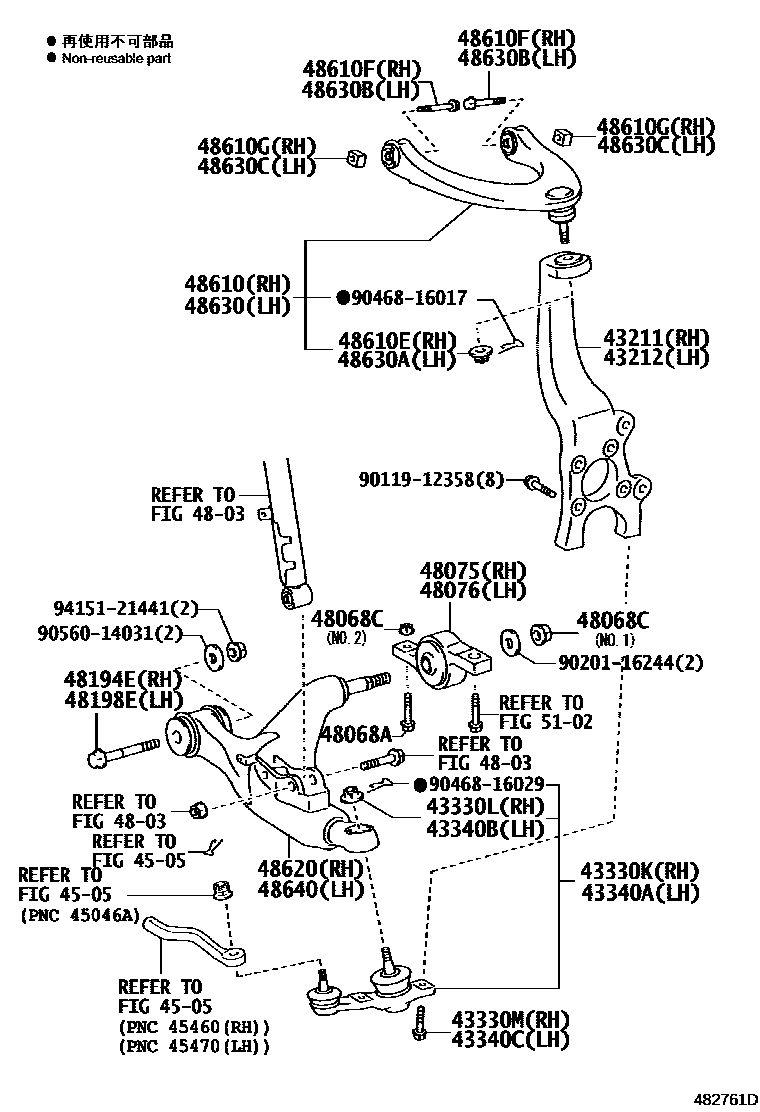

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43201-30010iGRS200,202,204,GWS204200802-201212

main43201-30021iGRS201,203200802-201212

43212KNUCKLE, STEERING, LH

main43202-30020iGRS200,202,204,GWS204200802-201212

main43202-30031iGRS201,203..CBU200802-201212

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39625iGRS200,202,204,GWS204200802-201212

main43330-39635iGRS201,203200802-201212

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14011iGRS200,202,204,GWS204..CBU200802-201212

main90171-14014iGRS201,203..CBU200802-201212

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main91552-L1455iGRS200,202,204,GWS204200802-201212

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-39635iGRS201,203200802-201212

main43340-39505iGRS200,202,204,GWS204200802-201212

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14011iGRS200,202,204,GWS204..CBU200802-201212

main90171-14014iGRS201,203200802-201212

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main91552-L1455iGRS200,202,204,GWS204200802-201212

4505

4803

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main91552-L1265iGRS200,202,204,GWS204200802-201212

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main94151-21240iGRS200,202,204,GWS204200802-201212

main94151-21601iGRS200,202,204,GWS204200802-201002

48075BRACKET SUB-ASSY, LWR ARM, NO,1

main48075-30030iGRS20#,GWS204200802-201212

48076BRACKET SUB-ASSY, LWR ARM, NO.2

main48076-30030iGRS20#,GWS204200802-201212

48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH

main90105-14166iGRS200,202,204,GWS204200802-201212

48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH

main90105-14166iGRS200,202,204,GWS204200802-201212

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-39165iGRS200,202,204,GWS204..CBU200802-201212

main48610-39175iGRS201,203200802-201212

48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)

main90171-12012iGRS20#,GWS204200802-201212

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main91672-G1070iGRS20#,GWS204..CBU200802-201212

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90173-10012iGRS20#,GWS204200802-201212

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

main48620-30290iGRS200,202,204,GWS204..CBU200802-201207

main48620-30310iGRS201,203..CBU200802-201212

main48620-30340iGRS200,202,204,GWS204..CBU201208-201212

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48610-39175iGRS201,203200802-201212

main48630-39105iGRS200,202,204,GWS204200802-201212

48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)

main90171-12012iGRS20#,GWS204200802-201212

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main91672-G1070iGRS20#,GWS204200802-201212

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90173-10012iGRS20#,GWS204200802-201212

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

main48640-30290iGRS200,202,204,GWS204200802-201207

main48640-30310iGRS201,203..CBU200802-201212

main48640-30340iGRS200,202,204,GWS204..CBU201208-201212

5102

9011912358

main90119-12358

9020116244

main90201-16244

9046816017

main90468-16017

9046816029

main90468-16029

9056014031

main90560-14031

9415121441

main94151-21441

33 parts on this diagram · 2 diagrams in section
