FRONT DISC BRAKE CALIPER & DUST COVER

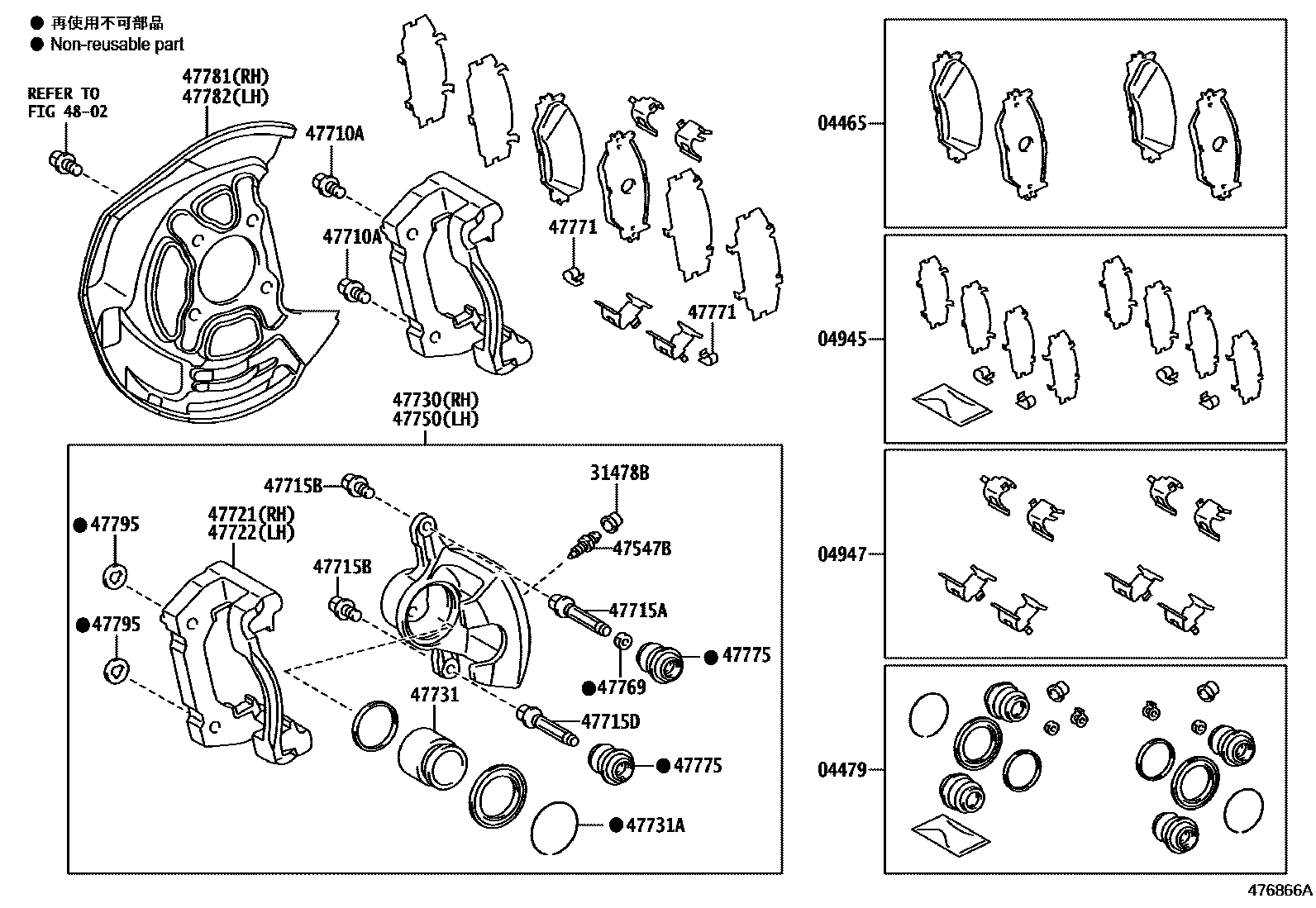

Parts diagram
04465PAD KIT, DISC BRAKE, FRONT
main04465-30330i201002-201112
main04465-30340i200802-201002
main04465-30430i200802-201002
main04465-30470i201110-201212
sub04465-30510
main04465-30480i201112-201212
04479CYLINDER KIT, DISC BRAKE, FRONT
main04478-30260i201002-201212
main04479-50130i200802-201002
sub04478-22040
04945SHIM KIT, ANTI SQUEAL, FRONT
main04945-30170i201002-201212
main04945-30180i200802-201002
main04945-30320i200802-200908
main04945-30321i201002-201109
sub04945-30350
main04945-30330i201110-201212
sub04945-30350
04947FITTING KIT, DISC BRAKE, FRONT
main04947-22070i201002-201212
main04947-30140i201002-201212
main04947-30150i200802-201002
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
main31478-14010×2i201002-201212
main31478-30010×2i201002-201212
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
main47547-27030×2i200802-201002
main47547-50010×2i200802-201002
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
main90119-12415×4i201111-201212
main91552-K1240×4i200802-201002
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
main47715-22070×2i200802-201002
47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
main90105-08164×4i200802-201002
47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
main47715-33050×2i201002-201212
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
main47721-30520i200802-200906
main47721-30521i200906-201002
main47721-30530i200802-201002
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
main47721-30520i200802-200906
main47721-30521i200906-201002
main47721-30530i200802-201002
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
main47730-22460i200802-201002
main47730-30520i200802-200906
main47730-30521i200906-201002
main47730-30530i201002-201212
47731PISTON, FRONT DISC BRAKE
main47731-33070×2i201002-201212
sub47731-30570
main47731-50070×8i200802-201002
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
main90520-86005×2i200802-201002
47750CYLINDER ASSY, DISC BRAKE, LH
main47750-22460i201002-201212
main47750-30520i200802-200906
main47750-30521i200906-201002
main47750-30530i200802-201002
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
main47769-50010×2i200802-201002
47771PLATE, PAD WEAR INDICATOR, NO.1
main47771-30090×4i200802-201002
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
main47775-50010×4i200802-201002
47781COVER, DISC BRAKE DUST, FRONT RH
main47781-22200i200802-201002
main47781-30220i201002-201212
main47781-30230i201002-201212
47782COVER, DISC BRAKE DUST, FRONT LH
main47782-22200i201002-201212
main47782-30220i200802-201002
main47782-30230i200802-201002
47795PLATE, FRONT DISC BRAKE CALIPER, NO.1
main47795-30520×4i200802-201002
4802

23 parts on this diagram · 3 diagrams in section
