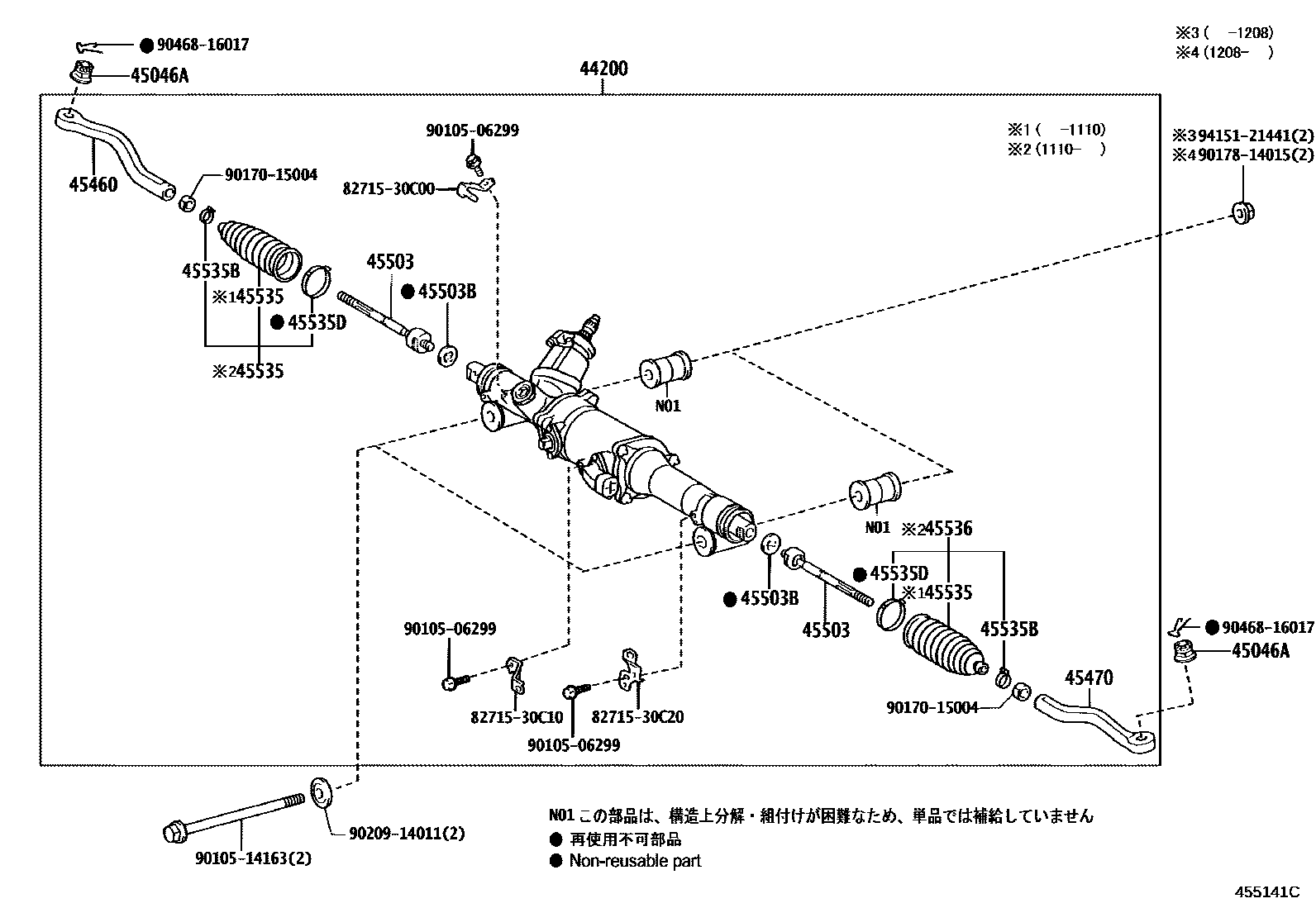

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-30302iGRS200,202..(ROY,ROYG)..CBU201002-201109

main44200-30303iGRS200,202..(ROY,ROYG)..CBU201206-201212

main44200-30312iGRS201,203..CBU201002-201109

main44200-30313iGRS201,203..CBU201206-201212

main44200-30580iGRS200,204,GWS204..ATH,HBD201002-201109

main44200-30581iGRS200,204,GWS204..ATH,HBD201206-201207

main44200-30582iGRS200,204,GWS204..ATH,HBD201208-201212

main44200-30B20iGRS200,202..(ROY,ROYG)..CBU201110-201206

main44200-30B30iGRS201,203..CBU201110-201206

main44200-30B40iGRS200,204,GWS204..ATH,HBD201110-201206

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002×2iGRS200,202,204,GWS204..CBU201002-201212

main90178-12017×2iGRS201,203200802-201002

45460ROD ASSY, TIE, RH

main45460-39715iGRS201,203200802-201002

main45463-30130iGRS200,202,204,GWS204200802-201002

45470ROD ASSY, TIE, LH

main45464-30060iGRS200,202,204,GWS204200802-201002

main45470-39255iGRS201,203200802-201002

45503END SUB-ASSY, STEERING RACK

main45503-30070×2iGRS200,202,204,GWS204..CBU201002-201212

main45503-30080×2iGRS201,203..CBU201002-201212

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14011×2iGRS20#,GWS204200802-201002

45535BOOT, STEERING RACK, NO.1

main45535-30030×2iGRS20#,GWS204200802-201002

main45535-59045iGRS200,204,GWS204..ATH,HBD201110-201206

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iGRS20#,GWS204200802-201002

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016×2iGRS20#,GWS204200802-201002

45536BOOT, STEERING RACK, NO.2

main45535-59045iGRS200,204,GWS204..ATH,HBD201110-201206

8271530C00BRACKET,WIRING HARNESS CLAMP

main82715-30C00

8271530C10BRACKET,WIRING HARNESS CLAMP

main82715-30C10

8271530C20BRACKET,WIRING HARNESS CLAMP

main82715-30C20

9010506299

main90105-06299

9010514163

main90105-14163

9017015004

main90170-15004

9017814015

main90178-14015

9020914011

main90209-14011

9046816017

main90468-16017

9415121441

main94151-21441

20 parts on this diagram · 2 diagrams in section
