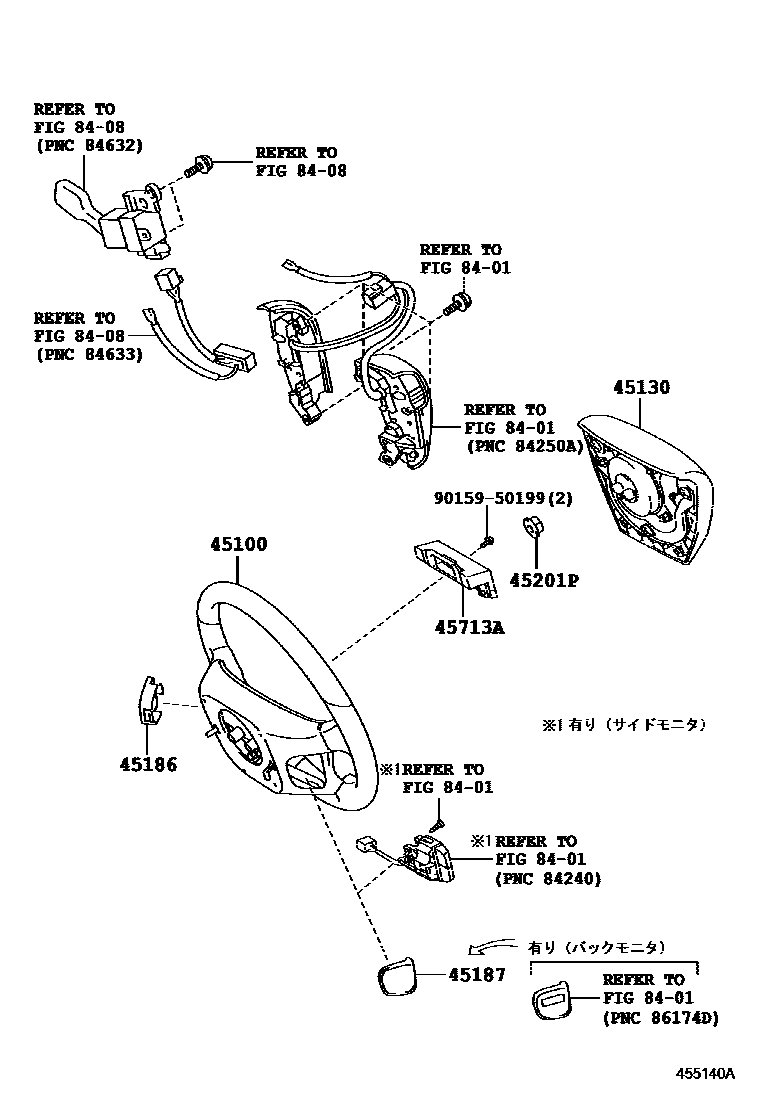

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-30A50-C0supersedes 45100-30A70-C0iGRS200,201..ATH; GRS204,GWS204201002-201212

main45100-30A60-C0iGRS200,201,202,203..ROY200802-200904

main45100-30A60-C2supersedes 45100-30A70-C0iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GRS202,203..CBU; GWS204201002-201212

main45100-30A60-E0iGRS202..ROYG200802-201002

main45100-30A60-E2supersedes 45100-30A50-E0iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GRS202,203..ROY..CBU201002-201108

main45100-30A60-E3iGRS200,201..ROY..CBU; GRS200..ROY..CBU; GRS202,203..ROY..CBU201108-201212

main45100-30A60-C1supersedes 45100-30A60-C0iGRS200,201,202,203..ROY200904-201002

main45100-30A60-E1supersedes 45100-30A60-E0iGRS200,201,202,203..ROY200904-201002

main45100-30A70-C0iGRS200..ROY200802-201002

main45100-30C80-C0iGRS200,201..ATH201203-201212

45130BUTTON ASSY, HORN

main45130-30680-C0iGRS200,201,202,203..ROY,ROYG; GRS200,201,204,GWS204..ATH,HBD200802-201002

BLACK,TRIM1#; BLACK,TRIM1#,4#

main45130-30680-E0iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200802-201002

DK. BROWN,TRIM0#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-30170-C0iGRS200,201,202,203..ROY,ROYG; GRS200,201,204,GWS204..ATH,HBD200802-201002

BLACK,TRIM1#; BLACK,TRIM1#,4#

main45186-30170-E0iGRS200,201,202,203,GWS204..HBD,ROY,ROYG200802-201002

DK. BROWN,TRIM0#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-30110-C0iGRS200,201,202,203..ROY,ROYG; GRS200,201,204,GWS204..ATH,HBD200802-201002

BLACK,TRIM1#; BLACK,TRIM1#,4#

main45187-30110-E0iGRS200,201,202,203,GWS204..(HBD,ROY,ROYG)..CBU201002-201212

DK. BROWN,TRIM0#

45201PNUT, STEERING WHEEL SET

main90179-12071iGRS20#,GWS204..CBU201002-201212

45713ADAMPER, STEERING SHAKE

main45713-30170iGRS20#,GWS204..CBU201002-201212

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

9 parts on this diagram · 1 diagram in section
