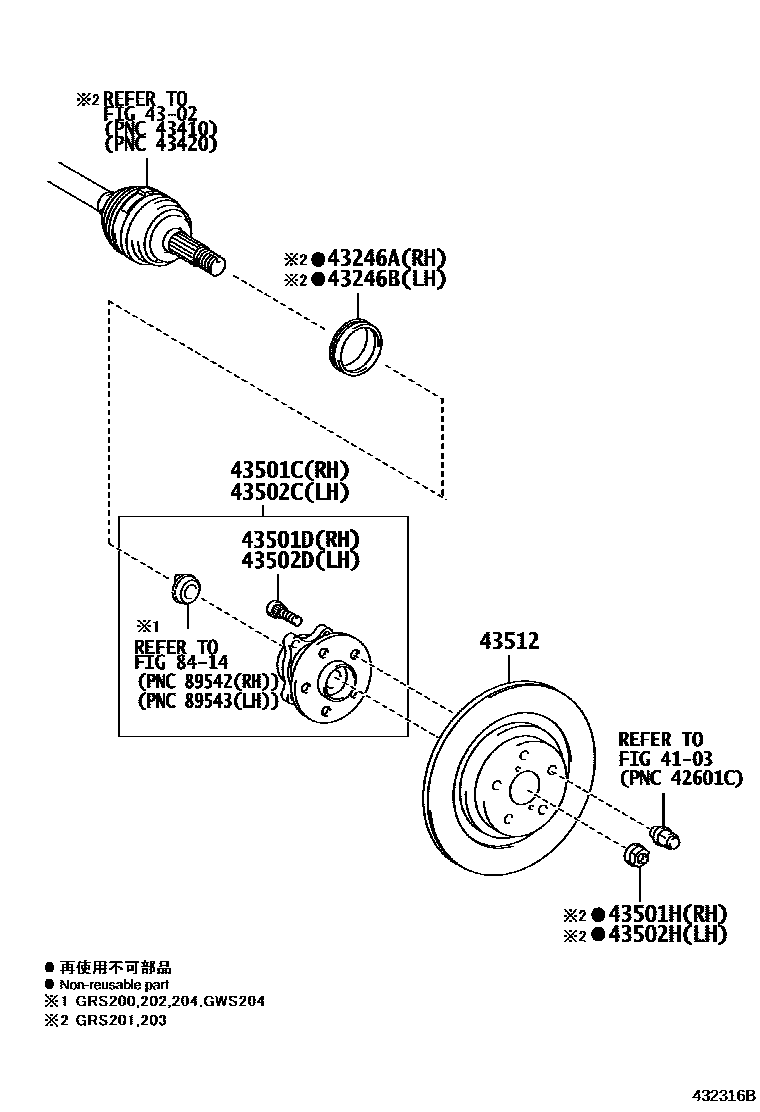

FRONT AXLE HUB

0001 1 0002 1

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-30010iGRS201,203..CBU201002-201212

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-30010iGRS201,203200802-201002

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-30010iGRS200,202,204,GWS204..CBU201002-201212

main43550-30030iGRS201,203..CBU201002-201212

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070×5iGRS20#,GWS204200802-201002

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iGRS201,203200802-201002

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43560-30010iGRS200,202,204,GWS204..CBU200802-201002

main43560-30030iGRS201,203..CBU201002-201212

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070×5iGRS20#,GWS204200802-201002

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iGRS201,203200802-201002

43512DISC, FRONT

main43512-30310×2iGRS200,201,202,203..(ROY,ROYG)..CBU201002-201212

main43512-30320iGRS200,201..ATH200802-201002

main43512-30350iGRS204,GWS204201002-201212

main43516-30010iGRS200,201..ATH200802-201002

main43516-30040iGRS204,GWS204201002-201212

8414ABS & VSC

→ Go to FIG 84-14

12 parts on this diagram · 2 diagrams in section
