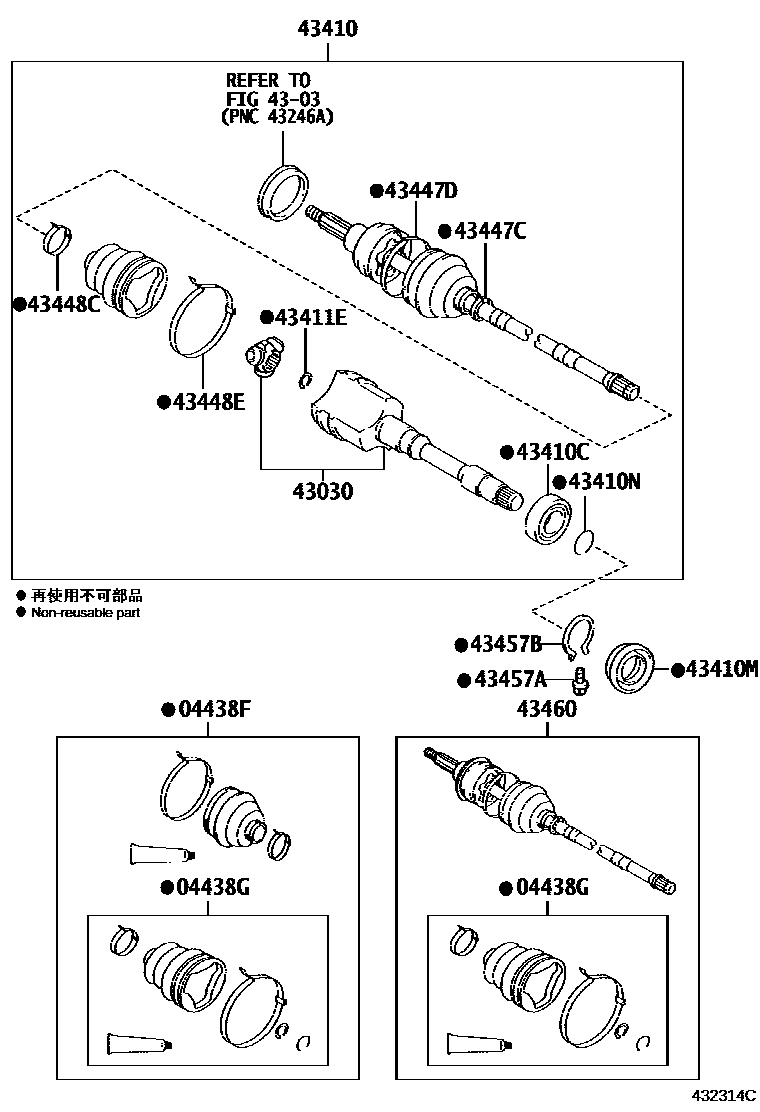

FRONT DRIVE SHAFT

0001 1��� 0002 1���

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-30010iGRS201,203200802-201002

main04427-30080iGRS201,203..CBU201009-201212

sub04427-30081

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-30070iGRS201,203200802-201002

sub04437-30071

4303

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-30020iGRS201,203200802-201002

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-30020iGRS201,203200802-201002

main43410-30021iGRS201,203..CBU201009-201212

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36001iGRS201,203200802-200806

sub90363-36004

main90363-36010iGRS201,203200806-201002

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35030iGRS201,203..CBU200802-201002

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iGRS201,203200802-201002

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-20065iGRS201,203200802-201002

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-22030iGRS201,203200802-201002

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-22040iGRS201,203200802-201002

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01804iGRS201,203200802-201002

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01803iGRS201,203200802-201002

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90901-19060iGRS201,203200802-201002

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90520-65002iGRS201,203200802-201002

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-39215iGRS201,203200802-201002

main43460-39216iGRS201,203..CBU201009-201212

sub43460-39217

16 parts on this diagram · 2 diagrams in section
