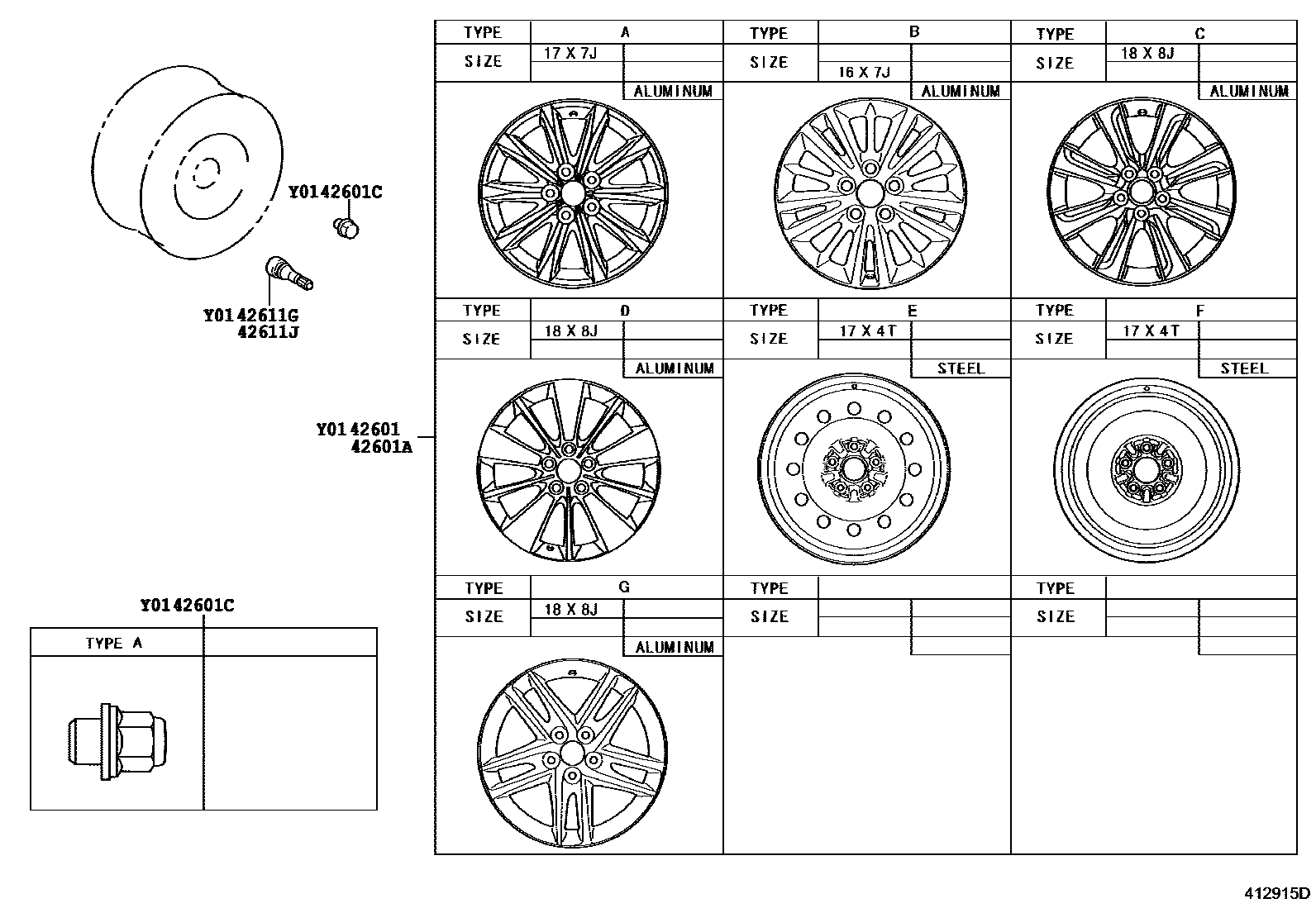

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-30B60×4supersedes 42611-30C50iGRS200,201..ROY..CBU; GRS202,203..CBU201002-201212

main42611-30B90×4iGWS204200805-201002

main4261A-30050×4iGRS200,201,204..ATH200802-201002

main4261A-30090×4iGRS200,201,204..ATH201002-201212

main4261A-30080×4iGRS200,201,204..ATH200904-201002

42601AWHEEL, DISC (FOR SPARE)

main42611-30A60iGRS204,GWS204201002-201212

main42611-50090iGRS200,201,202,203..CBU201002-201212

main42611-30B60iGRS200,201..ROY..CBU; GRS202,203..CBU201002-201012

main42611-30C50iGRS200,201..ROY..CBU201012-201212

main4261A-30050iGRS200,201,204..ATH200802-201002

main4261A-30080iGRS200,201,204..ATH200904-201002

main4261A-30090iGRS200,201,204..ATH201002-201012

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iGRS20#,GWS204..CBU201002-201212

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iGRS20#,GWS204..CBU201002-201212

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iGRS20#,GWS204200802-201002

5 parts on this diagram · 4 diagrams in section
