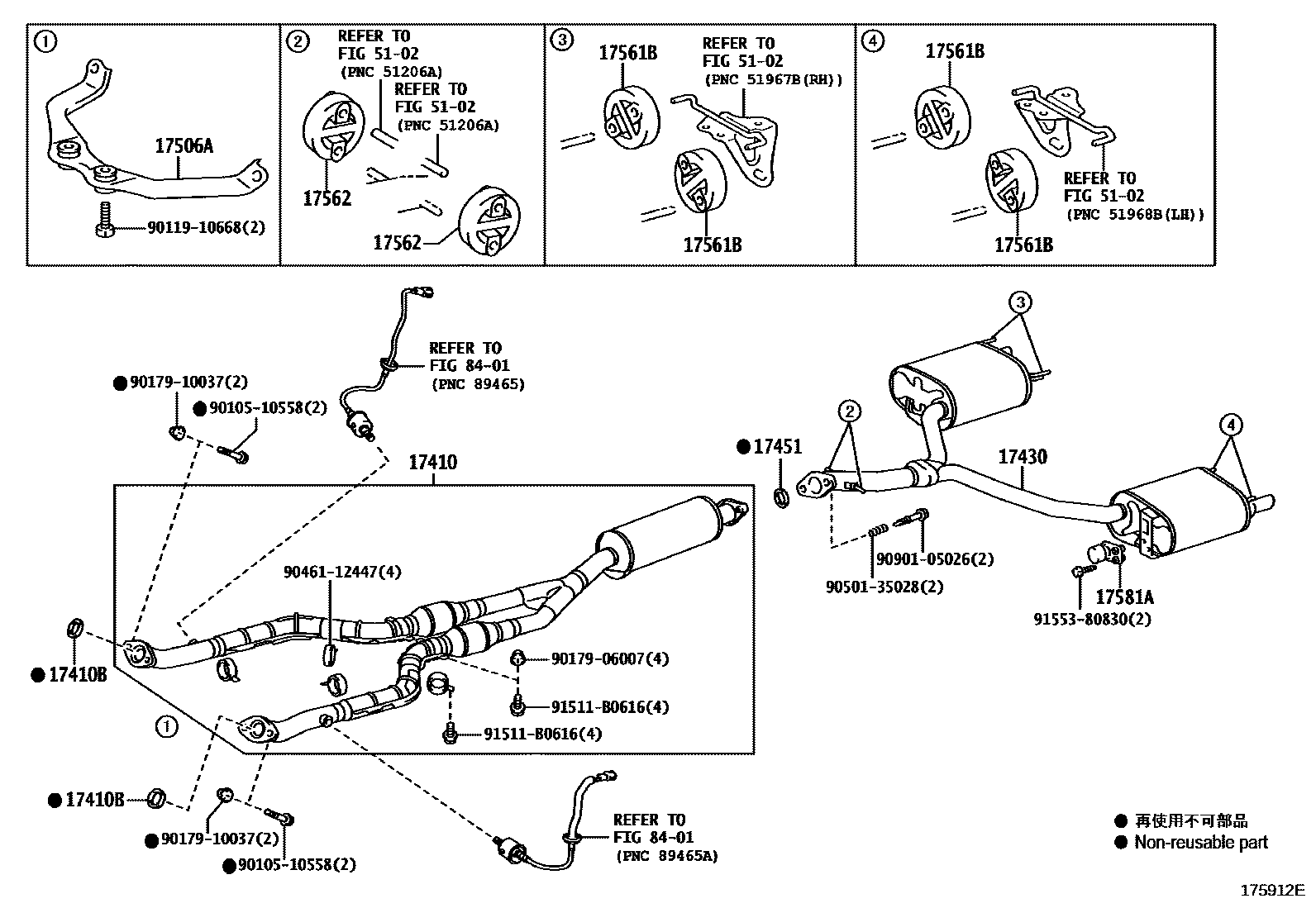

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-31760i3GRFSE..GRS202..CBU200802-201002

main17410-31770i4GRFSE..GRS200..CBU200802-201002

main17410-31780i3GRFSE..GRS203..CBU200802-201002

main17410-31790i4GRFSE..GRS201200802-201002

main17410-31800i2GRFSE..GWS204200805-201002

main17410-31801i2GRFSE..GWS204201002-201212

main17410-31810i2GRFSE..GRS204200802-201002

main17410-31B51i3GRFSE,4GRFSE..GRS200,202..CBU201002-201212

main17410-31B61i3GRFSE,4GRFSE..GRS201,203..CBU201002-201212

main17410-31C51i2GRFSE..GRS204201002-201212

17410BGASKET, EXHAUST PIPE

main90917-06078×2i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

17430PIPE ASSY, EXHAUST, TAIL

main17430-31650i2GRFSE..GRS204201002-201212

main17430-31660i3GRFSE,4GRFSE..GRS200,201,202,203200802-201002

main17430-31670i2GRFSE..GWS204200805-201002

main17430-31A50i3GRFSE,4GRFSE..GRS200,201,202,203..CBU201002-201212

17451GASKET, EXHAUST PIPE

main17451-31010i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-200806

main17451-31011i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU201002-201102

main17451-31012i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU201103-201212

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-31030i2GRFSE,3GRFSE,4GRFSE..GRS200,202,204..CBU201002-201212

main17506-31040i3GRFSE,4GRFSE..GRS201,203..CBU201002-201212

main17506-31101i2GRFSE..GWS204200805-201002

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22030×4i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-22040×2i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

17581ADAMPER, EXHAUST PIPE

main17581-46140i2GRFSE,3GRFSE,4GRFSE..GRS20#200802-201002

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510558

main90105-10558

9011910668

main90119-10668

9017906007

main90179-06007

9017910037

main90179-10037

9046112447

main90461-12447

9050135028

main90501-35028

9090105026

main90901-05026

91511B0616

main91511-B0616

9155380830

main91553-80830

19 parts on this diagram · 2 diagrams in section
