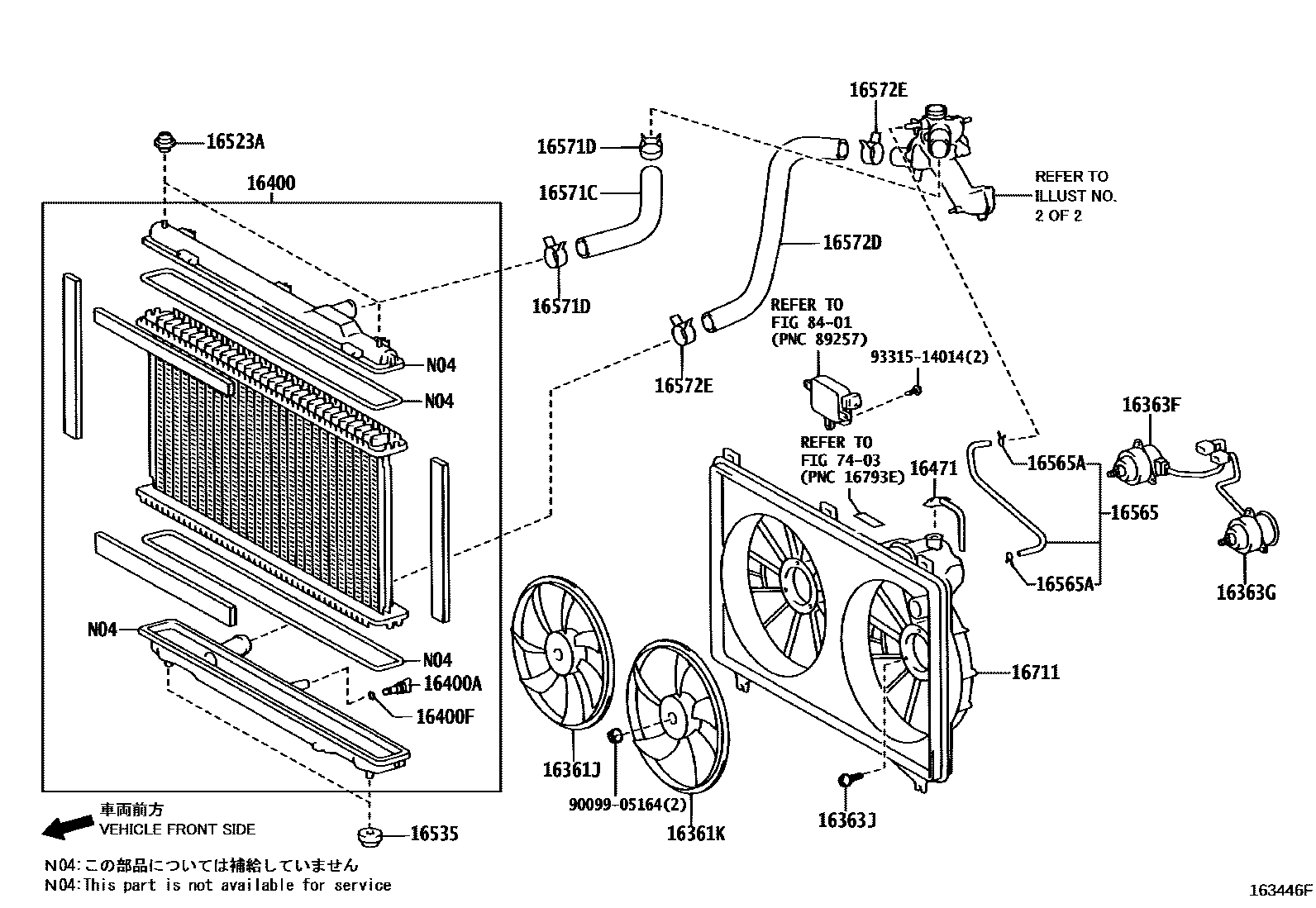

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

16361JFAN, RH

main16361-31080i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU200802-201212

16361KFAN, LH

main16361-31070i2GRFSE,3GRFSE,4GRFSE..GRS20#..CBU200802-201212

main16361-31110i2GRFSE..GWS204200805-201212

16363FMOTOR, COOLING FAN, RH

main16363-31020i2GRFSE,3GRFSE,4GRFSE..GRS20#..CBU200802-201212

main16363-31070i2GRFSE..GWS204200805-201212

16363GMOTOR, COOLING FAN, LH

main16363-31010i2GRFSE,3GRFSE,4GRFSE..GRS20#..CBU200802-201212

main16363-31320i2GRFSE..GWS204200805-201212

16363JBOLT(FOR COOLING FAN MOTOR)

main90099-04117i2GRFSE,3GRFSE,4GRFSE..GRS20#..CBU200802-201212

16400RADIATOR ASSY

main16400-31361i2GRFSE,3GRFSE,4GRFSE..GRS20#200802-201212

main16400-31580i2GRFSE..GWS204200805-201212

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-21280i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201212

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201212

16471CAP SUB-ASSY, RESERVE TANK

main16405-31010i2GRFSE,3GRFSE,4GRFSE..GRS20#200802-201212

main16405-31050i2GRFSE..GWS204200805-201212

16523ACUSHION, RADIATOR SUPPORT

main16523-31010i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201212

16535SUPPORT, RADIATOR, LOWER

main90480-40021i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201212

16565HOSE, RESERVE TANK INLET

main16565-31011i2GRFSE,3GRFSE,4GRFSE..GRS20#200802-201212

16565ACLIP

main90467-11085i2GRFSE,3GRFSE,4GRFSE..GRS20#200802-201212

16571CHOSE, RADIATOR, NO.1

main16571-31140i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201206

main16571-31141i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU201206-201212

16571DCLIP, RADIATOR HOSE, NO.1

main90466-39002i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU201206-201212

main96136-44801i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200910-201206

main96136-54801i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-200909

16572DHOSE, RADIATOR, NO.2

main16572-31180i2GRFSE,3GRFSE,4GRFSE..GRS20#200802-201003

sub16572-31380

main16572-31240i2GRFSE..GWS204200805-201206

main16572-31241i2GRFSE..GWS204201206-201212

main16572-31380i2GRFSE,3GRFSE,4GRFSE..GRS20#..CBU201003-201206

main16572-31381i2GRFSE,3GRFSE,4GRFSE..GRS20#..CBU201206-201212

16572ECLIP, RADIATOR HOSE, NO.2

main90466-39002i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU201206-201212

main96136-44801i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU200910-201206

main96136-54801i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-200909

16711SHROUD, FAN

main16711-31210i2GRFSE,3GRFSE,4GRFSE..GRS20#200802-201212

main16711-31400i2GRFSE..GWS204200805-201212

7403

8401

9009905164

main90099-05164

9331514014

main93315-14014
