WATER PUMP

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

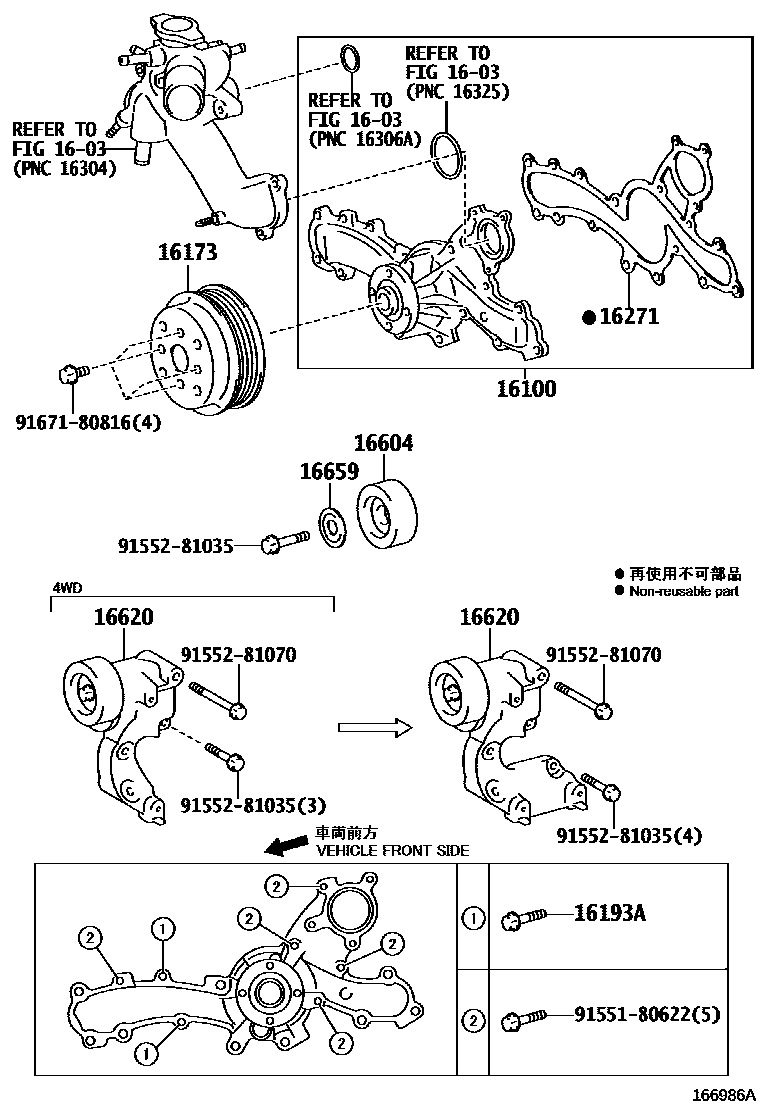

16100PUMP ASSY, ENGINE WATER

main16100-39435i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-200903

main16100-39436i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU201002-201212

16173PULLEY, WATER PUMP

main16173-31010i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU201002-201212

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080×2i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

16271GASKET, WATER PUMP

main16271-31020i2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204200802-201002

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31010i2GRFSE,3GRFSE,4GRFSE..GRS200,202,204..CBU; 3GRFSE,4GRFSE..GRS201,203..CBU201002-201212

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31021i2GRFSE,3GRFSE,4GRFSE..GRS200,202,204200802-201002

main16620-31031i3GRFSE,4GRFSE..GRS201,203..CBU201002-201212

main16620-31060i2GRFSE..GWS204200805-201002

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011i2GRFSE,3GRFSE,4GRFSE..GRS20#200802-201002

9155180622

main91551-80622

9155281035

main91552-81035

9155281070

main91552-81070

9167180816

main91671-80816

12 parts on this diagram · 2 diagrams in section
