ENGINE OVERHAUL GASKET KIT

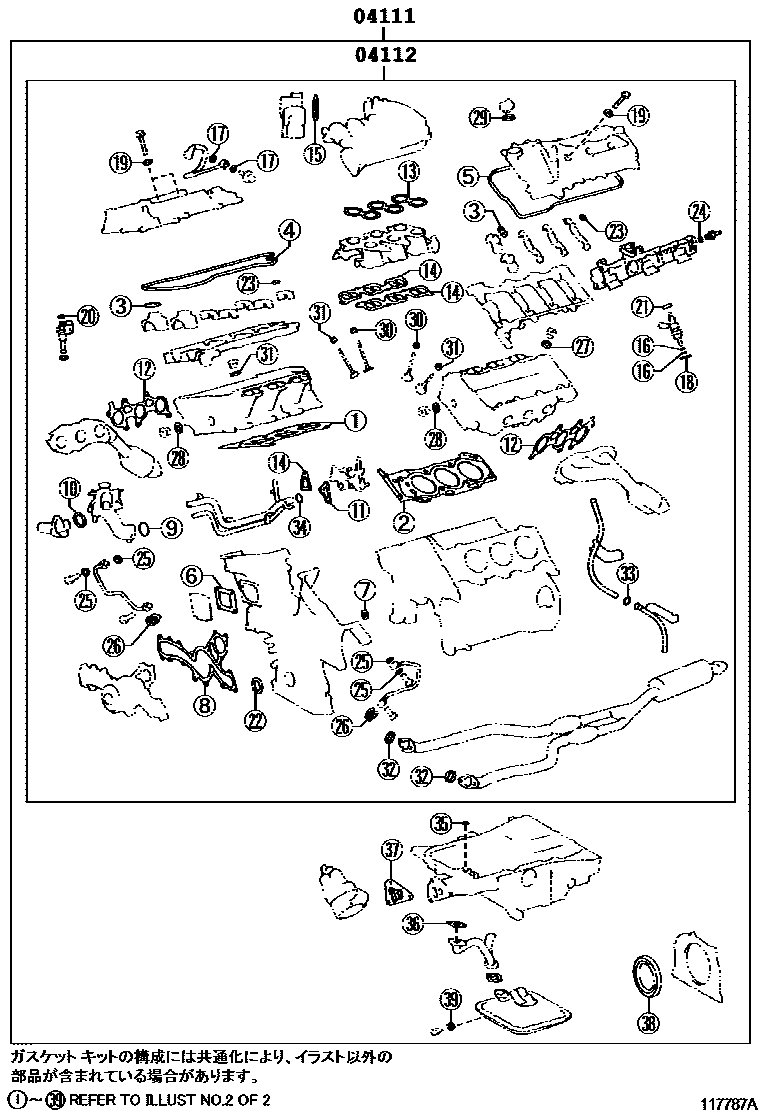

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-31601i201108-201112
sub04111-31602
main04111-31602i201112-201212
main04111-31760i200802-201108
sub04111-31601
main04111-31770i200805-201108
sub04111-31771
main04111-31771i201108-201112
sub04111-31772
main04111-31772i201112-201212
main04111-31780i200802-201108
sub04111-31781
main04111-31781i201108-201109
sub04111-31782
sub04111-31B40
main04111-31782i201110-201111
sub04111-31783
main04111-31783i201111-201212
sub04111-31D60
main04111-31790i200802-201108
sub04111-31791
main04111-31791i201108-201110
sub04111-31792
main04111-31792i201110-201212
04112GASKET KIT, ENGINE VALVE GRIND
main04112-31330i200802-201108
sub04112-31331
main04112-31331i201108-201110
sub04112-31332
sub04112-31800
main04112-31332i201110-201111
sub04112-31333
main04112-31333i201111-201212
sub04112-31334
main04112-31360i200802-201108
sub04112-31362
main04112-31362i201108-201112
sub04112-31363
main04112-31363i201112-201212
main04112-31390i200805-201108
sub04112-31391
main04112-31391i201108-201112
sub04112-31392
main04112-31392i201112-201212
main04112-31490i200802-201108
sub04112-31491
main04112-31491i201108-201110
sub04112-31492
main04112-31492i201110-201212

2 parts on this diagram · 12 diagrams in section
