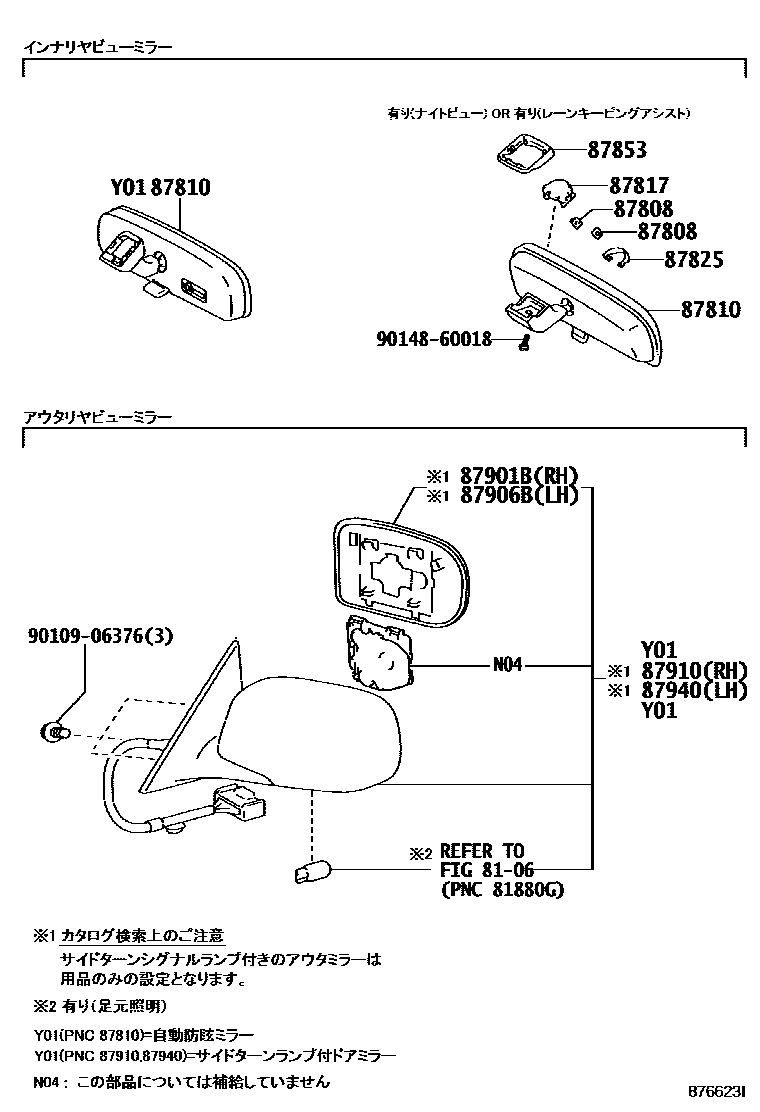

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87808HOLDER SUB-ASSY, INNER MIRROR

main87808-24010×2iGRS182,183; GRS182,183,184200509-200802

87810MIRROR ASSY, INNER REAR VIEW

main87810-60190iGRS180,181..5FC;GRS182,183,UZS18#200312-200606

main87810-60191iGRS18#200612-200802

main87810-30310-C0iGRS182,183; GRS184200509-200609

main87810-30311-C0iGRS182,183; GRS184200610-200802

87817SPACER, INNER REAR VIEW MIRROR

main87817-24010iUZS18#200606

87825SPRING, INNER REAR VIEW MIRROR SETTING

main87825-24010iUZS18#200606

87853BASE, INNER REAR VIEW MIRROR

main87853-24020-C0iGRS182,183; GRS184200509-200802

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-30710iGRS18#200509-200802

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-30A00iUZS18#200606

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-30710-A0iGRS180,181..ROYEX; GRS180..ROY; GRS183200312-200509

main87910-30710-A1iGRS180,181..ROYEX; GRS180..ROY; GRS183200509-200802

main87910-30710-B0iGRS180,181..ROYEX; GRS180..ROY; GRS183200312-200509

main87910-30710-B1iGRS180,181..ROYEX; GRS180..ROY; GRS183200312-200509

main87910-30710-B2iGRS180,181..ROYEX; GRS180..ROY; GRS183200509-200802

main87910-30710-B3iGRS180,181..ROYEX; GRS180..ROY; GRS183200509-200802

main87910-30710-C0iGRS180,181..ROYEX; GRS180..ROY; GRS183200509-200802

main87910-30710-D0iGRS180,181..ROYEX; GRS180..ROY; GRS183200704-200802

main87910-30710-D1iGRS180,181..ROYEX; GRS180..ROY; GRS183200509-200704

main87910-30710-J0iGRS180,181..ROYEX; GRS180..ROY; GRS183200312-200509

main87910-30710-J1iGRS180,181..ROYEX; GRS180..ROY; GRS183200509-200802

main87910-3A370-A0iGRS18#..ATH,ROY,ROYG; GRS181..ROYEX200509-200802

main87910-3A370-A1iGRS18#..ATH,ROY,ROYG; GRS181..ROYEX200509-200802

main87910-3A370-B0iGRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG200312-200606

SILVER ME.,1C0

main87910-3A370-B1iGRS18#..ATH,ROY,ROYG; GRS181..ROYEX200509-200802

main87910-3A370-B2iGRS18#..ATH,ROY,ROYG; GRS181..ROYEX200509-200802

main87910-3A370-B3iGRS18#..ATH,ROY,ROYG; GRS181..ROYEX200509-200802

main87910-3A370-B4iUZS18#200606

GRAY ME.,1F9

main87910-3A370-C0iGRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG200312-200606

BLACK,202

main87910-3A370-D0iGRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG200312-200606

BLACKISH RED MC.,3R0

main87910-3A370-D1iGRS18#..ATH,ROY,ROYG; GRS181..ROYEX200509-200704

main87910-3A370-G0iUZS18#200406-200606

OLIVE M.M.,6T7

main87910-3A370-J0iGRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG200312-200606

DARK BLUE MC.,8P8

main87910-3A370-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

main87910-3A370-J2iGRS18#..ATH,ROY,ROYG; GRS181..ROYEX200509-200802

main87910-30710-A2iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

main87910-3A370-A2iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-30A00-A0iGRS180,181..ROYEX; GRS180..ROY; GRS183200509-200802

main87940-30A00-A1iGRS180,181..ROYEX; GRS180..ROY; GRS183200312-200509

main87940-30A00-B0iGRS180,181..ROYEX; GRS180..ROY; GRS183200312-200509

main87940-30A00-B1iGRS180,181..ROYEX; GRS180..ROY; GRS183200312-200509

main87940-30A00-B2iGRS180,181..ROYEX; GRS180..ROY; GRS183200509-200802

main87940-30A00-B3iGRS180,181..ROYEX; GRS180..ROY; GRS183200509-200802

main87940-30A00-C0iGRS180,181..ROYEX; GRS180..ROY; GRS183200312-200509

main87940-30A00-D0iGRS180,181..ROYEX; GRS180..ROY; GRS183200704-200802

main87940-30A00-D1iGRS180,181..ROYEX; GRS180..ROY; GRS183200509-200704

main87940-30A00-J0iGRS180,181..ROYEX; GRS180..ROY; GRS183200312-200509

main87940-30A00-J1iGRS180,181..ROYEX; GRS180..ROY; GRS183200509-200802

main87940-30A10-A0iGRS18#..ATH,ROY,ROYG; GRS181..ROYEX200509-200802

main87940-30A10-A1iGRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG200312-200606

WHITE PEARL CS.,062

main87940-30A10-B0iGRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG200312-200606

SILVER ME.,1C0

main87940-30A10-B1iGRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG200312-200606

PREMIUM SILVER PEARL,1F3

main87940-30A10-B2iGRS18#..ATH,ROY,ROYG; GRS181..ROYEX200509-200802

main87940-30A10-B3iGRS18#..ATH,ROY,ROYG; GRS181..ROYEX200509-200802

main87940-30A10-B4iUZS18#200606

GRAY ME.,1F9

main87940-30A10-C0iGRS18#..ATH,ROY,ROYG; GRS181..ROYEX200509-200802

main87940-30A10-D0iGRS18#..ATH,ROY,ROYG; GRS181..ROYEX200704-200802

main87940-30A10-D1iGRS18#..ATH,ROY,ROYG; GRS181..ROYEX200509-200704

main87940-30A10-G0iUZS18#200406-200606

OLIVE M.M.,6T7

main87940-30A10-J0iGRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG200312-200606

DARK BLUE MC.,8P8

main87940-30A10-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

main87940-30A10-J2iGRS18#..ATH,ROY,ROYG; GRS181..ROYEX200509-200802

main87940-30A00-A2iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

main87940-30A10-A2iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

9010906376

main90109-06376

9014860018

main90148-60018

12 parts on this diagram · 1 diagram in section
