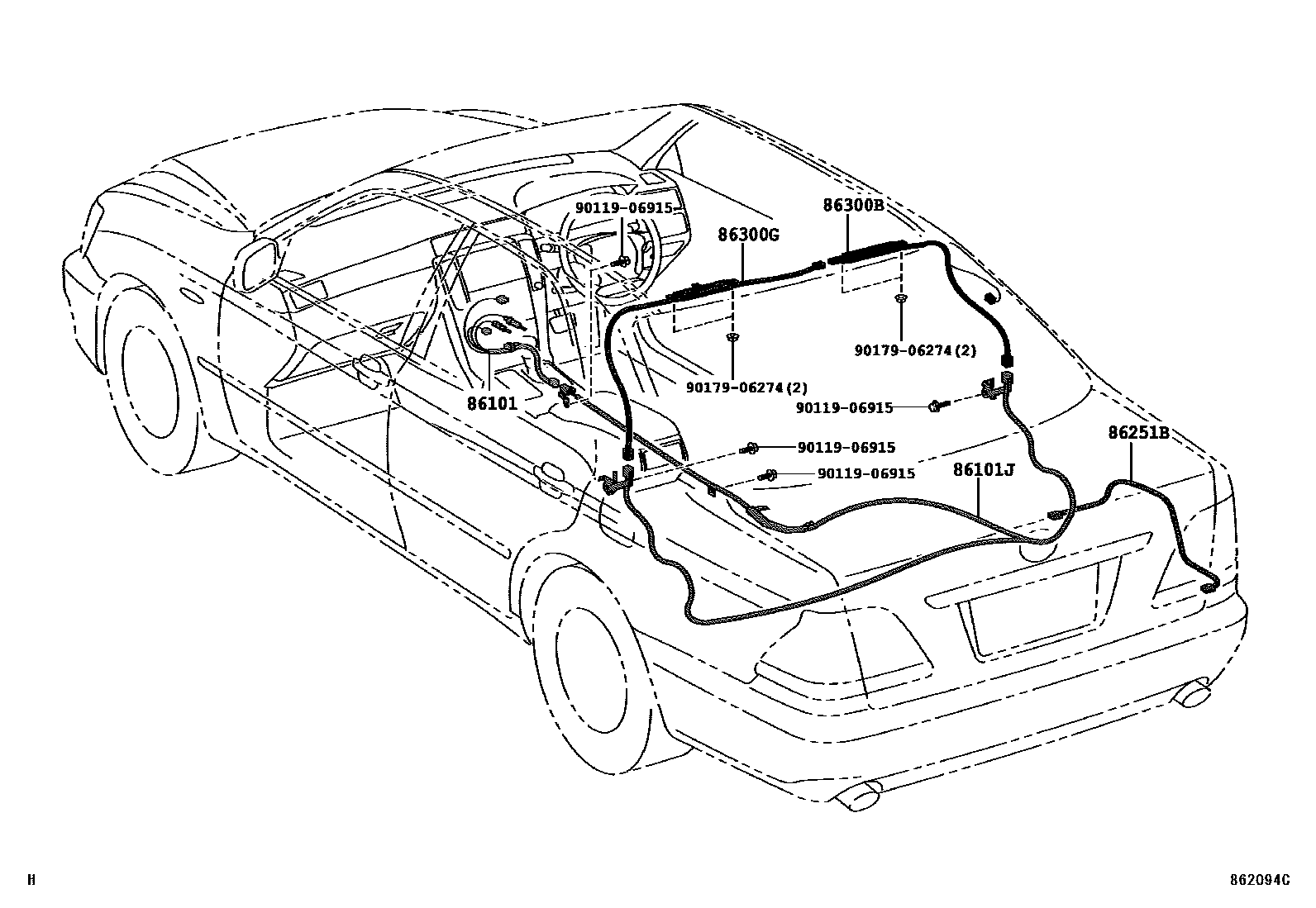

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-30870iGRS181;GRS180..ATH,ROY; GRS182,183200312-200509

main86101-30890iGRS180,181; GRS183200509-200802

main86101-30880iGRS181,182,183,184..ATH,ROY; GRS182,183,184..ATH,ROY; GRS182..ROYG200509-200802

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-30A00iGRS181;GRS180..ATH,ROY; GRS182,183200312-200509

main86101-30A20iGRS180,181200312-200509

main86101-30A10iGRS182,183..ATH,ROY; GRS182..ROYG; GRS183200312-200509

main86101-30B20supersedes 86101-30A00iGRS181,182,183,184..ATH,ROY; GRS182,183,184..ATH,ROY; GRS182..ROYG200509-200802

main86101-30B30supersedes 86101-30A00iGRS181,182,183,184..ATH,ROY; GRS181..ROYEX;GRS180..ATH,ROY; GRS182,183,184..ATH,ROY; GRS182..ROYG200509-200802

86251BWIRING,AMPLIFIER

main86251-30020iGRS181,182,183,184..ATH,ROY; GRS182,183,184..ATH,ROY; GRS182..ROYG200509-200802

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-30A00iGRS18#200312-200509

main86300-30A20iUZS18#200406-200606

86300GANTENNA ASSY, TELEVISION AMPLIFIER

main86300-30A10iGRS180..ROYEX; GRS181;GRS180..ATH,ROY; GRS182,183,184200509-200802

main86300-30A30iUZS18#200406-200606

9011906915

main90119-06915

9017906274

main90179-06274

7 parts on this diagram · 1 diagram in section
