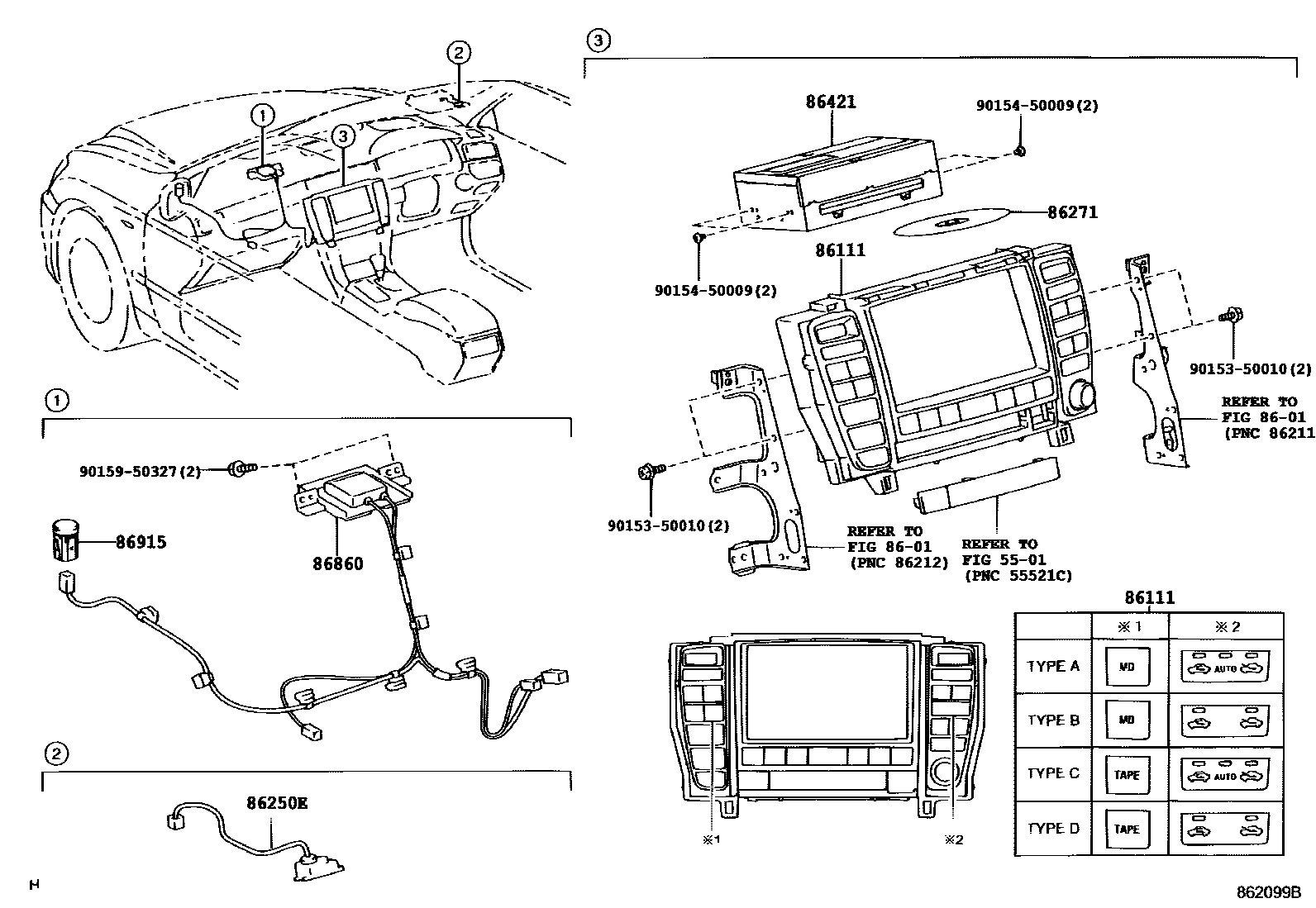

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86111MULTI-DISPLAY

main86111-30330iUZS18#..C200406-200606

main86111-30340iUZS186..A200406-200606

main86111-30270iGRS182..ATH,ROY; GRS183200312-200509

main86111-30280supersedes 86111-30480iGRS182,183..ATH,ROY200312-200509

main86111-30290iGRS180..ROY; GRS182..ATH,ROY; GRS182..ROYG; GRS183200312-200408

main86111-30300supersedes 86111-30480iGRS180..ATH,ROY; GRS182,183..ATH,ROY200312-200408

main86111-30310iGRS180..ROY; GRS182..ROY200312-200408

main86111-30320iGRS180; GRS182,183..ATH,ROY200312-200408

main86111-30470iGRS180..ROY; GRS182..ROY200408-200509

main86111-30480iGRS180..ROYEX; GRS181;GRS180..ATH,ROY; GRS182,183..ATH,ROY200408-200509

main86111-30530iGRS180,181,182..ATH; GRS181..ROYEX;GRS180,182,183..ROY200501-200509

86250EMICROPHONE ASSY, AMPLIFIER

main86250-30030iGRS182,183,UZS18#200312-200606

main86250-30040iGRS180,181; GRS181;GRS180..ATH,ROY; GRS182,183,184; GRS183200509-200802

86271DISC, DISC PLAYER

main86271-13061iGRS180; GRS180..ATH,ROY; GRS180..ROY; GRS182,183200312-200408

main86271-13062iUZS18#200406-200409

main86271-13063iGRS180..ROY; GRS180..ROYEX; GRS181;GRS180..ATH,ROY; GRS182,183,UZS18#200410-200506

main86271-13064iGRS182,183,UZS18#200507-200603

main86271-13065iUZS18#200604-200606

86421BOARD, NAVIGATION MODULE

main86421-30010supersedes 86421-30020iGRS180..ROY; GRS181;GRS180..ATH,ROY; GRS182,183..ATH,ROY; GRS182,UZS18#..A,C,ROYG; GRS182..ATH,ROY; GRS183200312-200409

main86421-30020iGRS180..ROY; GRS180..ROYEX; GRS181;GRS180..ATH,ROY; GRS182,183..ATH,ROY200507-200509

86860ANTENNA ASSY, NAVIGATION

main86870-30080iGRS181;GRS180,182,183..ATH,ROY; GRS182,183..ATH,ROY; GRS182,UZS18#..A,C,ROYG; GRS183200312-200509

main86870-30081iUZS18#200509-200606

main86870-30110supersedes 86870-30091iUZS18#200606

main86860-30130iGRS181;GRS180..ATH,ROY; GRS182,183..ATH,ROY200312-200509

main86870-30090supersedes 86860-30130iGRS181;GRS180..ATH,ROY; GRS182,183..ATH,ROY200312-200509

main86870-30091iGRS180..ROYEX; GRS181;GRS180..ATH,ROY; GRS182,183,184..ATH,ROY; GRS183200509-200802

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iUZS18#200606-200812

9015350010

main90153-50010

9015450009

main90154-50009

9015950327

main90159-50327

11 parts on this diagram · 3 diagrams in section
