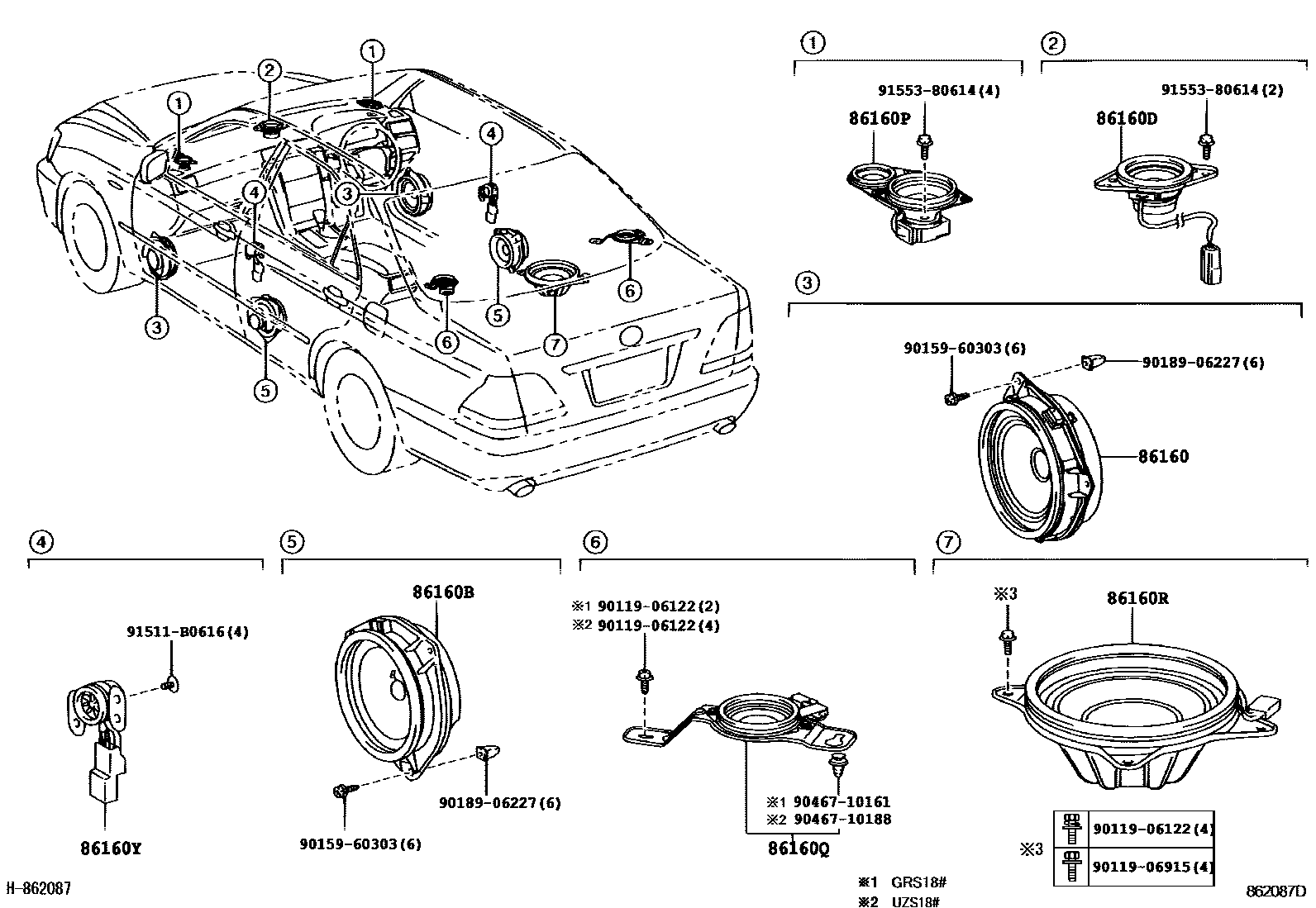

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-2B560×2iGRS180,181; GRS183200509-200802

main86160-48110×2supersedes 86160-2B560iGRS180;GRS181..ROYEX; GRS181..ATH; GRS181..ROYEX;GRS180..ATH,ROY; GRS182,183,184200509-200802

main86160-0WB10×2supersedes 86160-48110iGRS182,183200312-200509

86160BSPEAKER ASSY, REAR

main86160-2B560×2iGRS180,181; GRS183200509-200802

main86160-48110×2supersedes 86160-2B560iGRS180;GRS181..ROYEX; GRS181..ATH; GRS181..ROYEX;GRS180..ATH,ROY; GRS182,183,184200509-200802

main86160-0WB10×2supersedes 86160-48110iUZS18#200312-200606

86160DSPEAKER ASSY, STEREO COMPONENT, FRONT

main86160-30A40iGRS180;GRS181..ROYEX; GRS181..ATH; GRS181..ROYEX;GRS180..ATH,ROY; GRS182,183,184; GRS183200509-200802

main86160-0WA80supersedes 86160-30A40iGRS182,183200312-200509

86160PSPEAKER ASSY, FRONT NO.2

main86160-30A00iGRS18#200312-200509

main86160-30A10iGRS18#200509-200802

main86160-0WA30supersedes 86160-30A10iUZS18#200312-200606

main86160-0WA40supersedes 86160-30A10iUZS18#200312-200606

86160QSPEAKER ASSY, ROOF

main86160-0WA90iGRS182,183200312-200509

main86160-0WB00iGRS181,182,183,184..ATH,ROY,ROYG200509-200802

main86160-0WB70iUZS18#200606

main86160-0WB80iUZS18#200406-200606

86160RSPEAKER ASSY, STEREO COMPONENT

main86160-30A30iGRS180;GRS181..ROYEX; GRS181..ATH; GRS181..ROYEX;GRS180..ATH,ROY; GRS182,183,184200509-200802

main86160-0WA70supersedes 86160-30A30iGRS182,183200312-200509

main86160-0WB60supersedes 86160-30A50iUZS18#200606

86160YSPEAKER ASSY, REAR NO.2

main86160-0WA50iGRS181,182,183,184..ATH,ROY,ROYG200509-200802

main86160-0WA60iGRS181,182,183,184..ATH,ROY,ROYG200509-200802

9011906122

main90119-06122

9011906915

main90119-06915

9015960303

main90159-60303

9018906227

main90189-06227

9046710161

main90467-10161

9046710188

main90467-10188

91511B0616

main91511-B0616

9155380614

main91553-80614

15 parts on this diagram · 1 diagram in section
