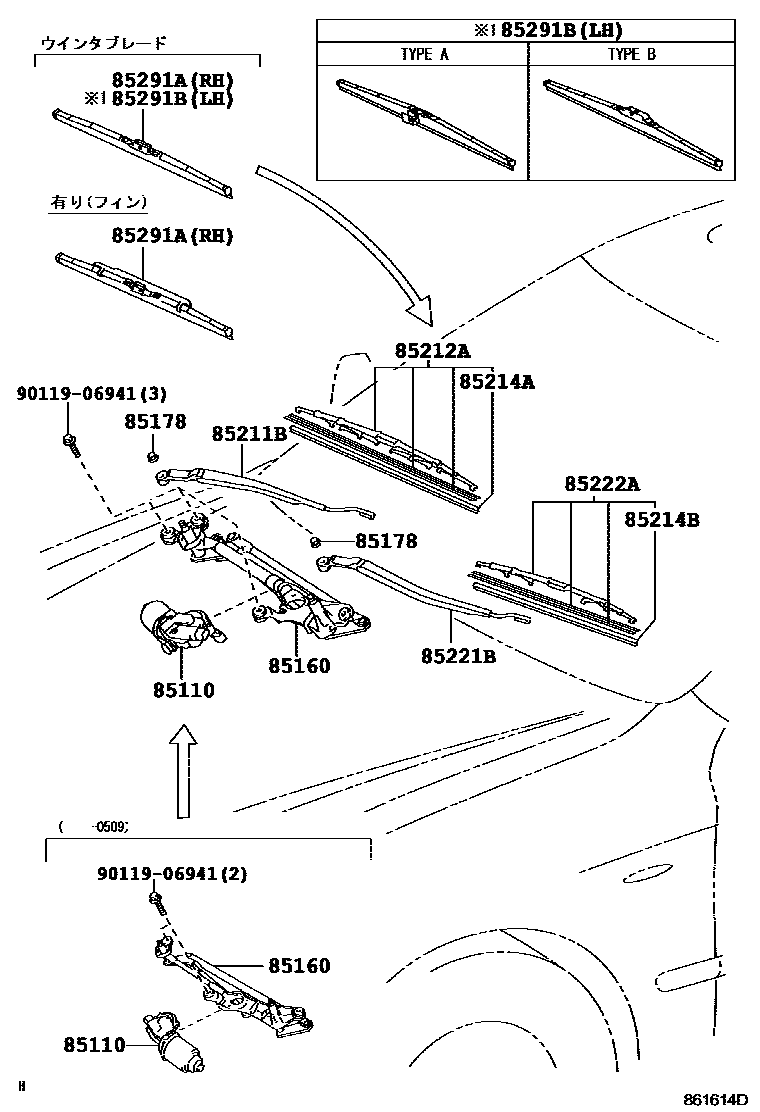

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30510iGRS18#200509-200608

main85110-30511iUZS18#200609

main85110-30490supersedes 85110-30481iGRS18#,UZS18#200312-200504

main85110-30491supersedes 85110-30481iGRS18#,UZS18#200505-200509

85160LINK ASSY, WINDSHIELD WIPER

main85150-30550supersedes 85150-30540iGRS18#,UZS18#200312-200509

main85150-30610supersedes 85150-30620iGRS18#200609-200802

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iGRS18#200312-200509

85211BARM, FRONT WIPER, RH

main85211-30620iGRS18#,UZS18#200312-200509

main85211-30630supersedes 85211-30690iUZS18#200606

85212ABLADE, FR WIPER, RH

main85212-30370iGRS18#200312-200509

85214ARUBBER, WIPER, RH

main85214-50100iGRS18#200312-200509

85214BRUBBER, WIPER, LH

main85214-46010iGRS18#,UZS18#200312-200509

main85214-46011iUZS18#200509-200606

85221BARM, FRONT WIPER, LH

main85221-30530supersedes 85221-30520iGRS18#200312-200509

85222ABLADE, FR WIPER, LH

main85222-46010iGRS18#,UZS18#200312-200509

main85222-46011iGRS18#200509-200802

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-50060supersedes 85291-50070iGRS18#200509-200802

main85291-50070iGRS182,183;GRS180,181..5FC200505-200606

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-22080iGRS180,182,183200312-200505

main85291-33050iGRS18#200312-200505

9011906941

main90119-06941

12 parts on this diagram · 1 diagram in section
