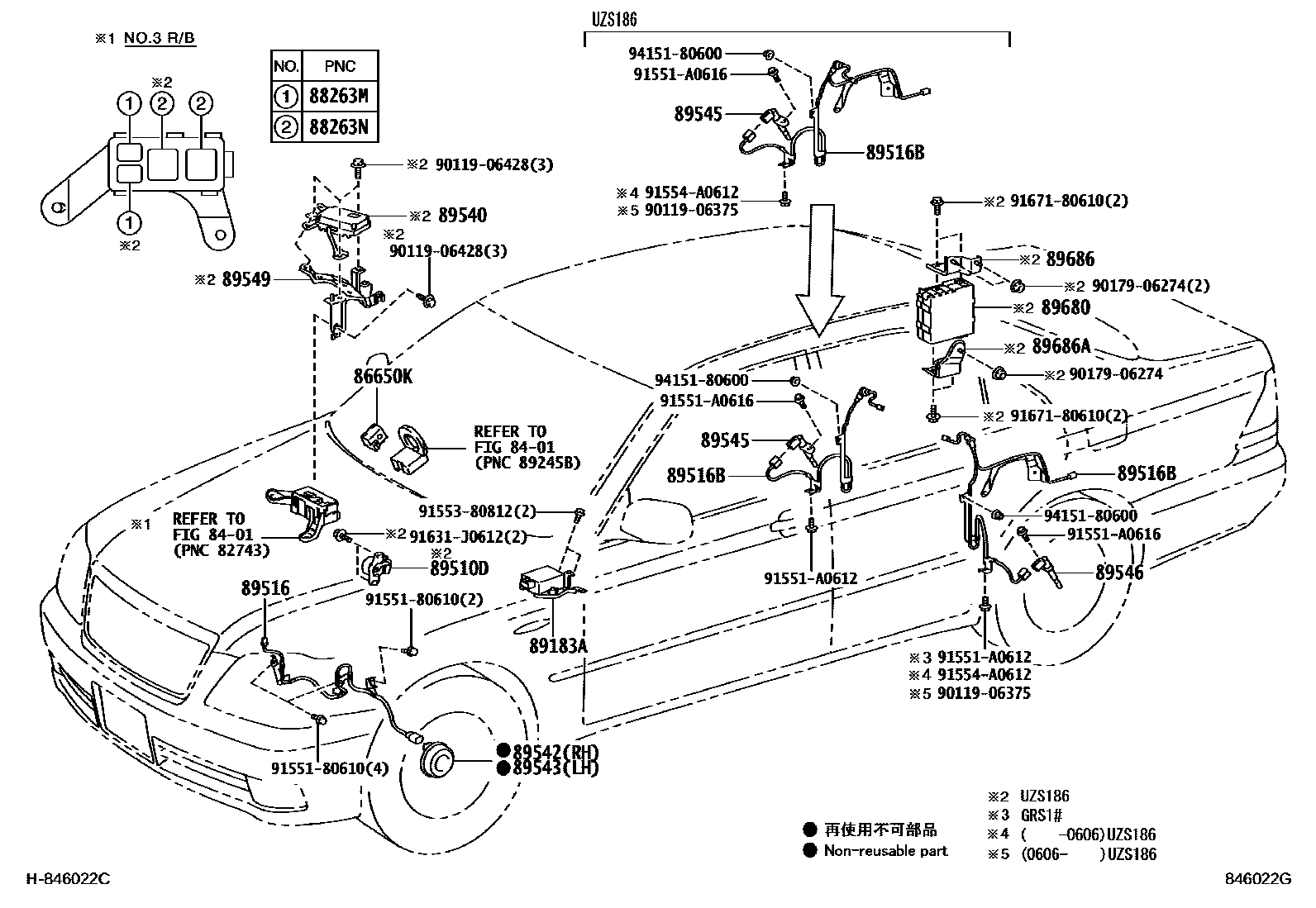

ABS & VSC

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86650KBUZZER ASSY, SKID CONTROL

main86652-48010iUZS18#200312-200606

88263MRELAY, ABS SOLENOID

main88263-32070iGRS180,181..5FC;GRS182,183,UZS187200312-200606

88263NRELAY, ABS MOTOR

main88263-21010iGRS180,181..5FC;GRS182,183,UZS187200312-200606

89183ASENSOR, YAWRATE

main89180-30070iGRS18#200312-200509

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-28010iUZS186200406-200606

89516WIRE, SKID CONTROL SENSOR

main89516-30020iGRS180,182,184200509-200802

main89516-30030iGRS180,182,184200509-200802

main89516-30040iGRS181,183200509-200802

main89516-30050iGRS181,183200509-200802

89516BWIRE, SKID CONTROL SENSOR

main89516-22020iGRS18#200412-200509

main89516-22030iGRS18#,UZS18#200412-200502

main89516-22040iGRS18#200503-200509

main89516-30080iGRS18#200312-200411

main89516-30090iGRS18#,UZS18#200312-200411

main89516-30120iUZS18#200406-200606

89540COMPUTER ASSY, SKID CONTROL

main89540-30620iUZS186200406-200606

main89540-30680iUZS186200606

89542SENSOR, SPEED, FRONT RH

main89542-30260iGRS180..5FC;GRS182,UZS186200312-200606

main89542-30270iGRS181,183200509-200802

89543SENSOR, SPEED, FRONT LH

main89543-30260iGRS180..5FC;GRS182,UZS186200312-200606

main89543-30270iGRS181,183,UZS187200312-200606

89545SENSOR, SPEED, REAR RH

main89545-30070iGRS180,181..5FC;GRS182,183,UZS18#200312-200606

89546SENSOR, SPEED, REAR LH

main89546-30070iGRS18#200509-200802

89549BRACKET, SKID CONTROL COMPUTER

main88269-30170iUZS186200406-200606

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-33010iUZS186200606

main89680-47010iUZS186200406-200502

main89680-47020iUZS186200503-200606

89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-30030iUZS186200406-200606

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-30040iUZS186200406-200606

9011906375

main90119-06375

9011906428

main90119-06428

9017906274

main90179-06274

9155180610

main91551-80610

91551A0612

main91551-A0612

91551A0616

main91551-A0616

9155380812

main91553-80812

91554A0612

main91554-A0612

91631J0612

main91631-J0612

9167180610

main91671-80610

9415180600

main94151-80600
