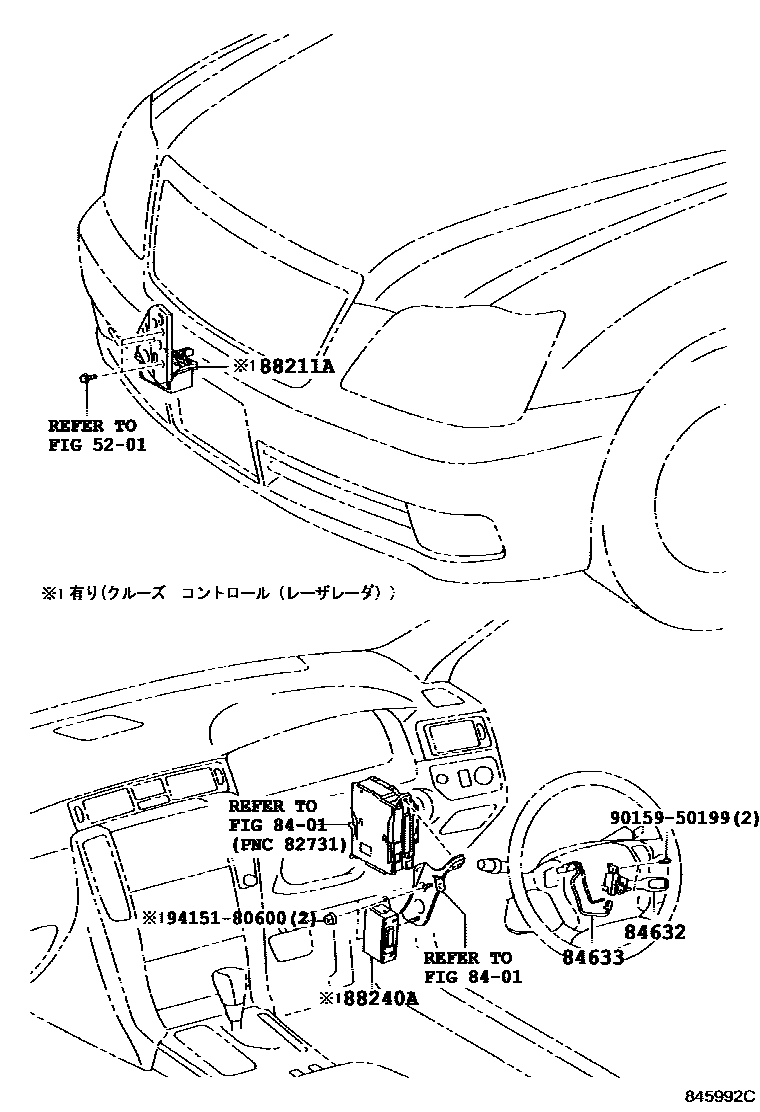

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84632SWITCH, CRUISE CONTROL MAIN

main84632-34010iGRS18#,UZS18#200312-200409

main84632-34011iGRS180,181..5FC;GRS182,183,UZS18#200409-200606

main84632-58010iUZS186; UZS186..C; UZS187200406-200409

main84632-58011iGRS182,183,UZS187..C,ROY,ROYG; UZS186; UZS186..C; UZS187200409-200606

84633WIRE, CRUISE CONTROL SWITCH

main84633-48020iGRS180,181..5FC;GRS182,183,UZS18#200312-200606

main84633-48010iUZS186; UZS186..C; UZS187200406-200606

88211ASENSOR, LASER RADAR

main88210-30040iGRS182,183..ROY,ROYG200312-200509

main88210-30050iUZS186; UZS186..C; UZS187200406-200606

main88210-30130iUZS186; UZS186..C; UZS187200606

88240ACOMPUTER ASSY, DISTANCE CONTROL

main88240-30390iGRS182,183..ROY,ROYG200312-200509

main88240-30400iUZS186; UZS186..C; UZS187200406-200407

main88240-30430iUZS186; UZS186..C; UZS187200408-200606

main88240-30450iGRS182,183200509-200802

main88240-30480iUZS186; UZS186..C; UZS187200606

9015950199

main90159-50199

9415180600

main94151-80600

8 parts on this diagram · 2 diagrams in section
