SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1������-� 0004 1�������� �������� 0005 1��� 0006 1������������1/2 0007 1������������2/2 0008 1������������2/2 0009 1������������1/2 0010 1������������2/2 0011 1�������� & �����-��� ���� 0012 1�-� & �� �-���� 0013 1���,�-�,��� & ����-��

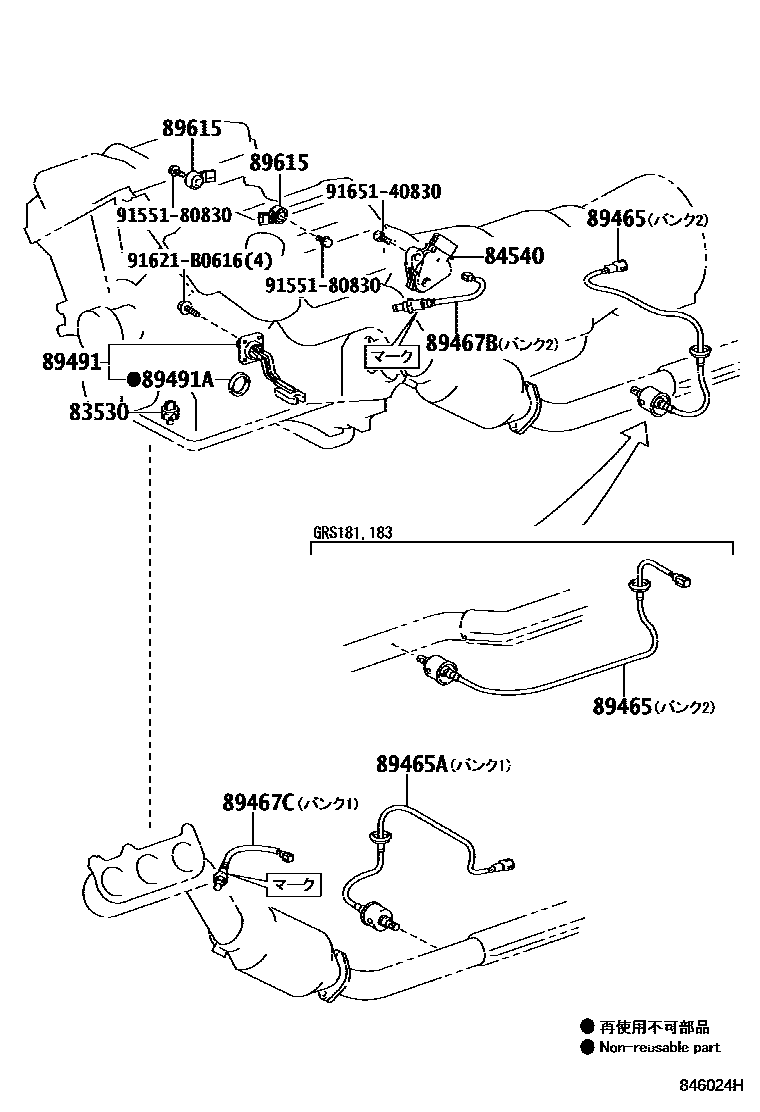

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGRS18#200312-200802

84540SWITCH ASSY, NEUTRAL START

main84540-30320iGRS180..5FC;GRS182,183,UZS18#200312-200812

main84540-71010iGRS181200408-200802

89465SENSOR, OXYGEN

main89465-30710iGRS180,182200312-200509

main89465-30720iGRS181,183200312-200509

main89465-30730iGRS180,182,184200509-200802

main89465-30750iUZS187200406-200812

main89465-30760iUZS187200406-200812

main89465-30840iGRS181,183200509-200802

main89465-50120iUZS186200406-200812

main89465-50130iUZS186200406-200812

89465ASENSOR, OXYGEN NO.2

main89465-30710iGRS18#200312-200509

main89465-30730iGRS18#200509-200802

main89465-30740iUZS186200406-200812

main89465-30770iUZS187200406-200812

main89465-30780iUZS187200406-200812

89467BSENSOR, AIR FUEL RATIO

main89467-30010iGRS18#200312-200509

main89467-30010iGRS18#200509-200802

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-30010iGRS180,182,184200509-200802

main89467-30010iGRS180,182200312-200509

main89467-30020iGRS181,183200312-200509

main89467-30020iGRS181,183200509-200802

89491SENSOR, ENGINE OIL LEVEL

main89491-30060iGRS180,182200312-200802

main89491-30070iGRS181,183200312-200802

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGRS18#200312-200802

89615SENSOR, KNOCK CONTROL

main89615-20090iGRS18#200312-200802

9155180830

main91551-80830

91621B0616

main91621-B0616

9165140830

main91651-40830

12 parts on this diagram · 13 diagrams in section
