METER

0001 1�-� 0002 1���������������� ��(��� ���-)0003 1���������������� 0004 1����

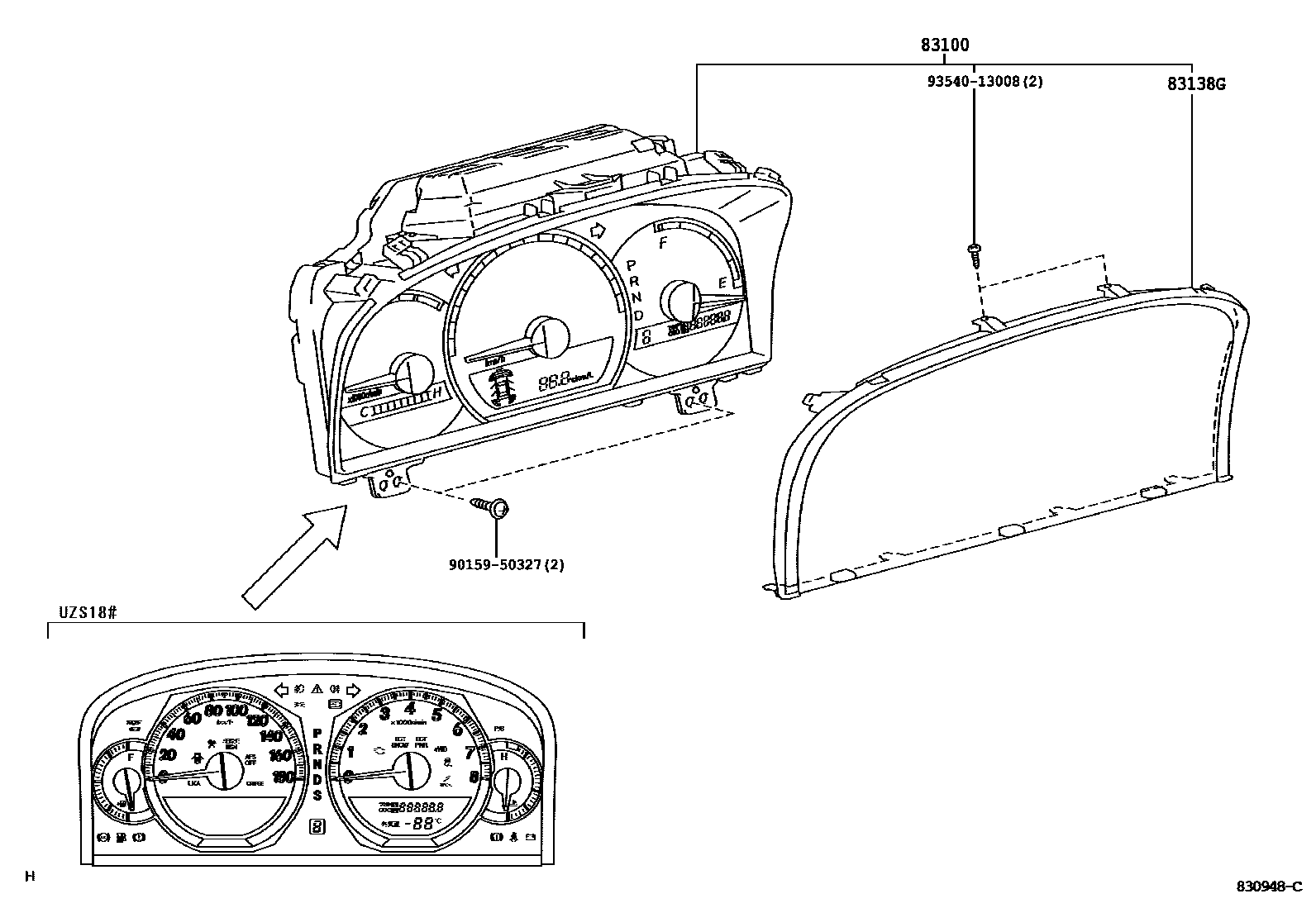

83100METER ASSY, COMBINATION

main83800-30A10supersedes 83800-30A00iGRS182..ROY; GRS183;GRS182..ATH200312-200509

main83800-30A20iGRS180,181200312-200509

main83800-30A30supersedes 83800-30D40iGRS182,183..ROY; GRS182..ATH; GRS182..ROY; GRS182..ROYG; GRS183200312-200401

main83800-30A31iGRS182,183..ROY; GRS182..ATH; GRS182..ROY; GRS182..ROYG; GRS183200402-200509

main83800-30D50iGRS180,184200509-200802

main83800-30D60iGRS181200509-200802

main83800-30D70iGRS182,183..ROY; GRS182..ROYG; GRS183200509-200802

main83800-30A50supersedes 83800-30D31iUZS18#200406-200407

main83800-30A51supersedes 83800-30D31iUZS18#200408-200411

main83800-30D20iUZS186; UZS186..C; UZS187200408-200411

main83800-30D21supersedes 83800-30D31iUZS18#200606

main83800-30D30iUZS186; UZS186..C; UZS187200408-200411

main83800-30E30iGRS184200509-200802

83138GGLASS, COMBINATION METER

main83852-30A00iGRS18#200312-200509

9015950327

main90159-50327

9354013008

main93540-13008

4 parts on this diagram · 4 diagrams in section
