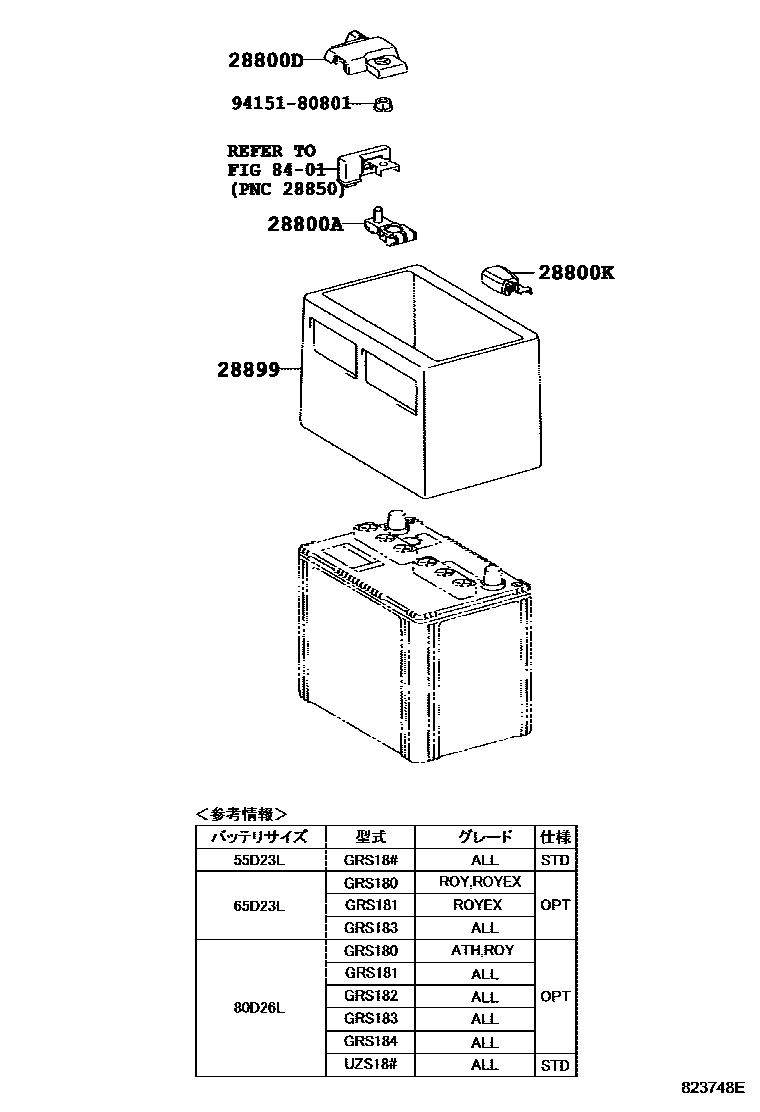

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i3GRFSE,4GRFSE..GRS18#200312-200509

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-30640i3GRFSE,4GRFSE..GRS18#200312-200509

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-50450i3UZFE..UZS18#200312-200606

28899INSULATOR, BATTERY

main28899-31010i2GRFSE,3GRFSE,4GRFSE..GRS18#200509-200802

main28899-31020i3UZFE..UZS18#200406-200606

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
