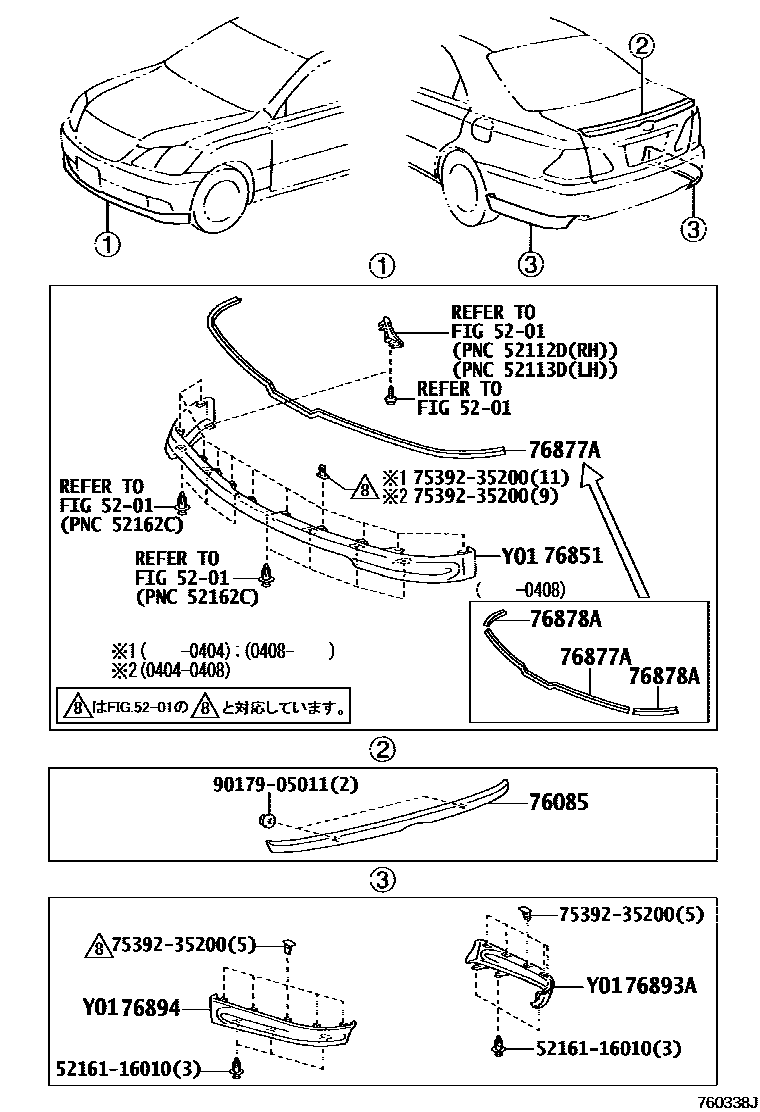

MUDGUARD & SPOILER

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

76085SPOILER SUB-ASSY, REAR

main76085-30040-A0iGRS180,181,182..ATH200312-200802

WHITE PEARL CS.,062

main76085-30040-B0iGRS180,181,182..ATH200312-200509

SILVER ME.,1C0

main76085-30040-B1iGRS180,181,182..ATH200408-200509

SATIN PEARL MC.,1F3

main76085-30040-B1iGRS180,181,184..ATH200509-200802

PREMIUM SILVER PEARL,1F3

main76085-30040-B2iGRS180,181,184..ATH200509-200802

SILVER ME.,1F7

main76085-30040-B3iGRS180,181,184..ATH200509-200802

QUARTZ GRAY PM.,1G4

main76085-30040-C0iGRS180,181,184..ATH200312-200802

BLACK,202

main76085-30040-D0iGRS180,181,184..ATH200509-200704

GINGER RED M.M.,3R6

main76085-30040-D9iGRS180,181,184..ATH200704-200802

BLACKISH RED MC.,3R0

main76085-30040-J0iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

76851COVER, FRONT SPOILER

main76851-30080-A0iGRS180,182..ATH200312-200404

WHITE PEARL CS.,062

main76851-30080-B0iGRS180,182..ATH200312-200404

SILVER ME.,1C0

main76851-30080-C0iGRS180,182..ATH200312-200404

BLACK,202

main76851-30080-J0iGRS180,182..ATH200312-200404

LT.BLUE M.M.,8S0

main76851-30081-A0iGRS180,182..ATH200404-200408

WHITE PEARL CS.,062

main76851-30081-B0iGRS180,182..ATH200404-200408

SILVER ME.,1C0

main76851-30081-C0iGRS180,182..ATH200404-200408

BLACK,202

main76851-30081-J0iGRS180,182..ATH200404-200408

LT.BLUE M.M.,8S0

main76851-30082-A0iGRS180,181,182..ATH200408-200509

WHITE PEARL CS.,062

main76851-30082-B0iGRS180,181,182..ATH200408-200509

SILVER ME.,1C0

main76851-30082-B1iGRS180,181,182..ATH200408-200509

PREMIUM SILVER PEARL,1F3

main76851-30082-C0iGRS180,181,182..ATH200408-200509

BLACK,202

main76851-30082-J0iGRS180,181,182..ATH200408-200509

LT.BLUE M.M.,8S0

76877APROTECTOR, FRONT SPOILER

main76877-30010iGRS180,182..ATH200312-200404

main76877-30011iGRS180,182..ATH200404-200408

main76877-30012iGRS180,181,182..ATH200408-200509

76878APROTECTOR, FRONT SPOILER SIDE, LH

main76878-30010iGRS180,182..ATH200312-200404

main76878-30011iGRS180,182..ATH200404-200408

76893ACOVER, REAR SPOILER, RH

main76893-30030-A0iGRS180,181,182..ATH200312-200802

WHITE PEARL CS.,062

main76893-30030-B0iGRS180,181,182..ATH200312-200509

SILVER ME.,1C0

main76893-30030-B1iGRS180,181,184..ATH200408-200802

PREMIUM SILVER PEARL,1F3

main76893-30030-B2iGRS180,181,184..ATH200509-200802

SILVER ME.,1F7

main76893-30030-B3iGRS180,181,184..ATH200509-200802

QUARTZ GRAY PM.,1G4

main76893-30030-C0iGRS180,181,182..ATH200312-200802

BLACK,202

main76893-30030-D0iGRS180,181,184..ATH200509-200704

GINGER RED M.M.,3R6

main76893-30030-D1iGRS180,181,184..ATH200704-200802

BLACKISH RED MC.,3R0

main76893-30030-J0iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

76894COVER, REAR SPOILER, LH

main76894-30030-A0iGRS180,181,182..ATH200312-200802

WHITE PEARL CS.,062

main76894-30030-B0iGRS180,181,182..ATH200312-200509

SILVER ME.,1C0

main76894-30030-B1iGRS180,181,184..ATH200408-200802

PREMIUM SILVER PEARL,1F3

main76894-30030-B2iGRS180,181,184..ATH200509-200802

SILVER ME.,1F7

main76894-30030-B3iGRS180,181,184..ATH200509-200802

QUARTZ GRAY PM.,1G4

main76894-30030-C0iGRS180,181,184..ATH200312-200802

BLACK,202

main76894-30030-D0iGRS180,181,184..ATH200509-200704

GINGER RED M.M.,3R6

main76894-30030-D1iGRS180,181,184..ATH200704-200802

BLACKISH RED MC.,3R0

main76894-30030-J0iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

7539235200RETAINER, OUTSIDE MOULDING

main75392-35200

9017905011

main90179-05011

10 parts on this diagram · 2 diagrams in section
