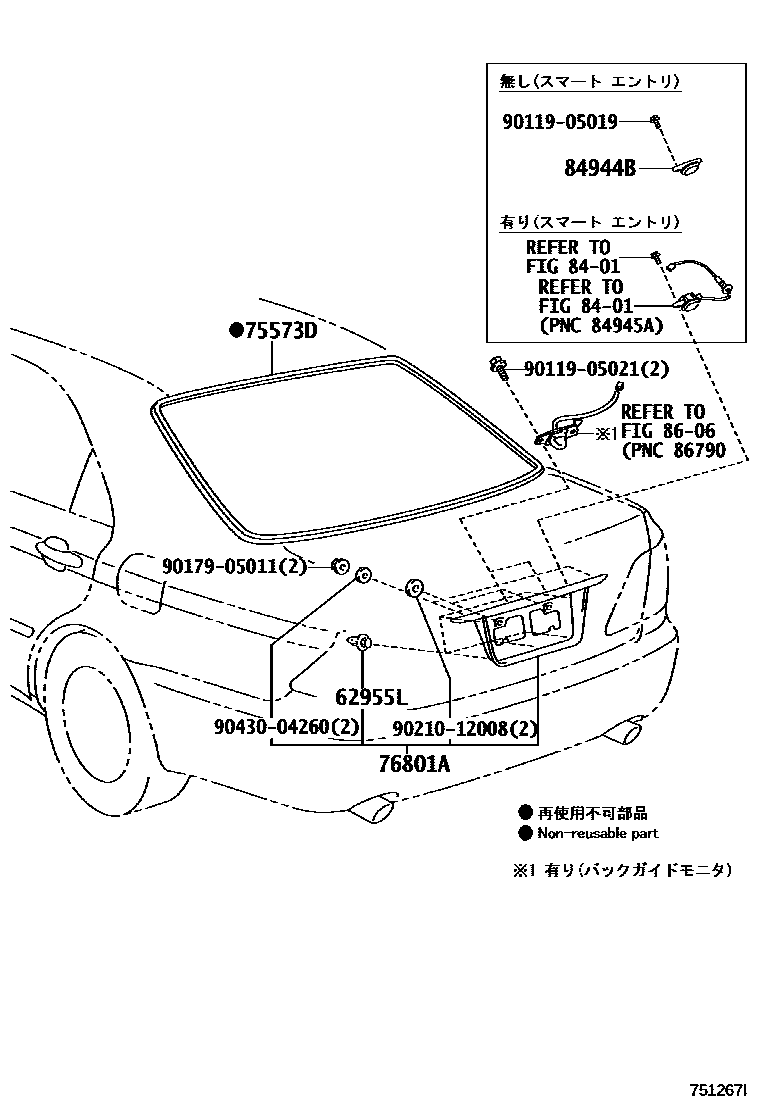

REAR MOULDING

0001 1 0002 1

62955LRETAINER, QUARTER VENT LOUVER

main62955-20040×5iGRS18#200412-200509

75573DMOULDING, BACK WINDOW, OUTSIDE

main75573-30360iGRS18#200509-200802

main75573-30370iUZS18#200406-200606

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-30052-A0supersedes 76801-30041-A0iGRS180,181; GRS182,183,184200509-200605

main76801-30052-A1supersedes 76801-30042-A1iGRS180,181; GRS182,183,184200509-200605

main76801-30052-B1supersedes 76801-30042-B1iGRS180,181; GRS182,183,184200509-200605

main76801-30052-B2supersedes 76801-30042-B2iGRS180,181; GRS182,183,184200509-200605

main76801-30052-B3supersedes 76801-30042-B3iGRS180,181; GRS182,183,184200509-200605

main76801-30052-C0supersedes 76801-30042-C0iGRS180,181; GRS182,183,184200509-200605

main76801-30052-D1supersedes 76801-30042-D1iGRS180,181; GRS182,183,184200509-200605

main76801-30052-J2supersedes 76801-30041-J2iGRS180,181; GRS182,183,184200509-200605

main76801-30053-A1iGRS180,181; GRS182,183,184200606-200802

main76801-30053-B1iGRS180,181; GRS182,183,184200606-200802

main76801-30053-B2iGRS180,181; GRS182,183,184200606-200802

main76801-30053-B3iGRS180,181; GRS182,183,184200606-200802

main76801-30053-C0iGRS180,181; GRS182,183,184200606-200802

main76801-30053-D0supersedes 76801-30042-D0iGRS180,181; GRS182,183,184200704-200802

main76801-30053-D1iGRS180,181; GRS182,183,184200606-200704

main76801-30053-J2supersedes 76801-30042-J2iGRS180,181..ROY,ROYEX; GRS182,183200606-200802

main76801-30100-B1iUZS18#200606

SILVER ME.,1F7

main76801-30100-B2iUZS18#200606

GRAY ME.,1F9

main76801-30040-A0iGRS182,183..ROY200408-200411

main76801-30040-A1iGRS182,183..ATH,ROY200408-200411

main76801-30040-B0iGRS182,183..ATH,ROY200408-200411

main76801-30040-B1iGRS182,183..ATH,ROY200408-200411

main76801-30040-C0iGRS182,183..ATH,ROY200408-200411

main76801-30040-D0iGRS182,183..ROY200408-200411

main76801-30040-J0iGRS182,183..ROY200408-200411

main76801-30040-J1supersedes 76801-30051-J1iGRS182..ATH200408-200411

main76801-30041-A0iGRS180,181..ROY,ROYEX; GRS182,183..ROY200412-200509

main76801-30041-A1iGRS180,181; GRS182,183..ATH,ROY200412-200509

main76801-30041-A3iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

main76801-30041-B0iGRS180,181; GRS182,183..ATH,ROY200412-200509

main76801-30041-B1iGRS180,181; GRS183200509-200605

main76801-30041-B2iGRS180,181; GRS183200509-200605

main76801-30041-B3iGRS180,181; GRS183200509-200605

main76801-30041-C0iGRS180,181; GRS183200509-200605

main76801-30041-D0iGRS181;GRS180,183..ATH,ROY200603-200703

main76801-30041-D1iGRS180,181; GRS183200509-200605

main76801-30041-J0iGRS180,181..ROY,ROYEX; GRS182,183..ROY200412-200509

main76801-30041-J1supersedes 76801-30051-J1iGRS180,181..ATH; GRS182..ATH200412-200509

main76801-30041-J2iGRS180,181; GRS183200509-200605

main76801-30042-A0iGRS183200606-200704

main76801-30042-A1iGRS183200704-200802

main76801-30042-B1iGRS183200704-200802

main76801-30042-B2iGRS183200704-200802

main76801-30042-B3iGRS183200704-200802

main76801-30042-C0iGRS183200704-200802

main76801-30042-D0iGRS180,181; GRS183200704-200802

main76801-30042-D1iGRS180,181; GRS183200606-200704

main76801-30042-J2iGRS183200704-200802

main76801-30050-A0supersedes 76801-30041-A0iGRS180,181..ROY,ROYEX200312-200411

main76801-30050-A1supersedes 76801-30041-A1iGRS180,181200312-200411

main76801-30050-B0supersedes 76801-30051-B0iGRS182,183200312-200408

main76801-30050-B1supersedes 76801-30041-B1iGRS180,181200312-200411

main76801-30050-C0supersedes 76801-30041-C0iGRS180,181200312-200411

main76801-30050-D0supersedes 76801-30041-D0iGRS180,181..ROY,ROYEX200312-200411

main76801-30050-J0supersedes 76801-30051-J0iGRS182,183..ROY,ROYG200312-200408

main76801-30050-J1supersedes 76801-30051-J1iGRS182..ATH200312-200408

main76801-30051-A0supersedes 76801-30041-A0iGRS180,181..ROY,ROYEX; GRS182,183..ROY,ROYG200412-200509

main76801-30051-A1supersedes 76801-30041-A1iGRS180,181; GRS182,183200412-200509

main76801-30051-A3iGRS181..ROYEX;GRS180,182,183..ROY200501-200509

main76801-30051-B0supersedes 76801-30041-B0iGRS180,181; GRS182,183200412-200509

main76801-30051-B1supersedes 76801-30041-B1iGRS180,181; GRS182,183200412-200509

main76801-30051-B2iGRS180,181,182..ATH; GRS181..ROYEX;GRS180,182,183..ROY200501-200509

main76801-30051-C0supersedes 76801-30041-C0iGRS180,181; GRS182,183200412-200509

main76801-30051-D0supersedes 76801-30041-D0iGRS180,181..ROY,ROYEX; GRS182,183..ROY,ROYG200412-200509

main76801-30051-J0supersedes 76801-30041-J0iGRS180,181..ROY,ROYEX; GRS182,183..ROY,ROYG200412-200509

main76801-30051-J1supersedes 76801-30041-J1iGRS180,181..ATH; GRS182..ATH200412-200509

main76801-30052-D0iGRS181;GRS180,182,183,184..ATH,ROY200603-200703

main76801-30053-A0supersedes 76801-30042-A0iGRS180,181..ROY,ROYEX; GRS182,183200606-200802

main76801-30130-A0supersedes 76801-30120-A0iUZS18#200406-200606

main76801-30130-B0supersedes 76801-30120-B0iUZS18#200406-200606

main76801-30130-B1supersedes 76801-30120-B1iUZS18#200406-200606

main76801-30130-C0supersedes 76801-30120-C0iUZS18#200406-200606

main76801-30130-D0supersedes 76801-30120-D0iUZS18#200406-200606

main76801-30130-G0supersedes 76801-30120-G0iUZS18#200406-200606

main76801-30130-J0supersedes 76801-30120-J0iUZS18#200406-200606

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84944BCOVER, LUGGAGE ELECTRICAL KEY SWITCH

main84944-30010iGRS180,181..ROYEX; GRS180..ROY; GRS183200509-200802

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9011905019

main90119-05019

9011905021

main90119-05021

9017905011

main90179-05011

9021012008

main90210-12008

9043004260

main90430-04260

11 parts on this diagram · 2 diagrams in section
