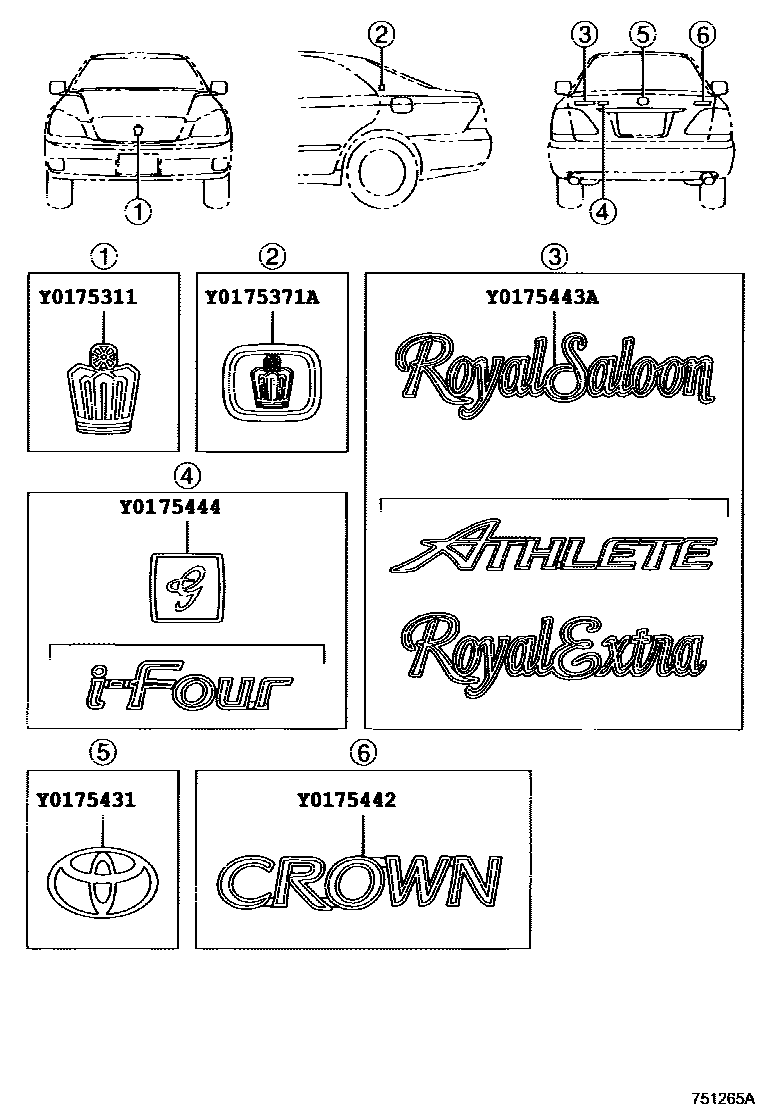

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1 0003 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-30390iGRS18#..ROY,ROYEX,ROYG200312-200509

main75311-30400iGRS180,181,184..ATH200509-200802

main75311-30410iUZS18#200406-200606

main53141-30060iUZS186..C; UZS187200606-200812

75371AEMBLEM, QUARTER PANEL

main75371-30200×2iGRS18#200312-200509

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main90975-02012iGRS18#200312-200509

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-30180iGRS18#200312-200509

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-30410iGRS180,182,183..ROY,ROYG200312-200509

main75443-30420iGRS180,181,184..ATH200509-200802

main75443-30430iGRS180,181..ROYEX200509-200802

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75443-30440iGRS182..ROYG200312-200509

main75445-30090iUZS187200509-200606

6 parts on this diagram · 3 diagrams in section
