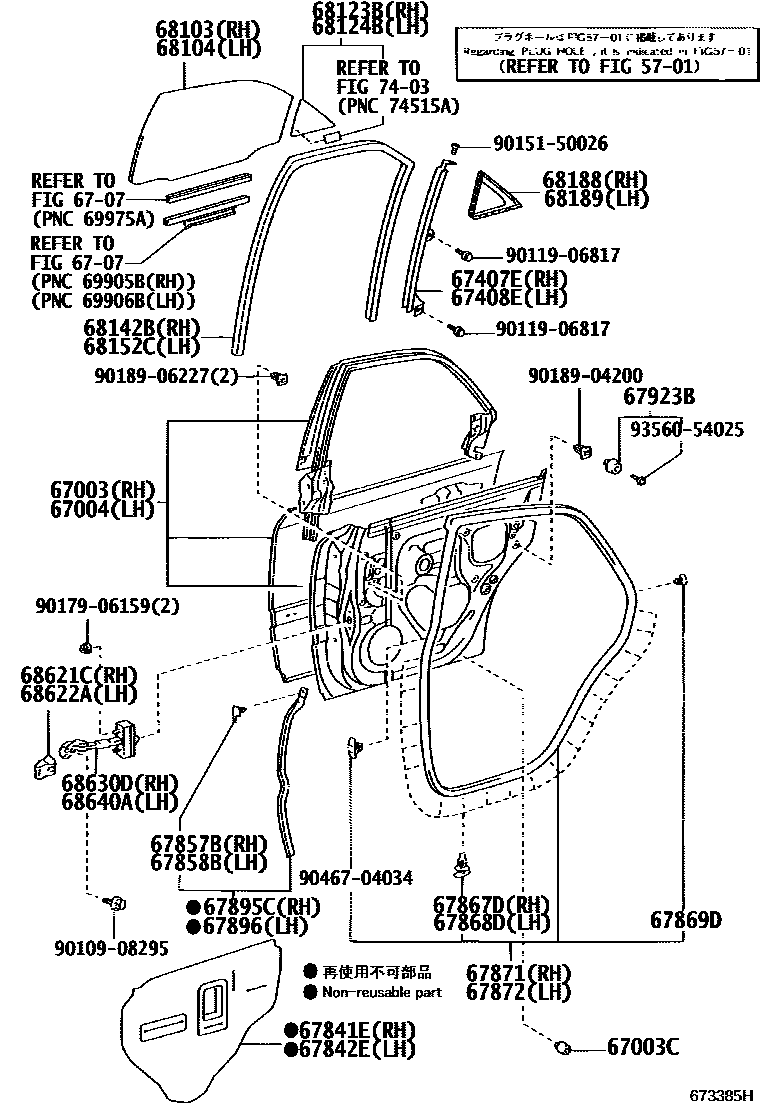

REAR DOOR PANEL & GLASS

0001 1������� 0002 1������ 0004 1������

5701HOLE PLUG

→ Go to FIG 57-01

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-30590iGRS18#200312-200509

main67003-30610iUZS18#200406-200606

67003CCUSHION, REAR DOOR PANEL

main90541-09069×2iGRS18#200509-200802

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-30590iGRS18#200509-200802

main67004-30610iUZS18#200406-200606

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-30180iGRS18#200509-200802

main67407-30200iUZS18#200406-200606

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-30170iGRS18#200509-200802

main67408-30190iUZS18#200406-200606

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-30410iGRS18#200509-200802

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-30270iGRS18#200312-200509

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-30030iGRS18#200312-200509

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-30040iGRS18#200312-200509

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×18iUZS18#200606

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×18iGRS18#200312-200509

67869DCLIP, DOOR WEATHERSTRIP

main90467-05017-C0×2iGRS180,181..5FC;GRS182,183,UZS18#200312-200606

BLACK

67871WEATHERSTRIP, REAR DOOR, RH

main67871-30230iGRS18#200312-200509

main67871-30280iUZS18#200606

67872WEATHERSTRIP, REAR DOOR, LH

main67872-30230iGRS18#200312-200509

main67872-30290iUZS18#200606

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-30010iGRS18#200312-200509

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-30010iUZS18#200312-200606

67923BCUSHION, REAR DOOR STIFFENER, NO.1

main67923-24030×2iGRS18#200509-200802

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-30770iUZS18#200606-200812

main68113-30780supersedes 68113-30740iGRS18#200402-200509

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-30690iUZS18#200406-200606

main68114-30700supersedes 68114-30660iGRS18#200509-200802

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-30590iUZS18#200406-200606

main68123-30600supersedes 68123-30560iGRS18#200509-200802

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-30530iUZS18#200606

main68124-30540supersedes 68124-30500iGRS18#200402-200509

68142BRUN, REAR DOOR WINDOW, RH

main68142-30180iGRS18#200312-200509

main68142-30190iUZS18#200406-200606

68152CRUN, REAR DOOR GLASS, LH

main68152-30080iGRS18#200312-200509

main68152-30100iUZS18#200606

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-30150iGRS18#200509-200802

main68188-30170iUZS18#200406-200606

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-30130iGRS18#200312-200509

main68189-30150iUZS18#200406-200606

68621CCOVER, REAR DOOR CHECK, RH

main68621-33010iGRS18#200509-200802

68622ACOVER, REAR DOOR CHECK, LH

main68622-33010iUZS18#200312-200606

68630DCHECK ASSY, REAR DOOR, RH

main68630-30190iUZS18#200312-200606

68640ACHECK ASSY, REAR DOOR, LH

main68640-30090iGRS18#200312-200509

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9010908295

main90109-08295

9011906817

main90119-06817

9015150026

main90151-50026

9017906159

main90179-06159

9018904200

main90189-04200

9018906227

main90189-06227

9046704034

main90467-04034

9356054025

main93560-54025

40 parts on this diagram · 3 diagrams in section
