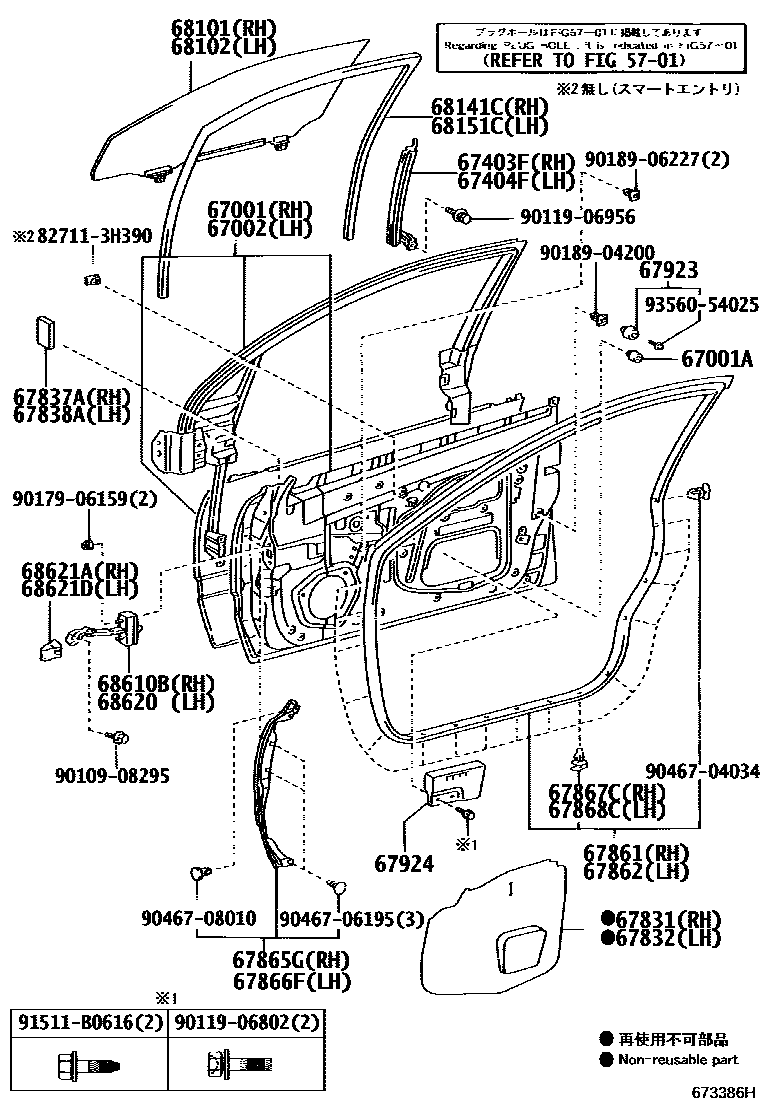

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������� 0003 1������ 0007 1�������

5701HOLE PLUG

→ Go to FIG 57-01

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-30830iGRS18#,UZS18#200312-200412

main67001-30831iUZS18#200606-200812

67001ACUSHION, FRONT DOOR PANEL

main90541-09069×2iGRS18#200312-200509

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-30A00iGRS18#,UZS18#200312-200412

main67002-30A01iGRS18#200501-200509

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-30170iUZS18#200606

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-30170iUZS18#200312-200606

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-30410iUZS18#200312-200606

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-30260iGRS18#200312-200509

67837ASEAL, FRONT DOOR VENT, RH

main67837-51010iGRS18#200509-200802

67838ASEAL, FRONT DOOR VENT, LH

main67837-51010iUZS18#200312-200606

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-30270iGRS18#200509-200802

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-30270iGRS18#200509-200802

67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-30030iGRS18#200509-200802

67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-30030iGRS18#200509-200802

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×14iGRS18#200706-200802

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×15iUZS18#200606-200706

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-24030×2iGRS18#200509-200802

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67923-30100iUZS18#200312-200606

main67923-30101iUZS18#200709

main67924-30070iGRS18#200509-200709

main67924-30071iUZS18#200709

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-30760iUZS18#200606-200809

main68101-30761iUZS18#200810-200812

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-30760iGRS180,181..5FC;GRS182,183,UZS18#200312-200606

main68102-30761iUZS18#200809-200812

68141CRUN, FRONT DOOR GLASS, RH

main68141-30330iGRS18#,UZS18#200312-200501

main68141-30331iUZS18#200606

68151CRUN, FRONT DOOR GLASS, LH

main68151-30170iGRS18#,UZS18#200312-200501

main68151-30171iGRS18#200509-200802

68610BCHECK ASSY, FRONT DOOR, RH

main68610-30170iGRS18#200509-200802

68620CHECK ASSY, FRONT DOOR, LH

main68620-30090iGRS18#200509-200802

68621ACOVER, FRONT DOOR CHECK, RH

main68621-33010iGRS18#200509-200802

68621DCOVER, FRONT DOOR CHECK, LH

main68622-33010iUZS18#200606

827113H390WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H390

9010908295

main90109-08295

9011906802

main90119-06802

9011906956

main90119-06956

9017906159

main90179-06159

9018904200

main90189-04200

9018906227

main90189-06227

9046704034

main90467-04034

9046706195

main90467-06195

9046708010

main90467-08010

91511B0616

main91511-B0616

9356054025

main93560-54025

38 parts on this diagram · 4 diagrams in section
