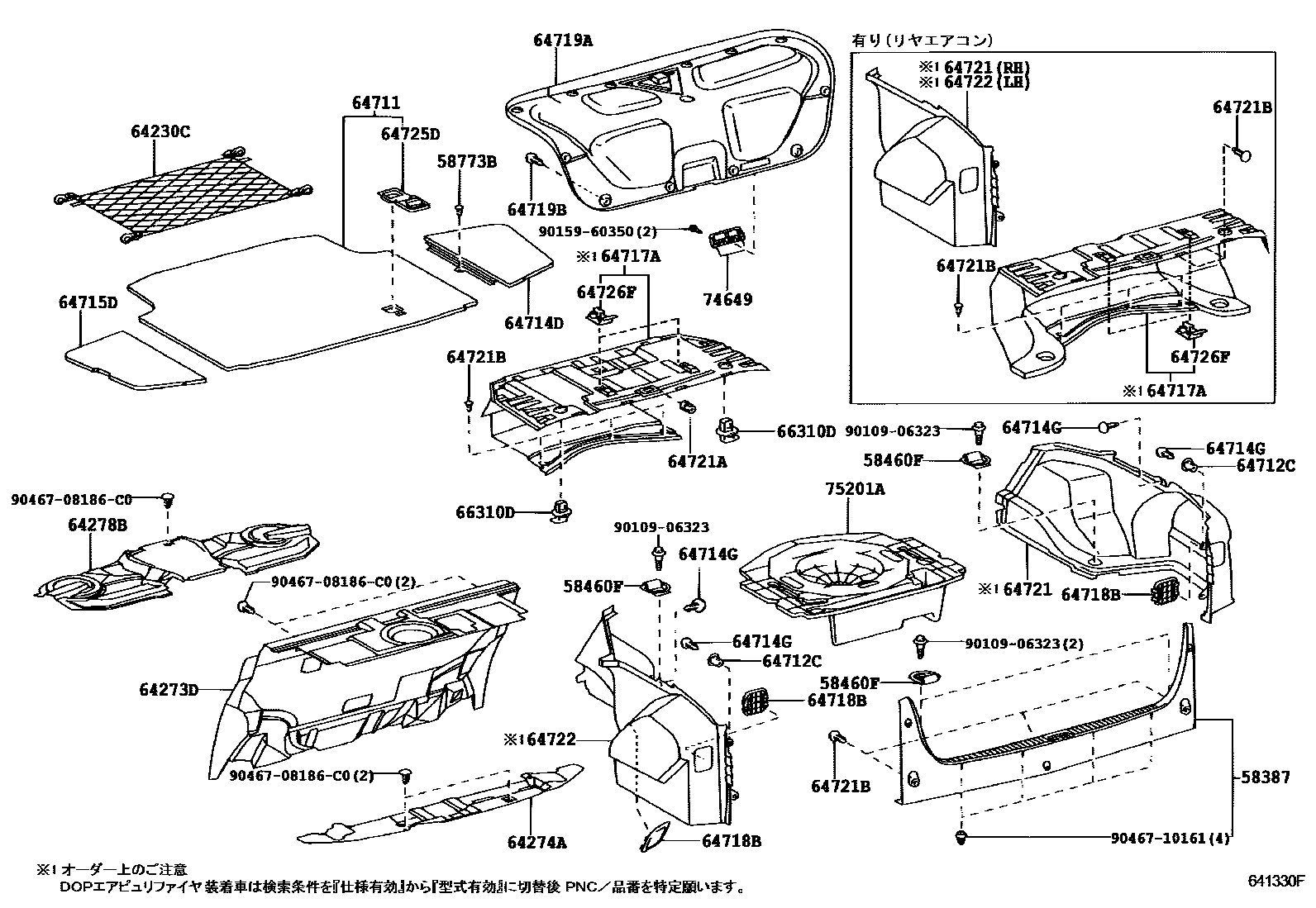

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1 0003 1 0004 1

58387PLATE, REAR FLOOR FINISH

main58387-30140-C0iGRS18#..ROY,ROYEX,ROYG; GRS180,181,182..ATH200312-200509

BLACK,TRIM0#,1#; BLACK,TRIM1#,2#

main58387-30160-C0iUZS18#200406-200603

BLACK,TRIM0#,2#

58460FSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33010×4iUZS18#200606

58773BCLIP(FOR LUGGAGE COMPARTMENT SIDE COVER)

main90467-08186-C0iGRS18#200509-200802

BLACK

64230CNET ASSY, ROOM PARTITION

main64230-30030iGRS18#200509-200802

64273DPAD, ROOM PARTITION, NO.1

main64273-30100iGRS18#..ATH,ROY,ROYEX200312-200509

main64273-30110iGRS180,182..ROY; GRS180..ROY; GRS182..ATH; GRS182..ROYG; GRS183200312-200509

main64273-30140iUZS186..A200606-200812

main64273-30150iUZS18#..C200406-200606

64274APAD, ROOM PARTITION, NO.2

main64274-30050iGRS18#200509-200802

main64274-30060iUZS18#200406-200606

64278BPAD, ROOM PARTITION, NO.3

main64278-30010iGRS180,181..5FC;GRS182,183,UZS18#200312-200606

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64701-30020-C0iGRS18#..ROY,ROYEX,ROYG; GRS180,181,182..ATH200312-200509

BLACK,TRIM0#,1#; BLACK,TRIM1#,2#

main64701-30040-C0iUZS18#200603-200606

BLACK,TRIM0#,2#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-12069×2iUZS18#200606

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-30450-C0iGRS180,181,182,183..ROY,ROYEX,ROYG; GRS180,181,184..ATH200509-200802

BLACK,TRIM0#,1#; BLACK,TRIM1#,2#

main64714-30470-C0iUZS18#200606

BLACK,TRIM0#,2#

64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)

main90467-08186-C0×2iGRS18#200312-200509

BLACK

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-30310-C0iGRS180,181,182,183..ROY,ROYEX,ROYG; GRS180,181,184..ATH200509-200802

BLACK,TRIM0#,1#; BLACK,TRIM1#,2#

main64715-30330-C0iUZS18#200406-200603

BLACK,TRIM0#,2#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64075-30120-C0supersedes 64075-30110-C0iGRS180,182..ROY; GRS182..ATH; GRS182..ROYG; GRS183200312-200407

main64075-30121-C0supersedes 64075-30111-C0iGRS180,181,182,183..ROY,ROYEX; GRS180,181,184..ATH; GRS180,181..ROY,ROYEX; GRS180,182,183..ROY; GRS180,182..ROY; GRS180..ATH; GRS180..ROY; GRS181,184..ATH; GRS181..ATH; GRS181..ROYEX; GRS182,183..ROY; GRS182..ROYG; GRS183200509-200802

main64075-30121-C1iGRS180,182..ROY; GRS182..ATH; GRS182..ROYG; GRS183200407-200509

main64075-30160-C0supersedes 64075-30150-C0iUZS18#..C; UZS186..A200606

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-33010×3iGRS18#200509-200802

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-30160-C0iGRS18#..ROY,ROYEX,ROYG; GRS180,182..ATH200312-200406

BLACK,TRIM0#,1#; BLACK,TRIM1#,2#

main64719-30161-C0iGRS180,181,182,183..ROY,ROYEX,ROYG; GRS180,181,184..ATH200509-200802

BLACK,TRIM0#,1#; BLACK,TRIM1#,2#

main64719-30180-C0iUZS18#200406-200603

BLACK,TRIM0#,2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0×12iUZS18#200406-200606

BLACK

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-30160-C0supersedes 64721-30150-C0iGRS180,182..ROY; GRS182..ATH; GRS182..ROYG; GRS183200312-200406

main64721-30161-C0supersedes 64721-30151-C0iGRS180,182..ROY; GRS182..ATH; GRS182..ROYG; GRS183200406-200509

main64721-30200-C0supersedes 64721-30190-C0iUZS18#..C200603-200606

BLACK,TRIM0#,2#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05145iGRS18#..ATH,ROY,ROYEX200509-200802

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main90467-08186-C0×8iUZS18#..C; UZS186..A200606

BLACK

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-30080-C0supersedes 64722-30070-C0iGRS180,182..ROY; GRS182..ATH; GRS182..ROYG; GRS183200312-200406

main64722-30081-C0supersedes 64722-30071-C0iGRS180,182..ROY; GRS182..ATH; GRS182..ROYG; GRS183200406-200509

main64722-30120-C0supersedes 64722-30110-C0iUZS18#..C; UZS186..A200606

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-50071iGRS18#200312-200509

main64726-30040×4iUZS18#200406-200606

64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2

main64726-30060-C0×2iUZS18#; UZS186..A200606

66310DHOOK ASSY, ROPE

main66311-30010-C0×2iGRS18#..ROY,ROYEX,ROYG; GRS180,181,182..ATH200312-200509

BLACK,TRIM0#,1#; BLACK,TRIM1#,2#

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-51010iGRS180,181..5FC;GRS182,183,UZS18#200312-200606

75201ABOX, TOOL

main75201-30050-C0iGRS180,181,182,183..ROY,ROYEX,ROYG; GRS180,181,184..ATH200509-200802

BLACK,TRIM0#,1#; BLACK,TRIM1#,2#

9010906323

main90109-06323

9015960350

main90159-60350

9046708186C0

main90467-08186C0

9046710161

main90467-10161

29 parts on this diagram · 4 diagrams in section
