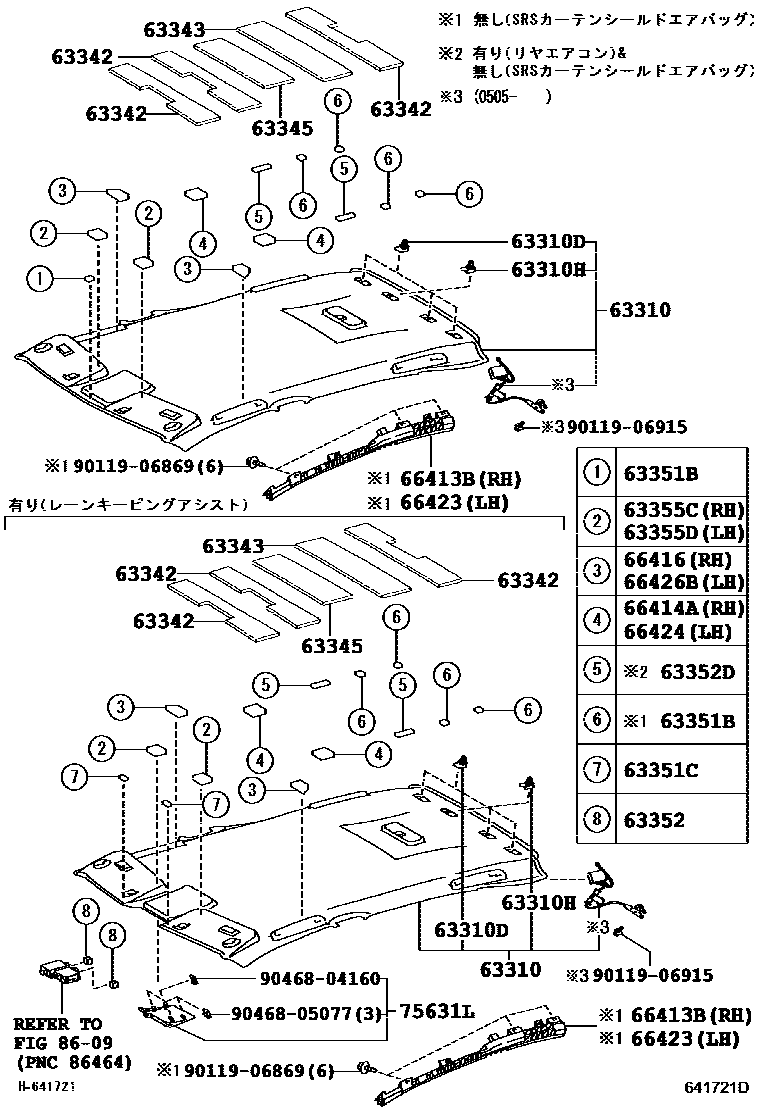

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1��(�-� �-�) 0003 1 0004 1��(��� ���)

63310HEADLINING ASSY, ROOF

main63311-30250-A0iGRS18#..ROY,ROYEX200312-200405

IVORY,TRIM0#

main63311-30250-B0iGRS18#..ROY,ROYEX; GRS180,182..ATH200312-200405

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#

main63311-30270-A0iGRS18#..ROY,ROYEX200405-200506

IVORY,TRIM0#

main63311-30270-B0iGRS18#..ROY,ROYEX; GRS180,181,182..ATH200405-200506

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#

main63311-30570-A0iGRS18#..ROY,ROYEX200506-200509

IVORY,TRIM0#

main63311-30570-B0iGRS18#..ROY,ROYEX; GRS180,181,182..ATH200506-200509

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#

main63311-30570-B1iGRS180,181,182,183..ROY,ROYEX; GRS180,181,184..ATH200509-200802

GRAY,TRIM1#; GRAY,TRIM1#,2#

main63311-30280-A0iGRS18#..ROY; GRS180..ROY; GRS183200312-200405

main63311-30280-B0iGRS18#..ROY; GRS180,182..ATH; GRS180..ATH; GRS180..ROY; GRS183200312-200405

main63311-30290-A0supersedes 63311-30580-A0iGRS180,182..ROY; GRS182..ROYG; GRS183200312-200405

main63311-30290-B0supersedes 63311-30580-B1iGRS180,182..ROY; GRS180..ROY; GRS182..ATH; GRS182..ROYG; GRS183200312-200405

main63311-30300-A0iGRS180,182..ROY; GRS180..ROY; GRS182..ROYG; GRS183200312-200405

main63311-30300-B0iGRS180,182..ROY; GRS180..ROY; GRS182..ATH; GRS182..ROYG; GRS183200312-200405

main63311-30310-A0iGRS180,182,183..ROY; GRS180..ROY; GRS183200405-200506

main63311-30310-B0iGRS180,181,182..ATH; GRS180,181..ATH; GRS180,182,183..ROY; GRS180..ROY; GRS183200405-200506

main63311-30320-A0iGRS180..ROY; GRS182..ROY; GRS182..ROYG; GRS183200405-200506

main63311-30320-B0supersedes 63311-30580-B1iGRS180,182..ROY; GRS180..ROY; GRS182..ROYG; GRS183200405-200506

main63311-30330-A0iGRS182,183..ROY; GRS183200509-200802

main63311-30330-B0iGRS182,183..ROY; GRS183200509-200802

main63311-30340-A0iGRS182..ROY; GRS182..ROYG; GRS183200509-200802

main63311-30340-B0iGRS182..ROY; GRS182..ROYG; GRS183200509-200802

main63311-30400-A0supersedes 63311-30610-A0iUZS186..A200406-200506

main63311-30400-B0supersedes 63311-30610-B0iUZS186..A200406-200506

main63311-30420-A0supersedes 63311-30620-A0iUZS18#..C200406-200506

main63311-30420-B0supersedes 63311-30620-B0iUZS18#..C200406-200506

main63311-30430-A0supersedes 63311-30610-A0iUZS186..A200406-200506

main63311-30430-B0supersedes 63311-30610-B0iUZS186..A200406-200506

main63311-30450-A0supersedes 63311-30620-A0iUZS18#..C200406-200506

main63311-30450-B0supersedes 63311-30620-B0iUZS18#..C200406-200506

main63311-30580-A0iGRS180,182..ROY; GRS180..ROY; GRS182..ROY; GRS182..ROYG; GRS183200506-200509

main63311-30580-B0iGRS180,182..ROY; GRS180..ROY; GRS182..ATH; GRS182..ROY; GRS182..ROYG; GRS183200506-200509

main63311-30580-B1iGRS180,182..ROY; GRS180..ROY; GRS181..ATH; GRS182..ROY; GRS182..ROYG; GRS183; GRS184200509-200802

main63311-30590-A0iGRS180,182,183..ROY; GRS180..ROY; GRS182,183..ROY; GRS183200506-200509

main63311-30590-B0supersedes 63311-30570-B0iGRS180,181,182..ATH; GRS180,181..ATH; GRS180,182,183..ROY; GRS180..ROY; GRS182,183..ROY; GRS182..ATH; GRS183200506-200509

main63311-30590-B1iGRS180,181,184..ATH; GRS180,181..ATH; GRS180,182,183..ROY; GRS180..ROY; GRS182,183..ROY; GRS183; GRS184200509-200802

main63311-30600-A0iGRS180,182..ROY; GRS180..ROY; GRS182..ROY; GRS182..ROYG; GRS183200506-200509

main63311-30600-B0iGRS180,182..ROY; GRS180..ROY; GRS182..ROY; GRS182..ROYG; GRS183200506-200509

main63311-30600-B1iGRS180,182..ROY; GRS180..ROY; GRS181..ATH; GRS182..ROY; GRS182..ROYG; GRS183; GRS184200509-200802

main63311-30630-A0supersedes 63311-30610-A0iUZS186..A200606

main63311-30630-B0supersedes 63311-30610-B0iUZS186..A200606

main63311-30640-A0supersedes 63311-30620-A0iUZS18#..C200606

main63311-30640-B0supersedes 63311-30620-B0iUZS18#..C200506-200606

main63311-30650-A0supersedes 63311-30620-A0iUZS18#..C200506-200606

main63311-30650-B0supersedes 63311-30620-B0iUZS18#..C200606

main63311-30660-A0supersedes 63311-30610-A0iUZS186..A200506-200606

main63311-30660-B0supersedes 63311-30610-B0iUZS186..A200506-200606

63310DCLIP, ROOF HEADLINING

main90467-09126×3iGRS18#200312-200509

63310HCLIP(FOR ROOF HEADLINING)

main90467-10181iGRS18#200312-200509

63342PAD, ROOF SILENCER, NO.2

main63342-30200×3iGRS180,181..5FC;GRS182,183,UZS18#; GRS180..5FC..(ATH,ROY);GRS181,182,183..ATH,ROY,ROYG; GRS182..ROYG200312-200606

63343PAD, ROOF SILENCER, NO.3

main63343-30240iGRS18#200312-200509

63345PAD, ROOF SILENCER, NO.5

main63345-30160iGRS18#200312-200509

63351BPAD, ROOF HEADLINING

main63351-30050iGRS180,181; GRS180,181..ATH,ROY; GRS180..ROY; GRS182,183; GRS183200312-200509

main63351-30070×4iUZS18#200406-200506

63351CPAD, ROOF HEADLINING

main63351-30060×2iGRS182,183; GRS182..ROY; GRS183200509-200802

63352PAD, ROOF HEADLINING, CENTER

main63353-30020×2iGRS182,183; GRS182..ROY; GRS183200509-200802

63352DPAD, ROOF HEADLINING, NO.2

main63352-30040×2iGRS180..ROY200412-200505

63355CPAD, ROOF HEADLINING, RH

main63355-30020iUZS18#200606

63355DPAD, ROOF HEADLINING, LH

main63355-30020iGRS18#; UZS18#..C200312-200509

66413BSPACER, SIDE RAIL, FRONT RH

main66413-30050iGRS180,181; GRS183200312-200509

66414ASPACER, SIDE RAIL, REAR RH

main66414-30050iUZS18#200312-200606

66416SPACER, SIDE RAIL, REAR NO.3 RH

main66416-30010iGRS18#200312-200509

66423SPACER, SIDE RAIL, FRONT LH

main66423-30050iGRS180,181; GRS183200312-200509

66424SPACER, SIDE RAIL, REAR LH

main66414-30050iGRS18#200312-200509

66426BSPACER, SIDE RAIL, REAR NO.3 LH

main66426-30010iGRS18#200312-200509

75631LGARNISH, ROOF TOP, FRONT

main75631-30050-A0iGRS182,183; GRS182..ROY; GRS183200509-200802

main75631-30050-B0iGRS182,183; GRS182..ROY; GRS183200509-200802

8609LANE-KEEPING ASSIST

→ Go to FIG 86-09

9011906869

main90119-06869

9011906915

main90119-06915

9046804160

main90468-04160

9046805077

main90468-05077

24 parts on this diagram · 4 diagrams in section
