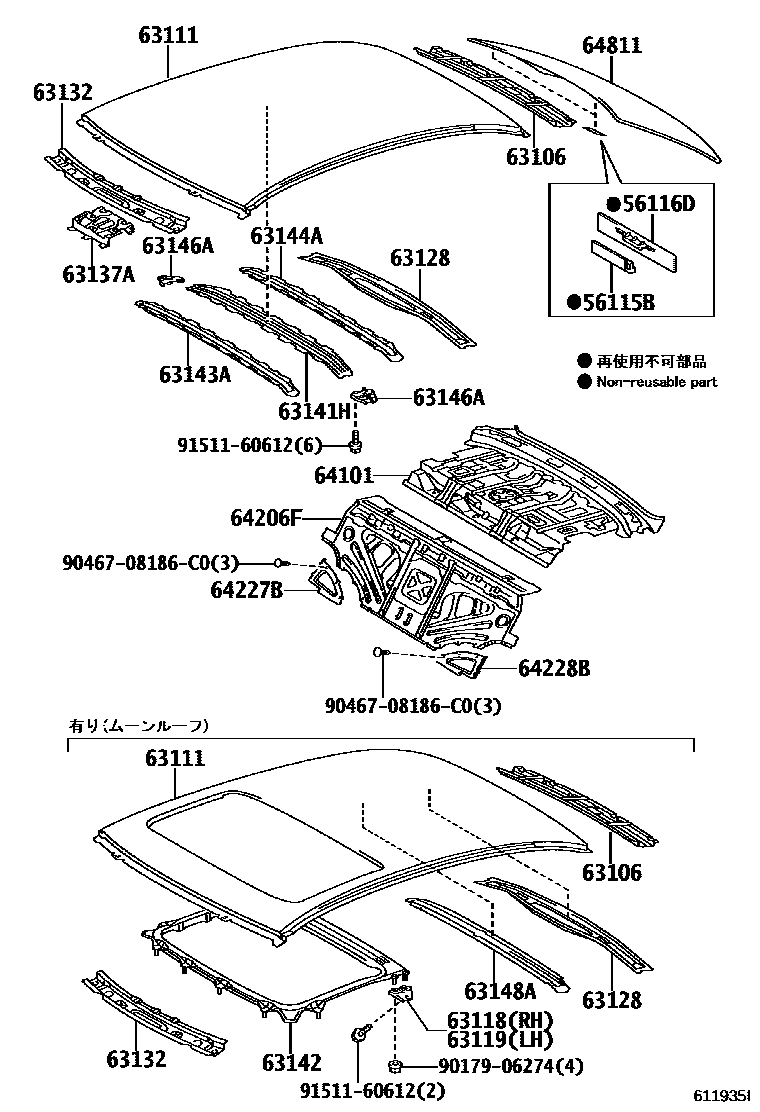

ROOF PANEL & BACK WINDOW GLASS

0001 1�-� ���� 0002 1�-� �-�

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30110×2iGRS18#200312-200509

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2iGRS18#,UZS18#200312-200509

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-30060iGRS18#200509-200802

main63106-30070iUZS18#200606

63111PANEL, ROOF

main63111-30560iGRS18#..ATH,ROY,ROYEX200509-200802

main63111-30570iGRS18#..ATH,ROY200312-200509

main63111-30580supersedes 63111-30560iGRS18#..ATH,ROY,ROYEX; GRS182..ROYG200312-200509

main63111-30590iGRS18#..ATH,ROY; GRS182,183,184..ATH,ROY; GRS182..ROYG200509-200802

main63111-30610supersedes 63111-30600iUZS18#200406-200606

63118SUPPORT, ROOF PANEL, RH

main63118-30110iGRS18#..ATH,ROY200312-200508

63119SUPPORT, ROOF PANEL, LH

main63118-30110iGRS18#..ATH,ROY; GRS18#..ATH,ROY,ROYG; GRS182,183,184..ATH,ROY200509-200802

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-30020iGRS18#200312-200509

main63128-30030iUZS18#200606

63132PANEL, WINDSHIELD HEADER, INNER

main63132-30270iUZS18#200312-200606

63137ABRACKET, DOME LAMP, NO.1

main63137-30230iUZS18#200312-200606

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-30200iUZS18#200312-200606

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-30120iUZS18#200406-200606

main63142-30901iUZS18#200606

63143AREINFORCEMENT, ROOF PANEL

main63143-30240iUZS18#200312-200606

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-30170iGRS18#200312-200509

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-30100×2iUZS18#200312-200606

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-30100iGRS18#..ATH,ROY; GRS18#..ATH,ROY,ROYG; GRS182,183,184..ATH,ROY200509-200802

64101PANEL SUB-ASSY, UPPER BACK

main64101-30790iGRS180,181; GRS183200509-200802

main64101-30800supersedes 64101-30790iGRS180..ATH,ROY; GRS180;GRS181..ROYEX; GRS181..ATH; GRS182,183,184..ATH,ROY200509-200802

main64101-30810iGRS180..ROY; GRS182..ATH; GRS182..ROY; GRS182..ROYG; GRS183200312-200509

main64101-30830iUZS186..A200606

main64101-30840iUZS18#..C200606

main64101-30850iGRS180..ROY200312-200509

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-30030iGRS18#,UZS186..A,ATH,ROY,ROYEX200312-200509

main64206-30040iUZS18#..C200606

64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1

main64227-30110iGRS18#,UZS18#200312-200410

main64227-30111iGRS180,181..5FC;GRS182,183,UZS18#200411-200606

64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2

main64228-30090iGRS18#,UZS18#200312-200410

main64228-30091iGRS18#200509-200802

64811GLASS, BACK WINDOW

main64801-30A10iUZS18#200406-200606

main64801-30A70supersedes 64801-30A00iGRS18#200509-200802

9017906274

main90179-06274

9046708186C0

main90467-08186C0

9151160612

main91511-60612

23 parts on this diagram · 2 diagrams in section
