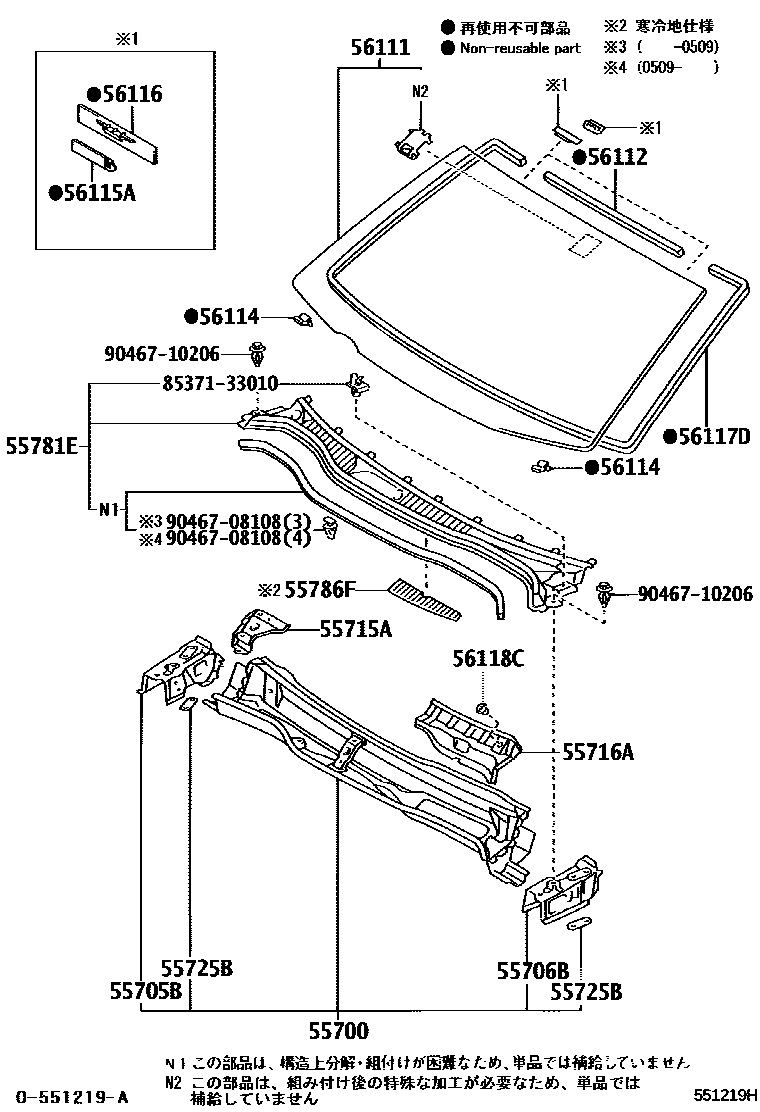

COWL PANEL & WINDSHIELD GLASS

55700PANEL ASSY, FRONT

main55700-30A00iGRS18#,UZS18#200312-200509

main55700-30A50iUZS18#200606

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-30070iUZS18#200606

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-30070iGRS18#200312-200509

55715ABRACE, COWL TOP TO APRON, RH

main55715-30110iGRS18#200312-200509

55716ABRACE, COWL TOP TO APRON, LH

main55716-30130iGRS18#,UZS18#200312-200503

main55716-30131iUZS18#200503-200606

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020×2iGRS18#200312-200509

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-30090iGRS18#,UZS18#200312-200407

main55708-30091iGRS18#,UZS18#200408-200509

main55708-30130iUZS18#200509-200606

main55708-30131iUZS18#200608

55786FNET, COWL TOP VENTILATOR LOUVER

main55786-30060iGRS18#,UZS18#200312-200509

main55786-30080iUZS18#200606

56111GLASS, WINDSHIELD

main56101-30770iGRS180,181..ROYEX; GRS182;GRS180,183..ROY200312-200509

main56101-30860iGRS180,181..ATH,ROYEX; GRS180..ROY; GRS183200509-200802

main56101-30830iGRS18#; GRS180,181..ROYEX; GRS180..ROY; GRS183200509-200802

main56101-30840iGRS182,183200509-200802

main56101-30850iGRS182,183,184200509-200802

main56101-30880iGRS182..ROYG; GRS183200312-200509

main56101-30A00supersedes 56101-30890iUZS18#200406-200606

main56101-30A30supersedes 56101-30890iUZS18#200606

main56101-30A40supersedes 56101-30890iUZS18#200606

main56101-30A50supersedes 56101-30890iUZS18#200406-200606

main56101-30A60iGRS182,183200509-200802

main56101-30B30iGRS182,183200509-200802

56112DAM, WINDOW GLASS ADHESIVE, NO.2

main56112-30070iUZS18#200606

56114RETAINER, WINDSHIELD GLASS

main56114-50020×2iGRS18#200312-200509

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30110×2iGRS18#200312-200509

56116SPACER, WINDSHIELD GLASS

main56116-22050×2iUZS18#200312-200606

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-30330iGRS18#; GRS180,181..ROYEX; GRS180..ROY; GRS182..ROYG; GRS183200312-200509

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-30080iGRS18#200312-200509

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9046708108

main90467-08108

9046710206

main90467-10206

18 parts on this diagram · 1 diagram in section
