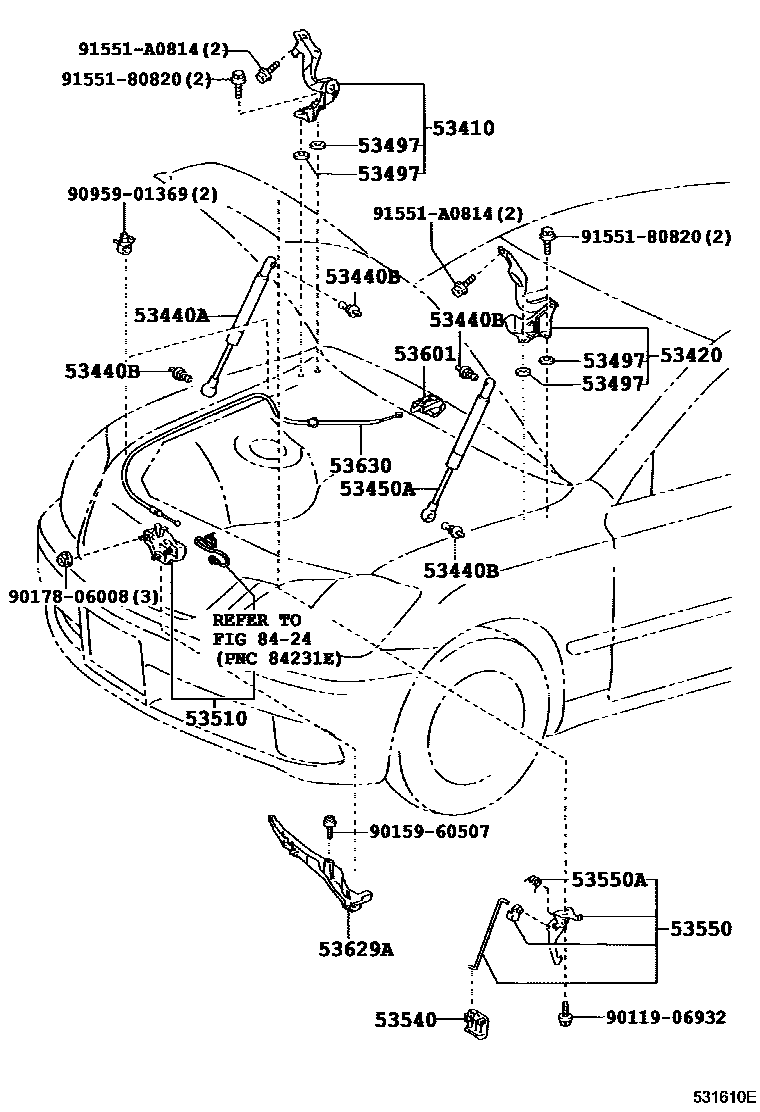

HOOD LOCK & HINGE

0001 1 0003 1

53410HINGE ASSY, HOOD, RH

main53410-30170iGRS18#,UZS18#200312-200509

main53410-30180iUZS18#200509-200606

main53410-30190iUZS18#200606

53420HINGE ASSY, HOOD, LH

main53420-30170iUZS18#200509-200606

main53420-30180iGRS18#,UZS18#200312-200509

main53420-30190iUZS18#200606

53440ASUPPORT ASSY, HOOD, RH

main53440-0W050iGRS18#200312-200509

main53440-0W060iUZS18#200406-200606

main53440-0W180iUZS18#200606

53440BBOLT, HOOD SUPPORT, NO.1

main68961-20051×4iUZS18#200509-200606

main68961-24030×4iGRS18#200312-200402

main68961-50010×4iGRS18#200312-200402

53450ASUPPORT ASSY, HOOD, LH

main53450-0W030iGRS18#200509-200802

main53450-0W040iUZS18#200406-200606

main53450-0W150iUZS18#200606

53497PAD, HOOD HINGE, NO.1

main53497-50020×4iUZS18#200509-200606

53510LOCK ASSY, HOOD

main53510-30310iUZS18#200509-200606

53540LEVER ASSY, AUXILIARY CATCH RELEASE

main53540-30030iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

main53540-30040iGRS180,181,182..ATH200312-200509

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-30110iGRS18#200312-200509

main53550-30120iUZS18#200606

main53550-30130iUZS18#200406-200606

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90508-18102iGRS18#,UZS18#200312-200509

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-C0iGRS18#,UZS18#200312-200509

BLACK

53629ACOVER, HOOD LOCK CONTROL CABLE

main53629-30030iGRS18#,UZS18#200312-200509

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-30300iGRS18#,UZS18#200312-200509

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

9011906932

main90119-06932

9015960507

main90159-60507

9017806008

main90178-06008

9095901369

main90959-01369

9155180820

main91551-80820

91551A0814

main91551-A0814

20 parts on this diagram · 2 diagrams in section
