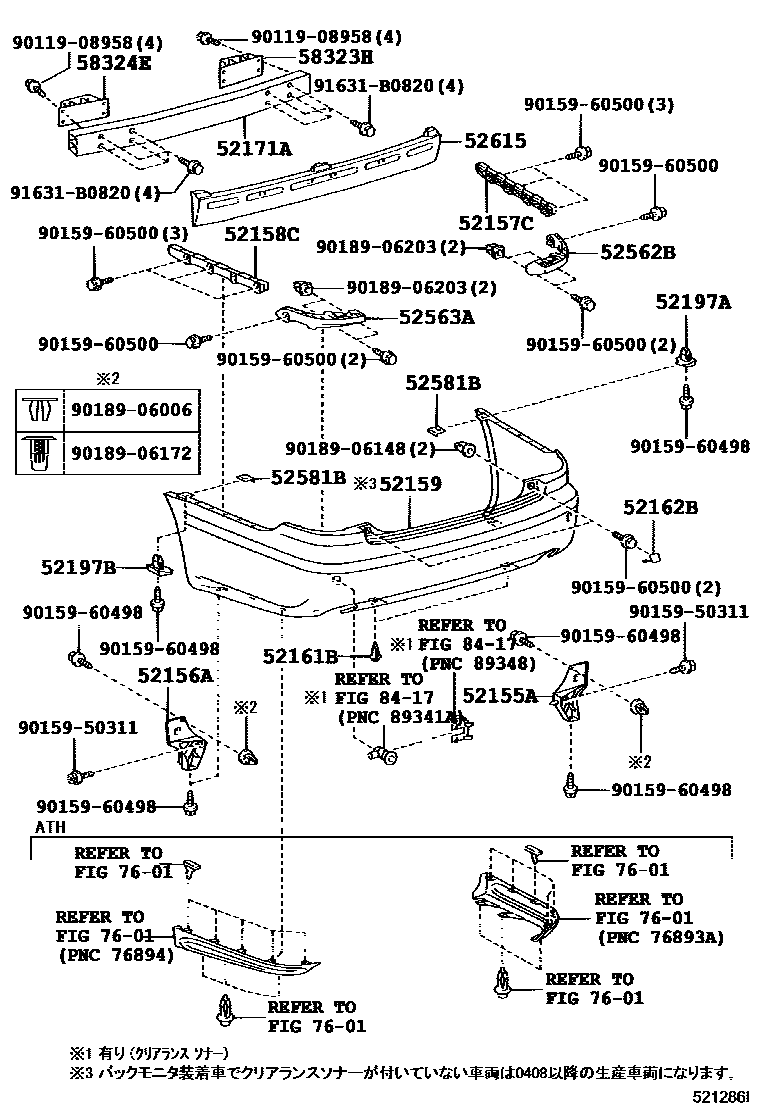

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-30060iGRS18#200312-200802

main52155-30070iUZS18#200406-200812

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-30030iGRS18#200312-200802

main52156-30040iUZS18#200406-200606

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-30040iGRS18#200312-200802

main52157-30050iUZS18#200406-200606

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-30060iGRS18#200312-200802

main52158-30070iUZS18#200406-200606

52159COVER, REAR BUMPER

main52159-30340-A0iGRS18#..ROY,ROYEX,ROYG200312-200802

main52159-30340-A1iGRS180,181,182,183..ROY,ROYEX,ROYG200312-200802

main52159-30340-B0iGRS18#..ROY,ROYEX,ROYG200312-200509

main52159-30340-B1iGRS180,181,182,183..ROY,ROYEX,ROYG200312-200802

main52159-30340-B2iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

main52159-30340-B3iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

main52159-30340-C0iGRS18#..ROY,ROYEX,ROYG200312-200802

main52159-30340-D0iGRS18#..ROY,ROYEX,ROYG200312-200802

main52159-30340-D1iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200704

main52159-30340-J0iGRS18#..ROY,ROYEX,ROYG200312-200509

main52159-30340-J1iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

main52159-30360-A0iGRS180,182..ATH200312-200802

main52159-30360-B0iGRS180,182..ATH200312-200509

main52159-30360-B1iGRS180,181,184..ATH200408-200802

main52159-30360-B2iGRS180,181,184..ATH200509-200802

main52159-30360-B3iGRS180,181,184..ATH200509-200802

main52159-30360-C0iGRS180,182..ATH200312-200802

main52159-30360-D0iGRS180,181,184..ATH200509-200704

main52159-30360-D1iGRS180,181,184..ATH200704-200802

main52159-30360-J0iGRS180,181,182..ATH200312-200509

main52159-30400-A0iUZS186..A200406-200812

main52159-30400-B0iUZS18#200406-200606

main52159-30400-B1iUZS18#200406-200812

main52159-30400-B2iUZS186..A200606-200812

main52159-30400-B3iUZS186..A200606-200812

main52159-30400-C0iUZS186..A200406-200812

main52159-30400-D0iUZS186..A200406-200812

main52159-30400-G0iUZS18#200406-200606

main52159-30400-J0iUZS18#200406-200812

main52159-30410-A0iUZS18#..C200606-200812

main52159-30410-A0iUZS18#..C200606-200812

main52159-30410-B1iUZS18#..C200606-200812

main52159-30410-B1iUZS18#..C200606-200812

main52159-30410-B2iUZS18#..C200606-200812

main52159-30410-B2iUZS18#..C200606-200812

main52159-30410-B3iUZS18#..C200606-200812

main52159-30410-B3iUZS18#..C200606-200812

main52159-30410-C0iUZS186..A200606-200812

main52159-30410-C0iUZS18#..C200606-200812

main52159-30410-D0iUZS18#..C200606-200812

main52159-30410-D0iUZS18#..C200606-200812

main52159-30410-J0iUZS18#..C200606-200812

main52159-30410-J0iUZS18#..C200606-200812

52161BPIECE, REAR BUMPER

main52161-16010iGRS18#200312-200802

52162BPLATE, REAR BUMPER, NO.1

main52162-30060-A0iGRS180,181,182,183..ROY,ROYEX,ROYG200312-200802

SUPER WHITE 2,040

main52162-30060-A1iGRS18#200312-200802

WHITE PEARL CS.,062

main52162-30060-B0iGRS18#200312-200509

SILVER ME.,1C0

main52162-30060-B1iGRS180,182..ATH200312-200509

SATIN PEARL MC.,1F3

main52162-30060-B1iGRS18#200509-200802

PREMIUM SILVER PEARL,1F3

main52162-30060-B2iGRS18#200509-200802

SILVER ME.,1F7

main52162-30060-B4iGRS18#200509-200802

QUARTZ GRAY PM.,1G4

main52162-30060-C0iGRS18#200312-200802

BLACK,202

main52162-30060-D0iGRS18#200312-200802

BLACKISH RED MC.,3R0

main52162-30060-D2iGRS18#200509-200704

GINGER RED M.M.,3R6

main52162-30060-J0iGRS18#..ROY,ROYEX,ROYG200312-200509

DARK BLUE MC.,8P8

main52162-30060-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

main52162-30060-J2iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

DK.BLUE MC.,8S6

main52162-30070-A0iUZS18#200406-200606

WHITE PEARL CS.,062

main52162-30070-B0iUZS18#200406-200606

SILVER ME.,1C0

main52162-30070-B1iUZS18#200406-200606

PREMIUM SILVER PEARL,1F3

main52162-30070-B2iUZS18#200606

SILVER ME.,1F7

main52162-30070-B3iUZS18#200606

GRAY ME.,1F9

main52162-30070-C0iUZS18#200406-200606

BLACK,202

main52162-30070-D0iUZS18#200406-200606

BLACKISH RED MC.,3R0

main52162-30070-G0iUZS18#200406-200606

OLIVE M.M.,6T7

main52162-30070-J0iUZS18#200406-200606

DARK BLUE MC.,8P8

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-30210iGRS18#200312-200802

main52171-30220iUZS18#200406-200606

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-30030iGRS18#200312-200401

main52197-30040iGRS18#,UZS18#200401-200802

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-30030iGRS18#200312-200401

main52197-30040iGRS18#,UZS18#200401-200802

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-30100iGRS18#200312-200802

main52562-30110iUZS18#200406-200606

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-30050iGRS18#200312-200802

main52563-30060iUZS18#200406-200606

52581BPROTECTOR, REAR BUMPER

main52581-30060iUZS18#200312-200802

52615ABSORBER, REAR BUMPER ENERGY

main52615-30230iGRS18#200312-200802

main52615-30250iUZS18#200406-200606

58323HREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58323-30060iGRS18#200312-200802

main58323-30070iUZS18#200406-200606

58324EREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58324-30040iGRS18#200312-200802

main58324-30050iUZS18#200406-200606

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

9011908958

main90119-08958

9015950311

main90159-50311

9015960498

main90159-60498

9015960500

main90159-60500

9018906006

main90189-06006

9018906148

main90189-06148

9018906172

main90189-06172

9018906203

main90189-06203

91631B0820

main91631-B0820

27 parts on this diagram · 2 diagrams in section
