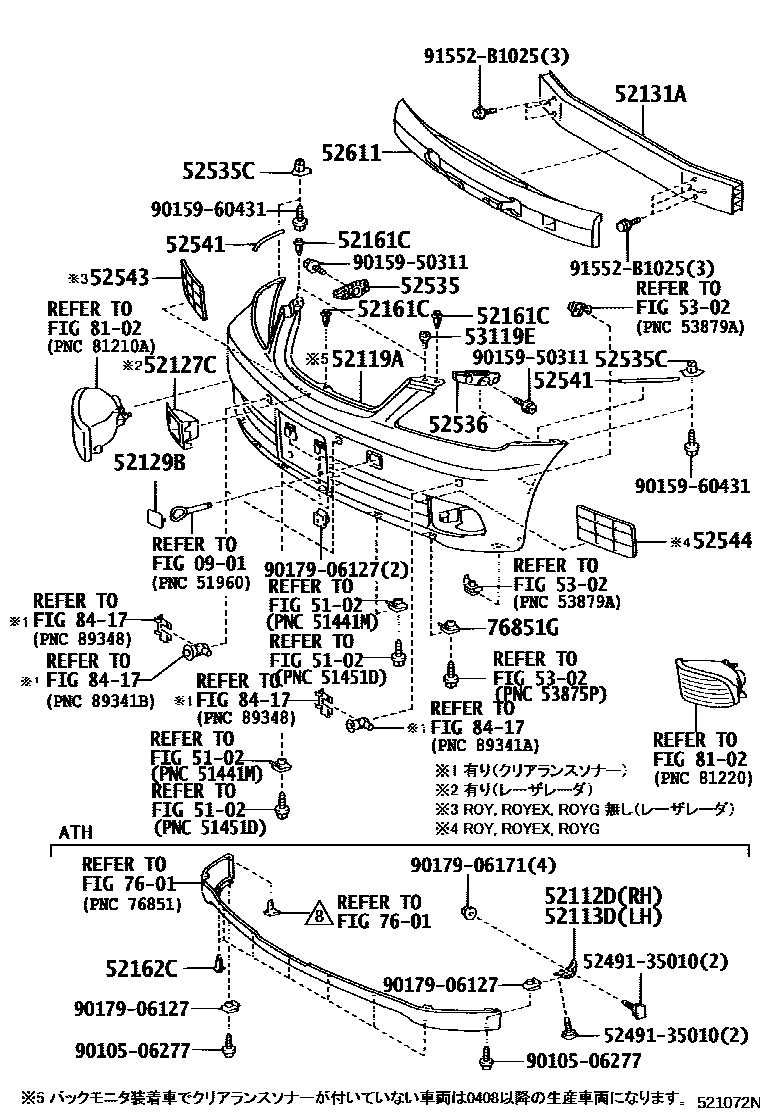

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1

0901STANDARD TOOL

→ Go to FIG 09-01

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52112DEXTENSION, FRONT BUMPER, RH

main52112-30050iGRS180,181,182..ATH200312-200509

main52112-30070iGRS180,181,184..ATH200509-200802

52113DEXTENSION, FRONT BUMPER, LH

main52113-30020iGRS180,181,182..ATH200312-200509

main52113-30040iGRS180,181,184..ATH200509-200802

52119ACOVER, FRONT BUMPER

main52119-30510-A0iGRS18#..ROY,ROYEX,ROYG200312-200408

SUPER WHITE 2,040

main52119-30510-A1iGRS18#..ROY,ROYEX,ROYG200312-200408

WHITE PEARL CS.,062

main52119-30510-B0iGRS18#..ROY,ROYEX,ROYG200312-200408

SILVER ME.,1C0

main52119-30510-B1iGRS18#..ROY,ROYEX,ROYG200312-200408

SATIN PEARL MC.,1F3

main52119-30510-C0iGRS18#..ROY,ROYEX,ROYG200312-200408

BLACK,202

main52119-30510-D0iGRS18#..ROY,ROYEX,ROYG200312-200408

BLACKISH RED MC.,3R0

main52119-30510-J0iGRS18#..ROY,ROYEX,ROYG200312-200408

DARK BLUE MC.,8P8

main52119-30511-A0iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

SUPER WHITE 2,040

main52119-30511-A0iGRS18#..ROY,ROYEX,ROYG200408-200509

main52119-30511-A1iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

WHITE PEARL CS.,062

main52119-30511-A1iGRS18#..ROY,ROYEX,ROYG200408-200509

main52119-30511-B0iGRS18#..ROY,ROYEX,ROYG200408-200509

main52119-30511-B1iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

PREMIUM SILVER PEARL,1F3

main52119-30511-B1iGRS18#..ROY,ROYEX,ROYG200408-200509

main52119-30511-B2iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

SILVER ME.,1F7

main52119-30511-B3iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

QUARTZ GRAY PM.,1G4

main52119-30511-C0iGRS18#..ROY,ROYEX,ROYG200408-200509

main52119-30511-C0iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

BLACK,202

main52119-30511-D0iGRS180,181,182,183..ROY,ROYEX,ROYG200704-200802

BLACKISH RED MC.,3R0

main52119-30511-D0iGRS18#..ROY,ROYEX,ROYG200408-200509

main52119-30511-D1iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

GINGER RED M.M.,3R6

main52119-30511-J0iGRS18#..ROY,ROYEX,ROYG200408-200509

main52119-30511-J1iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

DK.BLUE MC.,8S6

main52119-30560-A0iGRS180,182..ATH200312-200408

WHITE PEARL CS.,062

main52119-30560-B0iGRS180,182..ATH200312-200408

SILVER ME.,1C0

main52119-30560-C0iGRS180,182..ATH200312-200408

BLACK,202

main52119-30560-J0iGRS180,182..ATH200312-200408

LT.BLUE M.M.,8S0

main52119-30561-A0iGRS180,181,182..ATH200408-200509

main52119-30561-B0iGRS180,181,182..ATH200408-200509

main52119-30561-B1iGRS180,181,182..ATH200408-200509

main52119-30561-C0iGRS180,181,182..ATH200408-200509

main52119-30561-J0iGRS180,181,182..ATH200408-200509

main52119-30620-A0iUZS18#200406-200606

WHITE PEARL CS.,062

main52119-30620-B0iUZS18#200406-200606

SILVER ME.,1C0

main52119-30620-B1iUZS18#200406-200606

SATIN PEARL MC.,1F3

main52119-30620-C0iUZS18#200406-200606

BLACK,202

main52119-30620-D0iUZS18#200406-200606

BLACKISH RED MC.,3R0

main52119-30620-G0iUZS18#200406-200606

OLIVE M.M.,6T7

main52119-30620-J0iUZS18#200406-200606

DARK BLUE MC.,8P8

main52119-30750-A1iGRS180,181,184..ATH200509-200802

WHITE PEARL CS.,062

main52119-30750-B0iGRS180,181,184..ATH200509-200802

PREMIUM SILVER PEARL,1F3

main52119-30750-B1iGRS180,181,184..ATH200509-200802

SILVER ME.,1F7

main52119-30750-B2iGRS180,181,184..ATH200509-200802

QUARTZ GRAY PM.,1G4

main52119-30750-C0iGRS180,181,184..ATH200509-200802

BLACK,202

main52119-30750-D0iGRS180,181,184..ATH200509-200704

GINGER RED M.M.,3R6

main52119-30750-D1iGRS180,181,184..ATH200704-200802

BLACKISH RED MC.,3R0

main52119-30790-A0iUZS186..A200606

WHITE PEARL CS.,062

main52119-30790-B0iUZS186..A200606

PREMIUM SILVER PEARL,1F3

main52119-30790-B1iUZS186..A200606

SILVER ME.,1F7

main52119-30790-B2iUZS186..A200606

GRAY ME.,1F9

main52119-30790-C0iUZS186..A200606

BLACK,202

main52119-30790-D1iUZS186..A200606

BLACKISH RED MC.,3R0

main52119-30790-J0iUZS186..A200606

DARK BLUE MC.,8P8

main52119-30800-A0iUZS18#..C200606

WHITE PEARL CS.,062

main52119-30800-A0iUZS18#..C200606

main52119-30800-A0iUZS18#..C200606

main52119-30800-B0iUZS18#..C200606

PREMIUM SILVER PEARL,1F3

main52119-30800-B0iUZS18#..C200606

main52119-30800-B0iUZS18#..C200606

main52119-30800-B1iUZS18#..C200606

SILVER ME.,1F7

main52119-30800-B1iUZS18#..C200606

main52119-30800-B1iUZS18#..C200606

main52119-30800-B2iUZS18#..C200606

GRAY ME.,1F9

main52119-30800-B2iUZS18#..C200606

main52119-30800-B2iUZS18#..C200606

main52119-30800-C0iUZS186..A200606

BLACK,202

main52119-30800-C0iUZS18#..C200606

main52119-30800-C0iUZS18#..C200606

main52119-30800-D1iUZS18#..C200606

main52119-30800-D1iUZS18#..C200606

BLACKISH RED MC.,3R0

main52119-30800-D1iUZS186..A200606

main52119-30800-J0iUZS186..A200606

DARK BLUE MC.,8P8

main52119-30800-J0iUZS18#..C200606

main52119-30800-J0iUZS18#..C200606

52127CCOVER, FRONT BUMPER HOLE

52129BCOVER, FRONT BUMPER, LOWER

main52129-30030-A0iUZS18#200606-200812

WHITE PEARL CS.,062

main52129-30030-B0iUZS18#200606-200812

PREMIUM SILVER PEARL,1F3

main52129-30030-B1iUZS18#200606-200812

SILVER ME.,1F7

main52129-30030-B2iUZS18#200606-200812

GRAY ME.,1F9

main52129-30030-C0iUZS18#200606-200812

BLACK,202

main52129-30030-D1iUZS18#200606-200812

BLACKISH RED MC.,3R0

main52129-30030-J0iUZS18#200606-200812

DARK BLUE MC.,8P8

main52129-30040-A0iGRS18#..ROY,ROYEX,ROYG200312-200802

SUPER WHITE 2,040

main52129-30040-A1iGRS180,181..5FC;GRS182,183,UZS18#200312-200802

WHITE PEARL CS.,062

main52129-30040-B0iGRS180,181..5FC;GRS182,183,UZS18#200312-200606

SILVER ME.,1C0

main52129-30040-B1iGRS18#200312-200802

PREMIUM SILVER PEARL,1F3

main52129-30040-B2iGRS18#200509-200802

SILVER ME.,1F7

main52129-30040-B3iGRS18#200509-200802

QUARTZ GRAY PM.,1G4

main52129-30040-C0iGRS180,181..5FC;GRS182,183,UZS18#200312-200802

BLACK,202

main52129-30040-D0iGRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG200312-200802

BLACKISH RED MC.,3R0

main52129-30040-D1iGRS18#200509-200704

GINGER RED M.M.,3R6

main52129-30040-G0iUZS18#200406-200606

OLIVE M.M.,6T7

main52129-30040-J0iGRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG200312-200606

DARK BLUE MC.,8P8

main52129-30040-J1iGRS180,181,182..ATH200312-200509

LT.BLUE M.M.,8S0

main52129-30040-J2iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

DK.BLUE MC.,8S6

52131AREINFORCEMENT, FRONT BUMPER

main52131-30250iGRS180,181..5FC;GRS182,183,UZS18#200312-200802

52161CPIECE, FRONT BUMPER

main52161-16010iUZS18#200312-200802

52162CPIECE, FRONT BUMPER

main52161-16010iGRS180,181,184..ATH200312-200802

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-30170iGRS18#200312-200509

main52535-30180iGRS18#200509-200802

main52535-30190iUZS18#200406-200606

52535CRETAINER, FRONT BUMPER SIDE

main52535-30150iGRS18#200312-200407

main52535-50060iUZS18#200406-200802

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-30160iGRS18#200312-200509

main52536-30170iGRS18#200509-200802

main52536-30180iUZS18#200406-200606

52541PROTECTOR, FRONT BUMPER

main52541-30090iGRS18#200312-200509

main52541-30110iUZS18#200406-200606

main52541-30130iGRS180,181,184..ATH200509-200802

52543SEAL, FRONT BUMPER SIDE, RH

main52543-30100iGRS18#..ROY,ROYEX,ROYG200312-200802

52544SEAL, FRONT BUMPER SIDE, LH

main52544-30060iGRS18#..ROY,ROYEX,ROYG200312-200802

52611ABSORBER, FRONT BUMPER ENERGY

main52611-30270iGRS18#200312-200502

main52611-30271iGRS18#200503-200802

main52611-30290iUZS18#200406-200606

main52611-30320iUZS18#200606

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53119EPROTECTOR, RADIATOR GRILLE

main53119-12150iGRS180,181..5FC;GRS182,183,UZS18#200312-200802

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

76851GGROMMET, SCREW, NO.1

main90179-05060iUZS18#200406-200812

8102FOG LAMP

→ Go to FIG 81-02

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

5249135010BOLT, BUMPER PAD

main52491-35010

9010506277

main90105-06277

9015950311

main90159-50311

9015960431

main90159-60431

9017906127

main90179-06127

9017906171

main90179-06171

91552B1025

main91552-B1025

30 parts on this diagram · 5 diagrams in section
