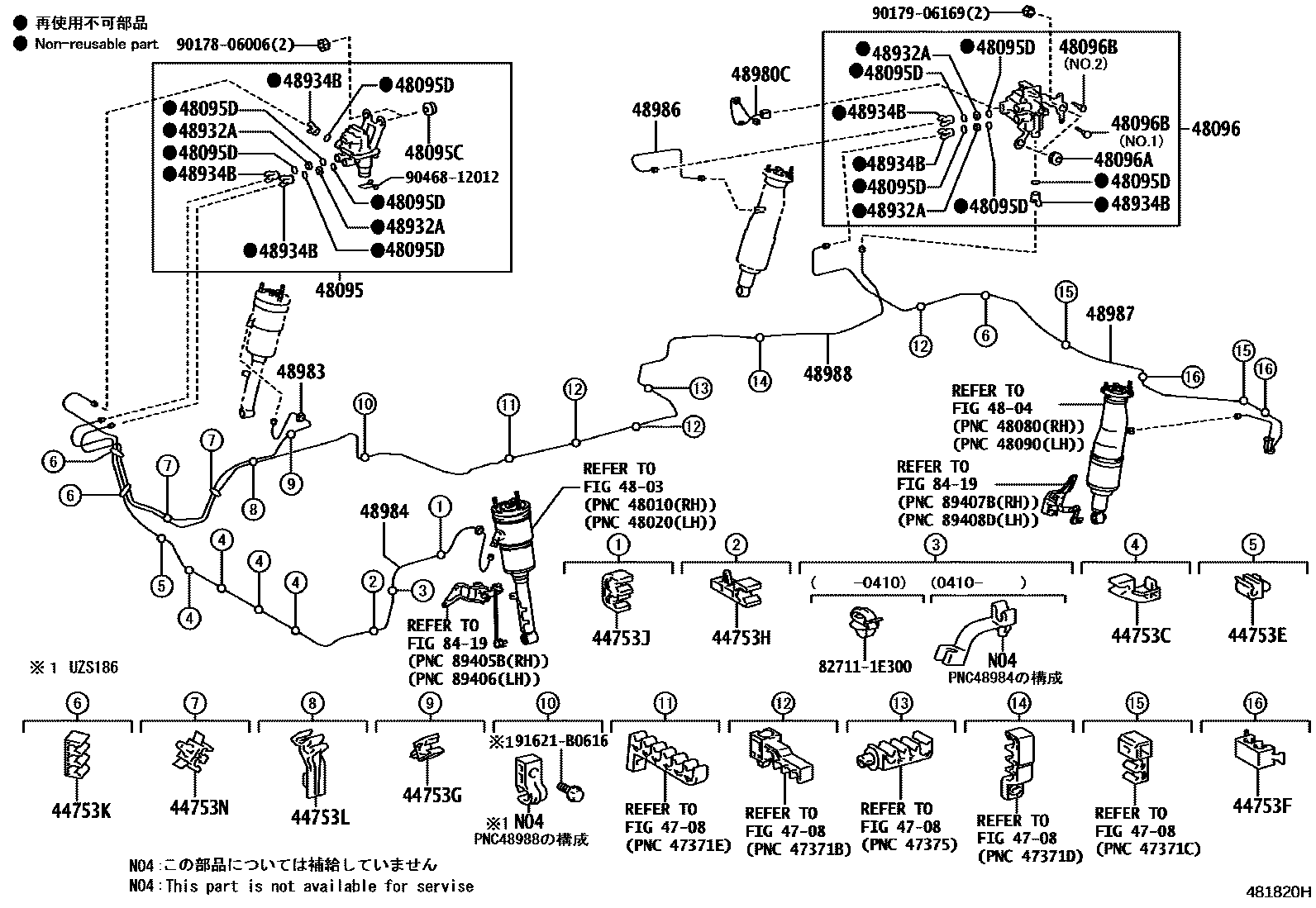

HEIGHT CONTROL (AUTO-LEVELER)
44753CCLAMP, HEIGHT CONTROL TUBE, NO.2
44753ECLAMP, HEIGHT CONTROL TUBE, NO.3
44753FCLAMP, HEIGHT CONTROL TUBE, NO.4
44753GCLAMP, HEIGHT CONTROL TUBE NO.5
44753HCLAMP, HEIGHT CONTROL TUBE NO.6
44753JCLAMP, HEIGHT CONTROL TUBE NO.7
44753KCLAMP, HEIGHT CONTROL TUBE NO.8
44753LCLAMP, HEIGHT CONTROL TUBE NO.9
44753NCLAMP, HEIGHT CONTROL TUBE NO.11
4708BRAKE TUBE & CLAMP
4803FRONT SPRING & SHOCK ABSORBER
4804REAR SPRING & SHOCK ABSORBER
48095VALVE SUB-ASSY, HEIGHT CONTROL, NO.1
48095CBUSH(FOR HEIGHT CONTROL VALVE NO.1)
48095DRING, O(FOR HEIGHT CONTROL VALVE)
48096VALVE SUB-ASSY, HEIGHT CONTROL, NO.2
48096ABUSH, NO.2(FOR HEIGHT CONTROL VALVE)
48096BCUSHION, NO.2(FOR HEIGHT CONTROL VALVE)
48932APLATE, HEIGHT CONTROL TUBE
48934BCONNECTOR, HEIGHT CONTROL TUBE
48980CHARNESS ASSY, HEIGHT CONTROL VALVE
48983TUBE, HEIGHT CONTROL, NO.3
48984TUBE, HEIGHT CONTROL, NO.4
48986TUBE, HEIGHT CONTROL, NO.6
48987TUBE, HEIGHT CONTROL, NO.7
48988TUBE, HEIGHT CONTROL, NO.8
8419ELECTRONIC MODULATED SUSPENSION
827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E300
9017806006
main90178-06006
9017906169
main90179-06169
9046812012
main90468-12012
91621B0616
main91621-B0616
32 parts on this diagram · 2 diagrams in section
