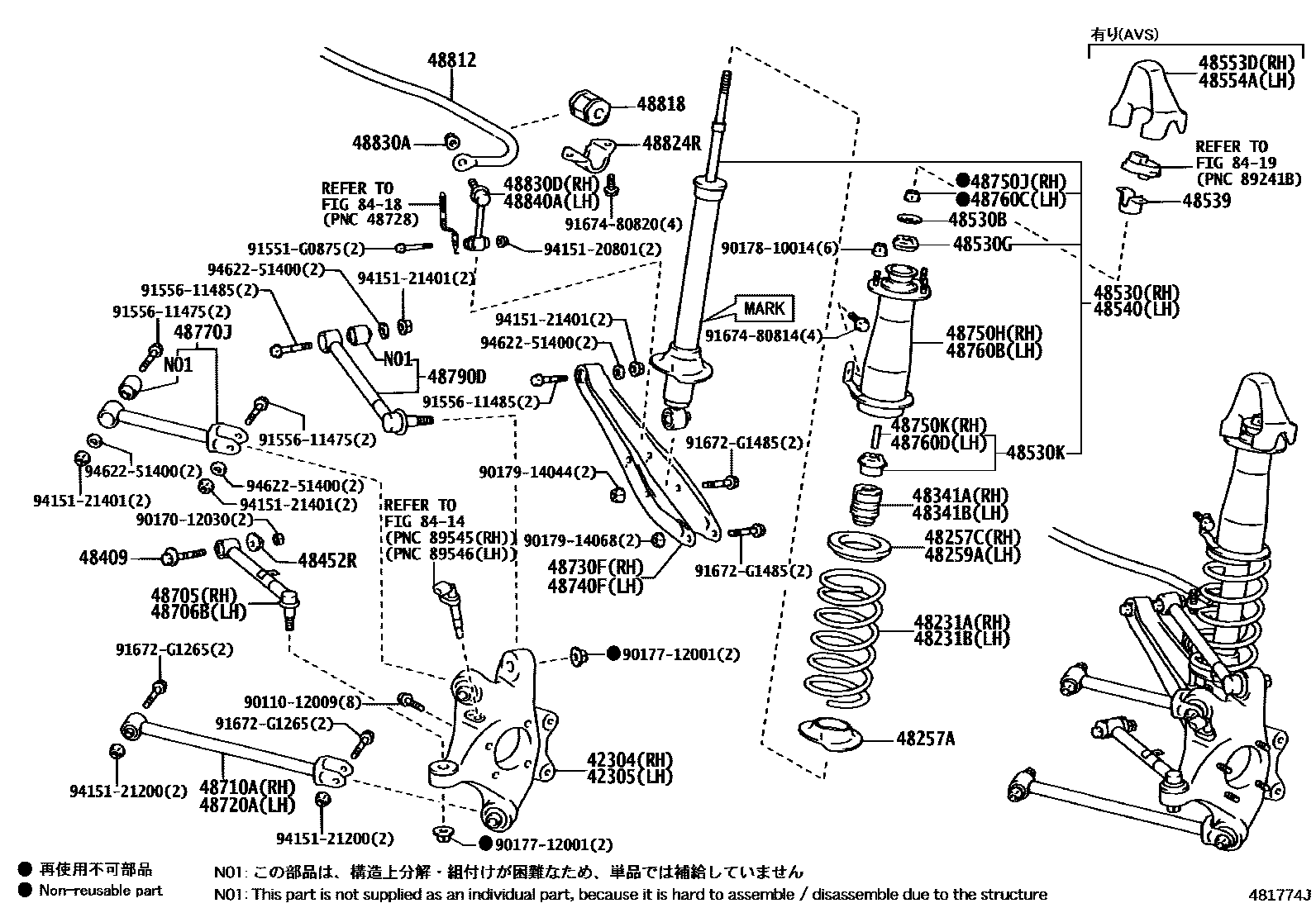

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-30080iGRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG200312-200812

main42304-30090iGRS180,181,184..ATH200312-200802

sub42304-30110

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-30080iGRS180,181,182,183..ROY,ROYEX,ROYG200312-200812

main42305-30090iGRS180,181,182..ATH200312-200802

sub42305-30110

48231ASPRING, COIL, REAR RH

main48231-30A00iGRS180,182..ROY,ROYEX,ROYG200312-200802

main48231-30A10iGRS180,182..ATH200312-200802

main48231-30A20iGRS181,183200312-200802

48231BSPRING, COIL, REAR LH

main48231-30A00iGRS180,182..ROY,ROYEX,ROYG200312-200802

main48231-30A10iGRS180,184..ATH200312-200802

main48231-30A20iGRS181,183200312-200802

48257AINSULATOR, REAR COIL SPRING, LOWER

main48158-30020iGRS18#200312-200802

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-30070iGRS18#200312-200802

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-30070iGRS18#200312-200802

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-30110iGRS18#200312-200802

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-30110iGRS18#200312-200802

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-30020iUZS18#200312-200802

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-30040iGRS18#200312-200802

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80123iGRS180,182..ROY,ROYEX,ROYG200312-200609

main48530-80124iGRS180,182..ATH200312-200505

sub48530-80344

main48530-80125iGRS181,183200312-200609

sub48530-80621

main48530-80344iGRS180,182..ATH200506-200609

sub48530-80491

main48530-80417iGRS181,183200609-200802

sub48530-80620

main48530-80418iGRS180,184..ATH200609-200712

sub48530-80488

main48530-80419iGRS180,182..ROY,ROYEX,ROYG200609-200802

main48530-80488iGRS180,184..ATH200712-200802

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021iGRS18#200312-200802

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01089iGRS18#200312-200609

main90948-01092iGRS18#200609-200802

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main90948-01090iGRS18#200312-200609

main90948-01093iGRS18#200609-200802

48539BRACKET, ACTUATOR SUPPORT, RR

main48539-30030iGRS180,184..ATH200312-200802

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80123iGRS180,182..ROY,ROYEX,ROYG200312-200609

main48530-80124iGRS180,182..ATH200312-200505

sub48530-80344

main48530-80125iGRS181,183200312-200609

sub48530-80621

main48530-80344iGRS180,182..ATH200506-200609

sub48530-80491

main48530-80417iGRS181,183200609-200802

sub48530-80620

main48530-80418iGRS180,184..ATH200609-200712

sub48530-80488

main48530-80419iGRS180,182..ROY,ROYEX,ROYG200609-200802

main48530-80488iGRS180,184..ATH200712-200802

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-30090iGRS180,184..ATH200312-200802

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-30090iGRS180,182..ATH200312-200802

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-30090iUZS18#200406-200606

main48705-30100iGRS18#200312-200802

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48706-30090iUZS18#200406-200606

main48706-30100iGRS18#200312-200802

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-30200iGRS18#200312-200802

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-30200iGRS18#200312-200802

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-30120iGRS18#200312-200802

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-30120iGRS18#200312-200802

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-30150iGRS18#200312-200802

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-12127iGRS18#200312-200802

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-12050iGRS18#200312-200802

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-30150iGRS18#200312-200802

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-12127iGRS18#200312-200802

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-12050iGRS18#200312-200802

48770JARM ASSY, UPPER CONTROL, REAR NO.1

main48770-30080iGRS18#..ROY,ROYEX,ROYG200312-200802

main48770-30090iGRS180,181,184..ATH200312-200802

sub48770-30110

48790DARM ASSY, UPPER CONTROL, REAR NO.2

main48790-30090iUZS18#200312-200802

main48790-30100iGRS180,181,182..ATH200312-200802

48812BAR, STABILIZER, REAR

main48812-30380iGRS181;GRS180,182,183..ROY,ROYEX,ROYG200312-200802

main48812-30390iGRS180,182..ATH200312-200802

main48812-30400iUZS18#200406-200606

48818BUSH, STABILIZER, REAR

main48818-30160iGRS181;GRS180,182,183..ROY,ROYEX,ROYG200312-200802

main48818-30170iGRS180,182..ATH200312-200802

main48818-30180iUZS18#200406-200606

48824RBRACKET, STABILIZER(FOR REAR)

main48832-30060iUZS18#200312-200802

48830ANUT(FOR REAR STABILIZER LINK)

main90179-12151iGRS18#200312-200802

48830DLINK ASSY, REAR STABILIZER, RH

main48830-30090iGRS18#200312-200802

48840ALINK ASSY, REAR STABILIZER, LH

main48830-30090iGRS18#200312-200802

8414

8418

8419

9011012009

main90110-12009

9017012030

main90170-12030

9017712001

main90177-12001

9017810014

main90178-10014

9017914044

main90179-14044

9017914068

main90179-14068

91551G0875

main91551-G0875

9155611475

main91556-11475

9155611485

main91556-11485

91672G1265

main91672-G1265

91672G1485

main91672-G1485

9167480814

main91674-80814

9167480820

main91674-80820

9415120801

main94151-20801

9415121200

main94151-21200

9415121401

main94151-21401

9462251400

main94622-51400

59 parts on this diagram · 2 diagrams in section
