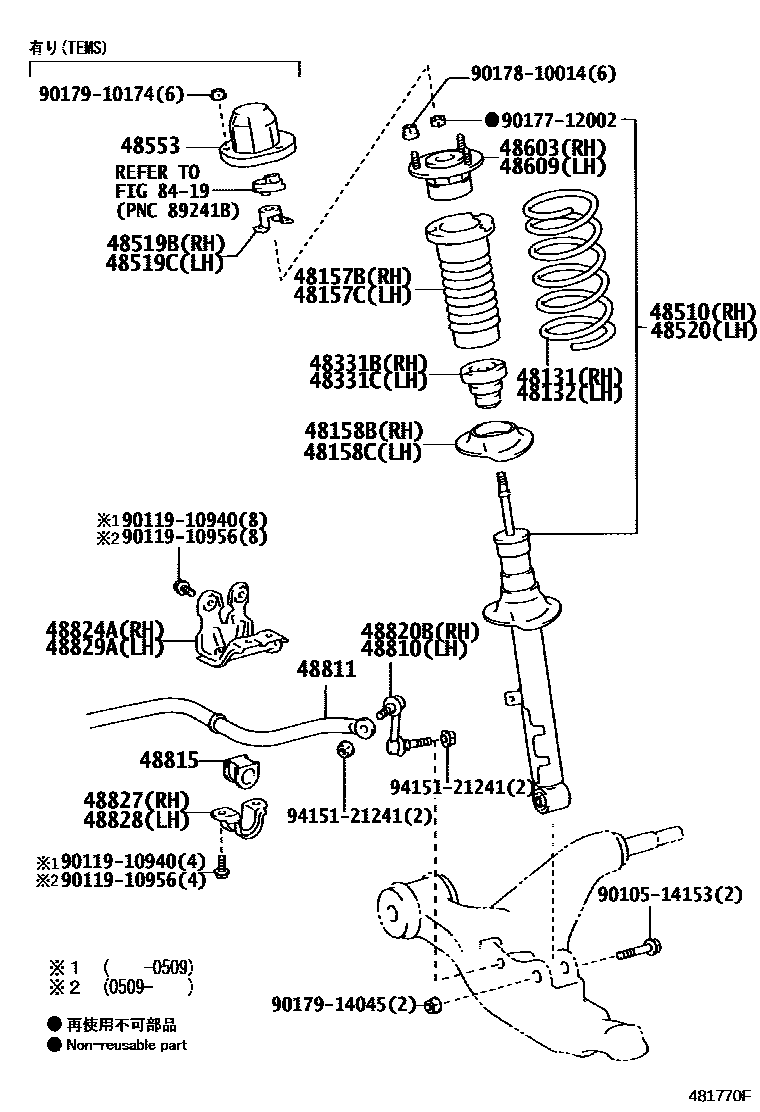

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1

48131SPRING, FRONT COIL, RH

main48131-30A00iGRS180,182..ROY,ROYEX,ROYG200509-200802

main48131-30A10iGRS180,184..ATH200509-200802

main48131-30A20iGRS181,183200509-200802

sub48131-30A21

48132SPRING, FRONT COIL, LH

main48131-30A00iGRS180,182..ROY,ROYEX,ROYG200509-200802

main48131-30A10iGRS180,182..ATH200312-200509

main48131-30A20iGRS181,183200312-200509

sub48131-30A21

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-30250iGRS180,182200312-200509

main48157-30260iGRS181,183200609-200802

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-30250iGRS180,182200312-200509

main48157-30260iGRS181,183200312-200509

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-30020iGRS18#200312-200509

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-30020iGRS18#200312-200509

48331BBUMPER, FRONT SPRING, RH

main48331-30170iGRS180,182200312-200509

main48331-30180iGRS181,183200312-200509

main48331-30210iGRS180,182,184200609-200802

main48331-30220iGRS181,183200609-200802

48331CBUMPER, FRONT SPRING, LH

main48331-30170iGRS180,182,184200509-200609

main48331-30180iGRS181,183200312-200509

main48331-30210iGRS180,182,184200609-200802

main48331-30220iGRS181,183200609-200802

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80121iGRS180,182..ROY,ROYEX,ROYG200312-200509

main48510-80122iGRS180,182..ATH200312-200506

main48510-80123iGRS181,183200312-200509

main48510-80305iGRS180,184..ATH200509-200712

main48510-80408iGRS180,182..ROY,ROYEX,ROYG200712-200802

main48510-80409iGRS181,183200712-200802

sub48510-80558

main48510-80444iGRS180,184..ATH200712-200802

48519BBRACKET, ACTUATOR SUPPORT, FRONT RH

main48519-30030iGRS180,184..ATH200509-200802

48519CBRACKET, ACTUATOR SUPPORT, FRONT LH

main48519-30030iGRS180,184..ATH200509-200802

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80008iGRS180,182..ROY,ROYEX,ROYG200312-200509

main48520-80009iGRS180,182..ATH200312-200506

main48520-80010iGRS181,183200509-200712

main48520-80088iGRS180,184..ATH200509-200712

main48520-80161iGRS180,182..ROY,ROYEX,ROYG200712-200802

main48520-80162iGRS181,183200712-200802

sub48520-80280

main48520-80188iGRS180,184..ATH200712-200802

48553CAP, SHOCK ABSORBER, UPPER

main48553-30100×2iGRS180,182..ATH200312-200509

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-30060iGRS180,182..ROY,ROYEX,ROYG200509-200802

sub48609-30061

main48609-30070iGRS180,184..ATH200509-200802

main48609-30080iGRS181,183200509-200608

sub48609-30081

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-30060iGRS180,182..ROY,ROYEX,ROYG200312-200509

sub48609-30061

main48609-30070iGRS180,182..ATH200312-200509

main48609-30080iGRS181,183200312-200509

sub48609-30081

48810LINK ASSY, FRONT STABILIZER, LH

main48810-30070iGRS180,182,184200509-200802

main48810-30080iUZS187200606

48811BAR, STABILIZER, FRONT

main48811-30620iUZS186200606-200812

main48811-30630iGRS181,183200312-200509

sub48811-30750

main48811-30640iUZS186200406-200606

sub48811-30760

main48811-30650iUZS187200406-200606

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-30550×2iGRS180,182200312-200504

main48815-30551×2iGRS18#200505-200509

main48815-30560×2iUZS18#200406-200501

main48815-30561×2iUZS18#200502-200606

main48815-30610×2iGRS181,183200312-200504

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-30090iUZS186200606

main48820-30100iGRS181,183200509-200802

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-30060iGRS180,182200312-200509

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-30130iGRS180,182200312-200509

main48824-30140iGRS181,183200509-200802

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48824-30130iGRS180,182,184200509-200802

main48824-30140iUZS187200606

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48809-30060iGRS180,182,184200509-200802

8419

9010514153

main90105-14153

9011910940

main90119-10940

9011910956

main90119-10956

9017712002

main90177-12002

9017810014

main90178-10014

9017910174

main90179-10174

9017914045

main90179-14045

9415121241

main94151-21241

32 parts on this diagram · 4 diagrams in section
