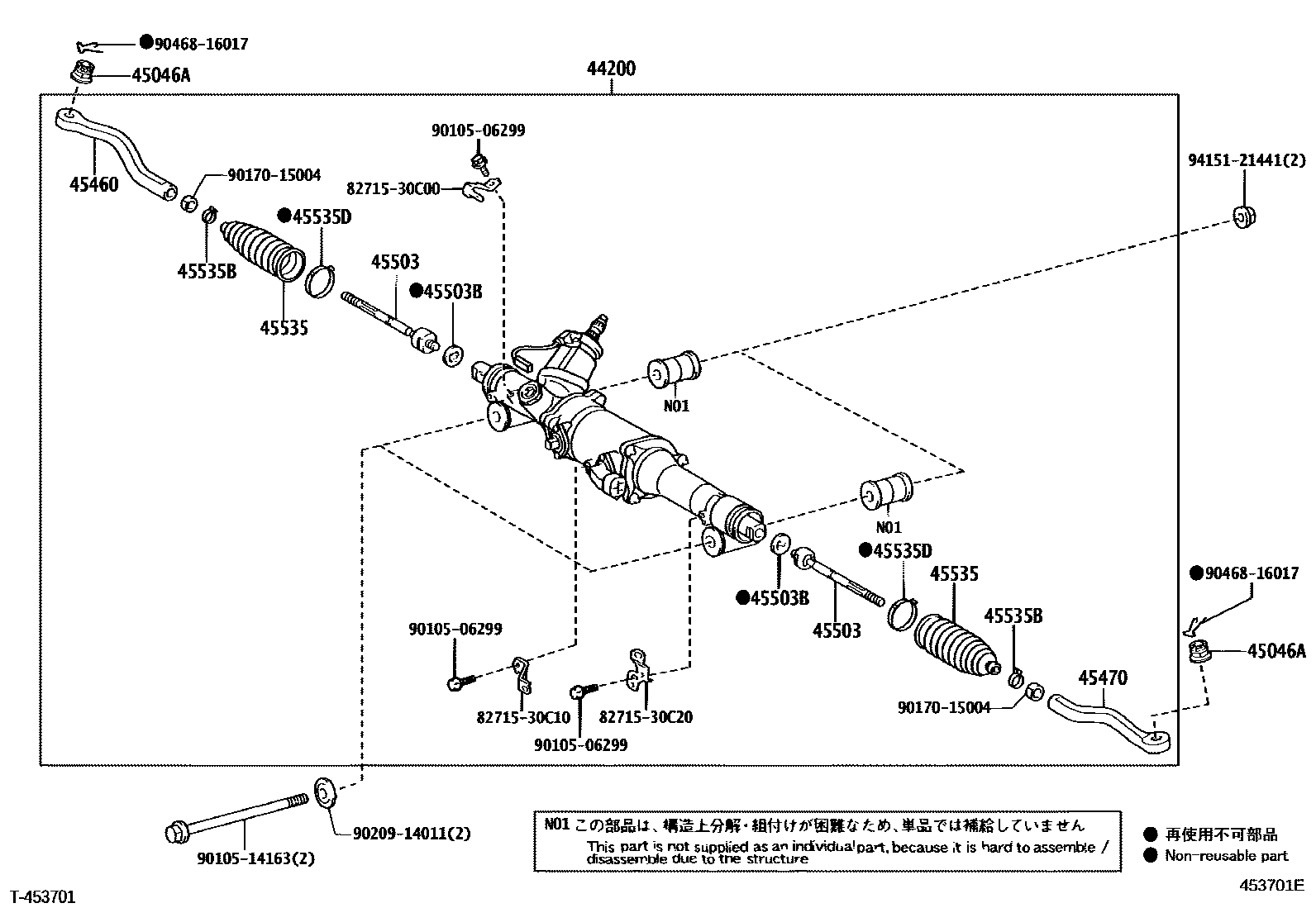

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-30300iGRS180..5FC;GRS182,UZS186200312-200601

main44200-30301iGRS180,182,184200602-200607

main44200-30302iUZS186200608-200802

main44200-30310iUZS187200312-200608

main44200-30311iGRS181,183200602-200607

main44200-30312iGRS181,183200608-200802

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iGRS180,182200312-200802

main90178-12017iUZS187200312-200802

45460ROD ASSY, TIE, RH

main45460-39715iGRS181,183200312-200802

main45463-30130iGRS180,182,184200312-200802

45470ROD ASSY, TIE, LH

main45464-30060iGRS180,182200312-200802

main45470-39255iGRS181,183200312-200802

45503END SUB-ASSY, STEERING RACK

main45503-30070iGRS180,182200312-200802

main45503-30080iGRS181,183200312-200802

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14011iGRS18#200312-200802

45535BOOT, STEERING RACK, NO.1

main45535-30030iGRS18#200312-200802

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iGRS18#200312-200802

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iGRS18#200312-200802

8271530C00BRACKET,WIRING HARNESS CLAMP

main82715-30C00

8271530C10BRACKET,WIRING HARNESS CLAMP

main82715-30C10

8271530C20BRACKET,WIRING HARNESS CLAMP

main82715-30C20

9010506299

main90105-06299

9010514163

main90105-14163

9017015004

main90170-15004

9020914011

main90209-14011

9046816017

main90468-16017

9415121441

main94151-21441

18 parts on this diagram · 2 diagrams in section
