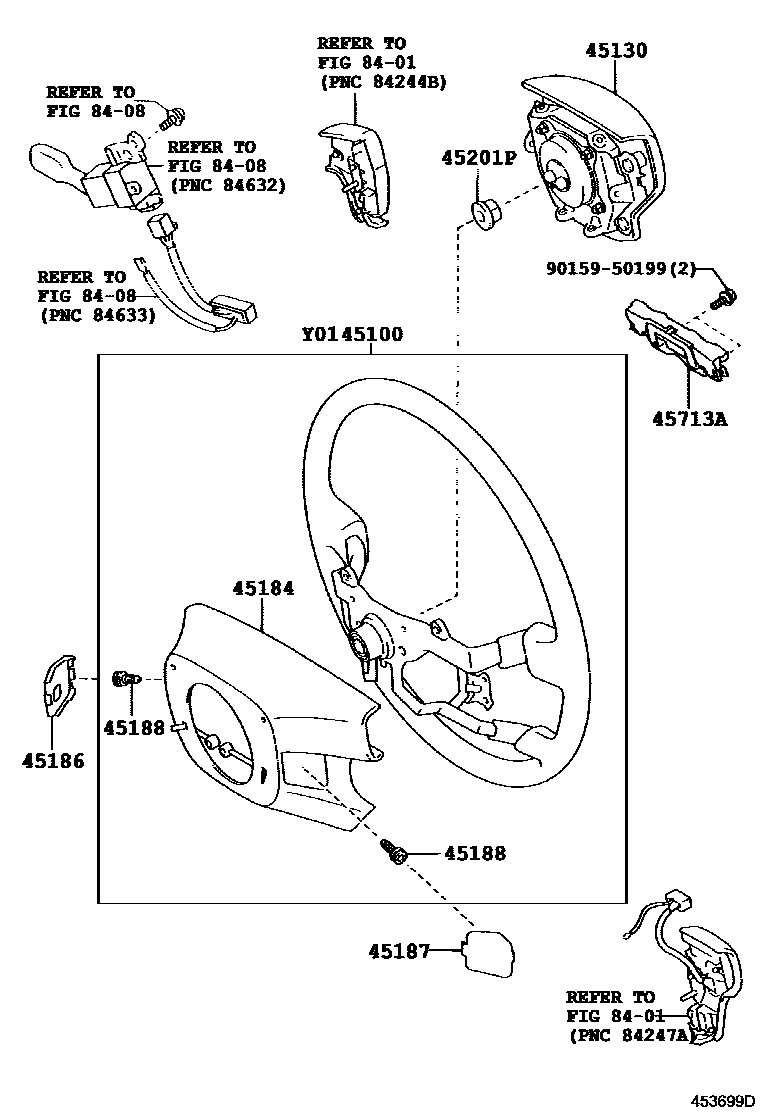

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-30600-C0supersedes 45100-30490-C0iGRS180,181,184..ATH; GRS180,181..ROYEX; GRS180,182,183..ROY,ROYG200509-200802

main45100-30600-E0supersedes 45100-30490-E0iGRS180,181..ROYEX; GRS180,182,183..ROY,ROYG200312-200509

main45100-3A420-C1iUZS18#..C; UZS186..A200606-200812

main45100-3A420-E1iUZS18#200406-200606

main45100-3A420-E2iUZS18#200606-200812

main45100-30490-C0iGRS180,181..ROYEX; GRS183200509-200802

main45100-30490-E0iGRS180,181..ROYEX; GRS183200312-200509

main45100-3A420-C2supersedes 45100-3A420-C1iUZS18#..C200606

45130BUTTON ASSY, HORN

main45130-30350-C0iGRS18#..ROY,ROYEX,ROYG200312-200509

BLACK,TRIM1#

main45130-30350-E0iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

ORCHID BROWN,TRIM0#

main45130-30640-C0iGRS180,181,182..ATH200312-200509

BLACK,TRIM1#,2#

main45130-30650-C0iUZS18#200406-200606

BLACK,TRIM2#

main45130-30650-E0iUZS18#200606

ORCHID BROWN,TRIM0#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-30350-C0iGRS180,181,182,183..ROY,ROYEX,ROYG; GRS180,181,184..ATH200509-200802

BLACK,TRIM1#; BLACK,TRIM1#,2#

main45184-30350-E0iUZS18#200406-200606

ORCHID BROWN,TRIM0#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-30130-C0iGRS180,181,182,183..ROY,ROYEX,ROYG; GRS180,181,184..ATH200509-200802

BLACK,TRIM1#; BLACK,TRIM1#,2#

main45186-30130-E0iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

ORCHID BROWN,TRIM0#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-30080-C0iGRS18#..ROY,ROYEX,ROYG; GRS180,181,182..ATH200312-200509

BLACK,TRIM1#; BLACK,TRIM1#,2#

main45187-30080-E0iUZS18#200406-200606

ORCHID BROWN,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iGRS18#200312-200509

45201PNUT, STEERING WHEEL SET

main90179-12071iUZS18#200406-200606

45713ADAMPER, STEERING SHAKE

main45713-30150iGRS18#200312-200509

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

11 parts on this diagram · 1 diagram in section
