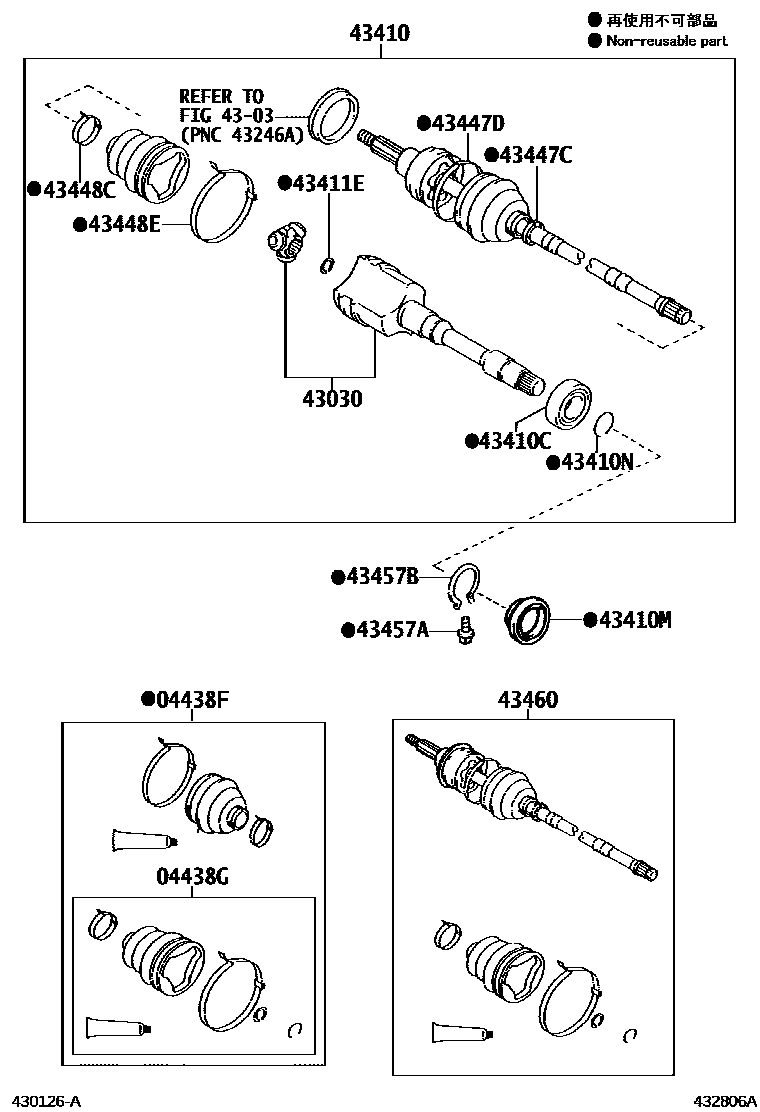

FRONT DRIVE SHAFT

0001 1������ 0002 1�������

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-30010iGRS181,183200509-200802

sub04427-30080

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-30070iGRS181,183200312-200509

sub04437-30071

4303

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-30020iGRS181,183200312-200509

main43030-30030iUZS187200606

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-30020iGRS181,183200509-200802

sub43410-30021

main43410-30030iUZS187200406-200606

sub43410-30031

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36001iGRS181,183200509-200802

sub90363-36004

main90363-36010iUZS187200806

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35030iGRS181,183,UZS187200312-200606

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iGRS181,183200312-200509

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-20065iGRS181,183200312-200509

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-22030iGRS181,183200312-200509

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-22040iGRS181,183200312-200509

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01804iGRS181,183200312-200509

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01803iGRS181,183200312-200509

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90901-19060iGRS181,183200312-200509

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90520-65002iGRS181,183200312-200509

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-39215iGRS181,183200312-200509

sub43460-39216

16 parts on this diagram · 2 diagrams in section
