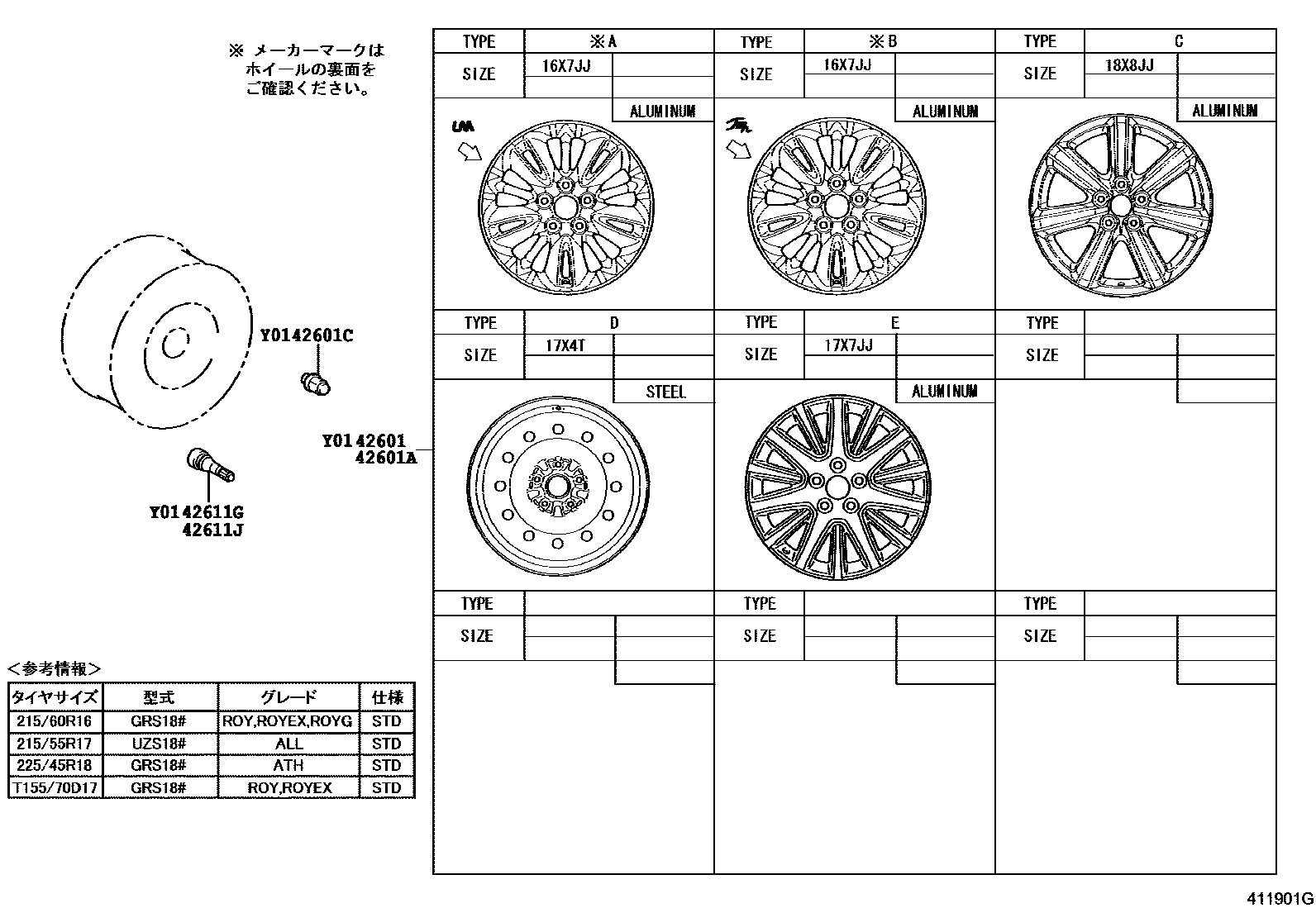

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-30A00×4iGRS18#..ROY,ROYEX,ROYG200312-200509

main42611-30A10×4iGRS180,181,182,183..ROY,ROYEX,ROYG200509-200802

main42611-30A20×4iUZS18#200406-200606

main42611-30A30×4iGRS180,181,184..ATH200509-200802

main42611-30A80×4iGRS181..ROYEX;GRS180,182,183..ROY; GRS181..ROYEX;GRS180,182..ROY200704-200802

main42611-30A90×4supersedes 42611-30A30iGRS180,181,182..ATH200501-200509

42601AWHEEL, DISC (FOR SPARE)

main42611-30A00iGRS18#..ROY,ROYEX; GRS182..ROYG200312-200509

main42611-30A10supersedes 42611-50090iGRS18#..ROY,ROYEX; GRS182..ROYG200312-200509

main42611-30A20iUZS18#200406-200606

main42611-30A30iGRS180,181,184..ATH200509-200802

main42611-30A80iGRS181..ROYEX;GRS180,182..ROY200704-200802

main42611-30A90supersedes 42611-30A30iGRS180,181,182..ATH200501-200509

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iGRS180,181..5FC;GRS182,183,UZS18#200312-200606

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iGRS18#200509-200802

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iGRS180,181..5FC;GRS182,183,UZS18#200312-200606

5 parts on this diagram · 3 diagrams in section
