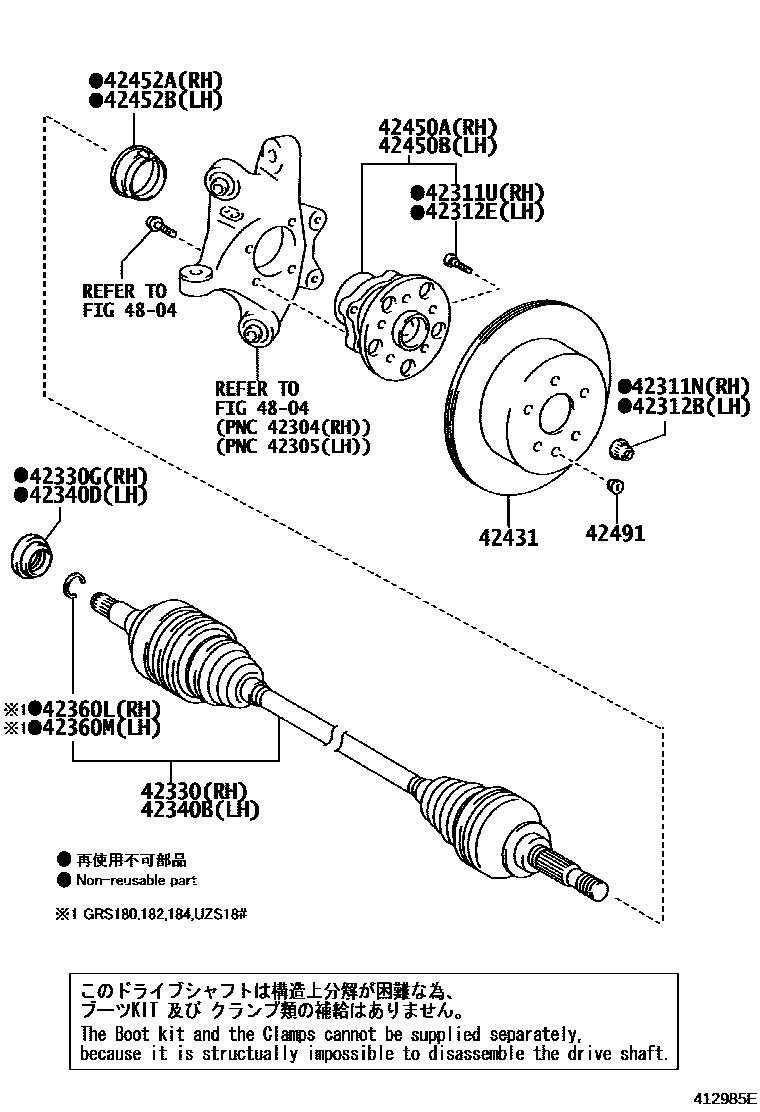

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iGRS18#200312-200509

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02070×5iUZS18#200406-200606

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iUZS18#200606

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02070×5iGRS18#200312-200509

42330SHAFT ASSY, REAR DRIVE, RH

main42330-30140iGRS181,183200509-200802

main42330-30150iGRS180,182200509-200802

main42330-30160iGRS184200509-200802

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-38071iGRS181,183200509-200802

main90311-43001iGRS180,182200312-200412

main90311-43009iGRS180,182200412-200509

main90311-47015iUZS18#200406-200606

main90311-47018iGRS184200707-200802

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-30140iGRS181,183200509-200802

main42340-30150iGRS180,182200509-200802

main42340-30160iUZS18#200406-200606

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-38071iGRS181,183200312-200509

main90311-43001iGRS180,182200312-200412

main90311-43009iGRS180,182200412-200509

main90311-47015iUZS18#200606-200707

main90311-47019iUZS18#200707-200812

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003iGRS180..5FC;GRS182,UZS18#200312-200606

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003iGRS180..5FC;GRS182,UZS18#200312-200606

42431DISC, REAR

main42431-30280×2iGRS18#..ROY,ROYEX,ROYG200312-200509

main42431-30290×2iGRS180,181,182..ATH200312-200509

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-30020iUZS18#200406-200606

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-30020iGRS18#200312-200509

42452ADEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH

main42451-30020iGRS18#200312-200509

42452BDEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH

main42451-30020iGRS18#200312-200509

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010×2iGRS18#200312-200509

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

17 parts on this diagram · 1 diagram in section
