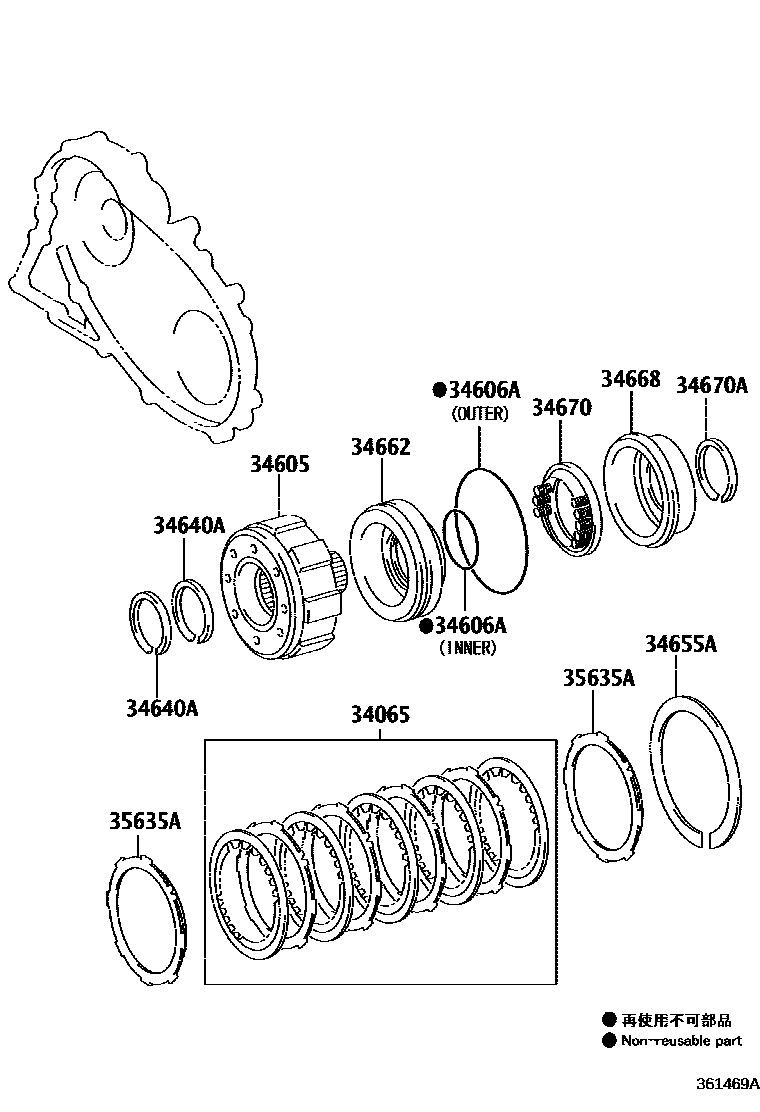

TRANSFER DIRECT CLUTCH, LOW BRAKE & SUPPORT

34065DISC SET, CENTER DIFFERENTIAL CLUTCH

main34065-30010iUZS187200606

34605DRUM SUB-ASSY, TRANSFER DIRECT CLUTCH

main34605-30010iGRS181,183200509

34606ARING, O (FOR TRANSFER DIRECT CLUTCH PISTON)

main90301-56004iGRS181,183200312-200509

main90301-99058iUZS187200406-200606

34640ARING, SEAL(FOR TRANSFER CENTER SUPPORT)

main35617-30030×2iGRS181,183,UZS187200312-200606

34655ARING, SNAP (FOR TRANSFER DIRECT CLUTCH FLANGE)

main90521-99001iGRS181,183,UZS187200312-200606

34662PISTON, CENTER DIFFERENTIAL CLUTCH

main34662-30010iUZS187200606

34668BALANCER, CENTER DIFFERENTIAL CLUTCH PRESSURE

main34668-30010iGRS181,183200312-200509

34670SPRING ASSY, TRANSFER DIRECT CLUTCH RETURN

main34670-30010iGRS181,183200312-200509

34670ARING, SNAP (FOR TRANSFER DIRECT CLUTCH RETURN SPRING)

main90520-53002iGRS181,183200312-200509

35635AFLANGE, CENTER DIFFERENTIAL CLUTCH DISC

main35635-30070iGRS181,183200312-200509

main35635-30080iUZS187200606

main35635-30090×2iUZS187200606

10 parts on this diagram · 1 diagram in section
