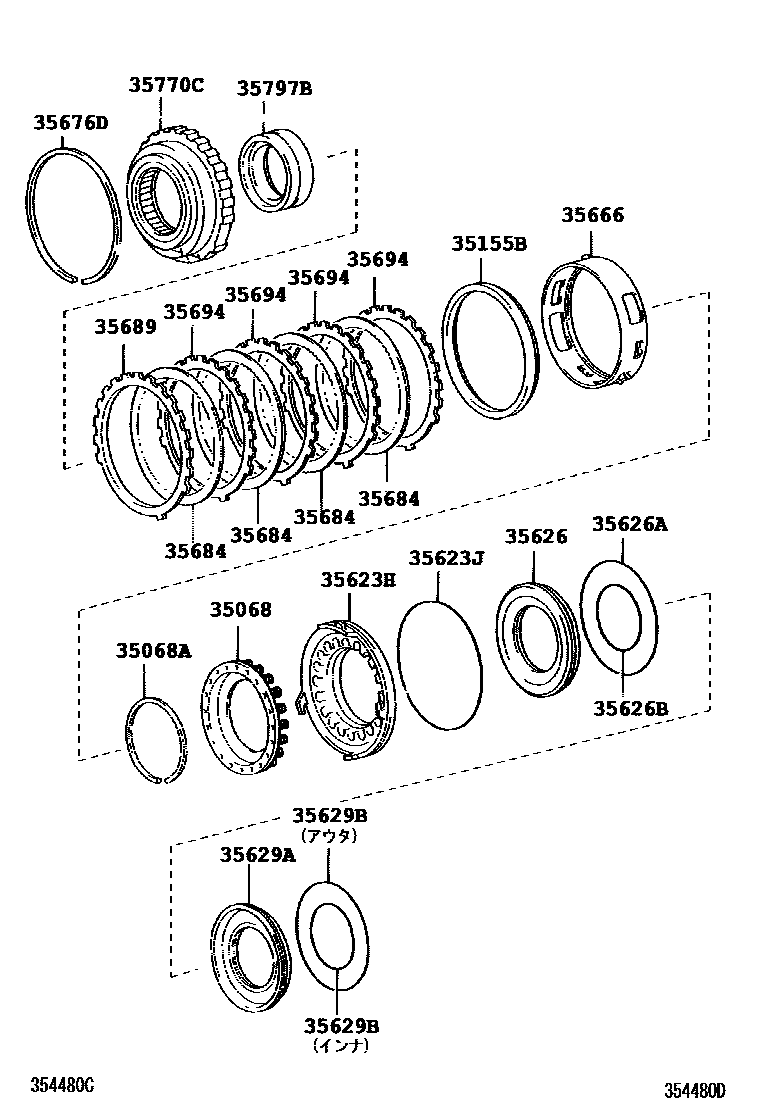

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A750E,A750H,A760E,A760H,A761E0004 1A960E

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-22010iGRS180,182200509-200802

main35068-60010iUZS18#200312-200606

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-52262iGRS180,182200509-200802

main90520-61001iUZS18#200312-200606

35155BSLEEVE, REAR COVER

main35155-50010iGRS18#200312-200509

35623HPISTON, 1ST & REVERSE BRAKE

main35623-22030iGRS180,182200509-200802

main35623-50030iUZS18#200312-200606

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iGRS18#200312-200509

main90301-99151iGRS180,182200509-200802

35626SLEEVE, BRAKE REACTION

main35626-22020iGRS180,182200509-200802

main35626-50010iUZS18#200312-200606

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99144iGRS18#200312-200509

main90301-99155iGRS180,182200509-200802

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-69009iGRS180,182200509-200802

main90301-79003iGRS18#200312-200509

35629APISTON, BRAKE, NO.4

main35629-22030iGRS180,182200509-200802

main35629-50020iGRS18#200312-200509

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-56007iGRS180,182200509-200802

main90301-67006iGRS181,183,184200509-200802

main90301-94004iGRS180,182200509-200802

main90301-99084iGRS181,183,184200509-200802

35666TUBE, BRAKE APPLY

main35666-22020iGRS180,182200509-200802

main35666-50010iUZS18#200312-200606

35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)

main90521-99131iUZS18#200606

main90521-99133iGRS180,182200509-200802

35684DISC, BRAKE, NO.4

main35684-22010×5iGRS180,182200509-200802

main35684-50010×4iGRS18#200312-200509

35689FLANGE, BRAKE, NO.4

main35689-22020iGRS180,182200509-200802

main35689-22030iGRS180,182200509-200802

main35689-22040iGRS180,182200509-200802

main35689-22050iGRS180,182200509-200802

main35689-22060iGRS180,182200509-200802

main35689-22070iGRS180,182200509-200802

main35689-22080iGRS180,182200509-200802

main35689-22090iGRS180,182200509-200802

main35689-60100iUZS18#200606

main35689-60110iUZS18#200606

main35689-60120iUZS18#200606

main35689-60130iUZS18#200312-200606

main35689-60140iGRS181,183,184200509-200802

main35689-60150iGRS18#200312-200509

main35689-60160iUZS18#200312-200606

main35689-60170iUZS18#200312-200606

35694PLATE, BRAKE, NO.4

main35694-22010×4iGRS180,182200509-200802

main35694-60010×4iGRS18#,UZS18#200312-200409

main35694-60011×4iUZS18#200606

35770CCLUTCH ASSY, 1WAY NO.3

main35770-22070iGRS180,182200509-200802

main35770-50010iUZS18#200312-200606

35797BRACE, 1 WAY CLUTCH, INNER

main35797-22030iGRS180,182200509-200802

main35797-50030iGRS180,181..5FC;GRS182,183,UZS18#200312-200601

main35797-50031iGRS181,183200601-200802

17 parts on this diagram · 2 diagrams in section
