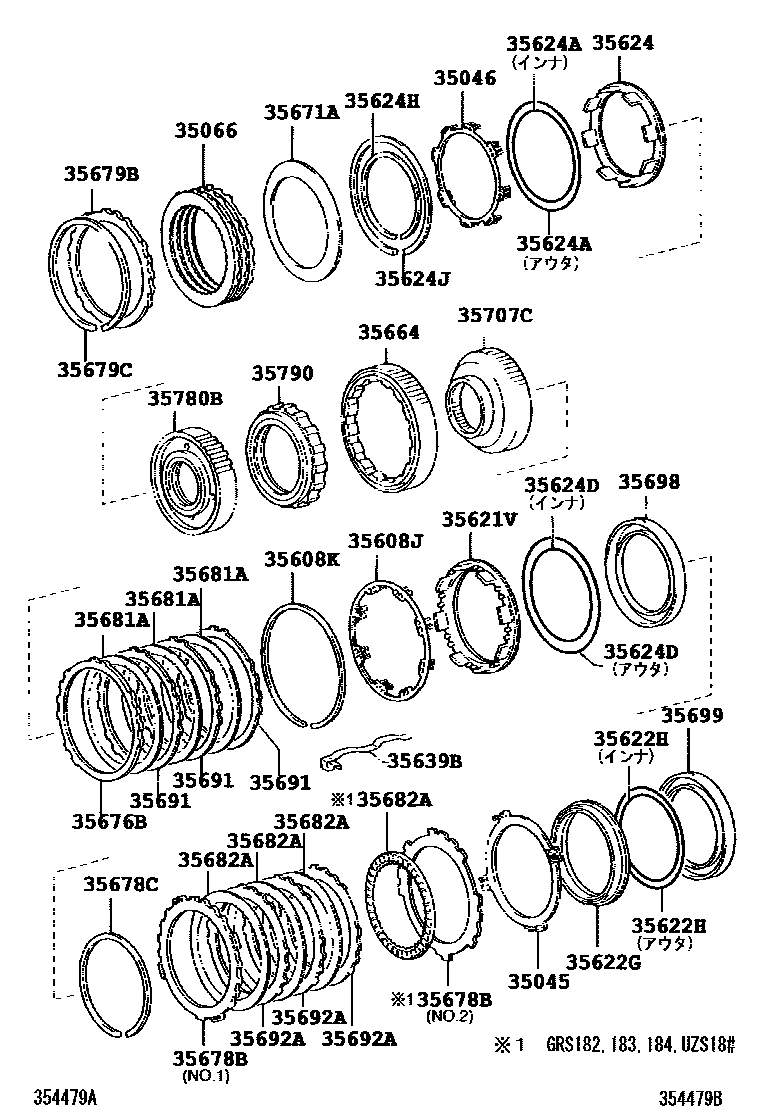

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
35046SPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
35066DISC SET, 2ND BRAKE
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
35622GPISTON, BRAKE, NO.2
35622HRING, O (FOR BRAKE PISTON NO.2)
35624PISTON, 2ND BRAKE
35624ARING, O (FOR 2ND BRAKE PISTON)
35624DRING, O (FOR BRAKE PISTON NO.4)
35624HRING, SNAP (FOR 2ND BRAKE PISTON)
35624JRING, HOLE SNAP (FOR 2ND BRAKE PISTON)
35639BSPRING, BRAKE PLATE STOPPER
35671APLATE, BRAKE CUSHION
35676BFLANGE, BRAKE, NO.1
35678BFLANGE, BRAKE, NO.2
35678CRING, SNAP (FOR BRAKE NO.2)
35679CRING, SNAP (FOR BRAKE NO.3)
35681ADISC, BRAKE, NO.1
35682ADISC, BRAKE, NO.2
35691PLATE, BRAKE, NO.1
35692APLATE, BRAKE, NO.2
35698CYLINDER, BRAKE, NO.1
35707CRACE SUB-ASSY, 1 WAY CLUTCH, INNER
35780BCLUTCH ASSY, 1 WAY N0.2
30 parts on this diagram · 2 diagrams in section
